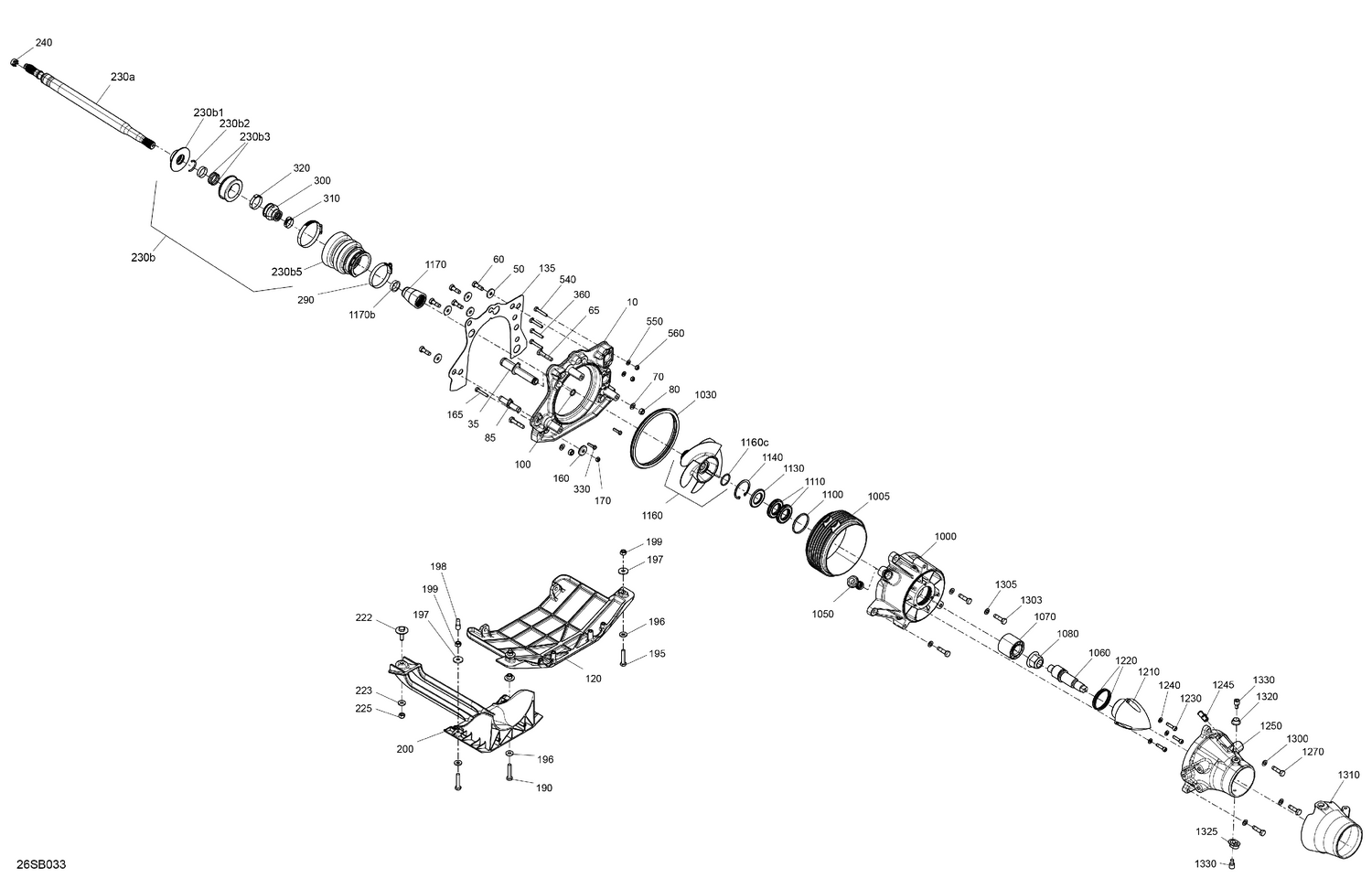

| Ref | Part Number | Description |
|---|
| 10 |
271001956 |
Anodized Pump Support |
| 35 |
271001818 |
Water Straight Fitting, In |
| 50 |
279000336 |
Flat Washer |
| 60 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 65 |
250000230 |
Hex. Screw M8 X 40, Scotch Grip |
| 70 |
234081600 |
Stainless, Flat Washer 8 mm |
| 80 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 85 |
271001817 |
Water Straght Fitting, Out |
| 100 |
293300006 |
O-Ring |
| 120 |
271001840 |
Riding Plate |
| 135 |
271001958 |
Gasket |
| 160 |
271001920 |
Anode Zinc |
| 165 |
207363560 |
Screw Hex. M6 X 35, Scotch Grip |
| 170 |
232561200 |
Brass Elastic Stop Nut M6 |
| 190 |
207184060 |
Hex. Screw M8 X 40 |
| 195 |
207184060 |
Hex. Screw M8 X 40 |
| 196 |
293050001 |
Flat Washer M8.5 x 18 |
| 197 |
279000336 |
Flat Washer |
| 198 |
293000105 |
Cap Plug |
| 199 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 200 |
271002011 |
Pump Grate |
| 222 |
250000967 |
Hex Sems Screw M8 X 30 |
| 223 |
293050001 |
Flat Washer M8.5 x 18 |
| 225 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 230a |
271002205 |
Propeller Shaft |
| 230b1 |
271002206 |
Rotary Ring |
| 230b2 |
271001575 |
C-Clip |
| 230b3 |
293300219 |
O-Ring |
| 230b5 |
271002168 |
Bellow Ass'y |
| 240 |
271002113 |
Drive Shaft Plug |
| 290 |
293650179 |
Tridon Clamp |
| 300 |
271002126 |
Protector Sleeve |
| 310 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 320 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 330 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 360 |
207363560 |
Screw Hex. M6 X 35, Scotch Grip |
| 540 |
207363560 |
Screw Hex. M6 X 35, Scotch Grip |
| 550 |
234061600 |
Stainless Flat Washer M6 |
| 560 |
232561200 |
Brass Elastic Stop Nut M6 |
| 1000 |
267000856 |
Impeller Housing |
| 1005 |
267000925 |
Wear Ring |
| 1030 |
293200134 |
Neoprene Seal |
| 1050 |
267000282 |
Plug |
| 1060 |
267000581 |
Impeller Shaft |
| 1070 |
271002183 |
Angle Bearing |
| 1080 |
250100104 |
Elastic Flange Nut M20 |
| 1100 |
293300090 |
O-Ring |
| 1110 |
271002071 |
Seal |
| 1130 |
293200089 |
Oil Seal |
| 1140 |
293370038 |
Circlip |
| 1160c |
293300044 |
O-Ring |
| 1170b |
Not |
Available As Spare Part - Ring |
| 1210 |
267000769 |
Impeller Cover |
| 1220 |
293300096 |
O-Ring |
| 1230 |
205562560 |
Socket Head Screw M6 X 25, Scotch Grip |
| 1240 |
234061600 |
Stainless Flat Washer M6 |
| 1245 |
267000782 |
Siphon Tube |
| 1250 |
267000909 |
Venturi |
| 1270 |
250000526 |
Hex. Screw M8 X 30, Scotch Grip |
| 1300 |
234080600 |
Flat Washer M8, Stainless |
| 1303 |
250000526 |
Hex. Screw M8 X 30, Scotch Grip |
| 1305 |
234080600 |
Flat Washer M8, Stainless |
| 1310 |
267000705 |
Nozzle |
| 1320 |
293900007 |
Venturi Bushing |
| 1325 |
293900010 |
Plastic Bushing |
