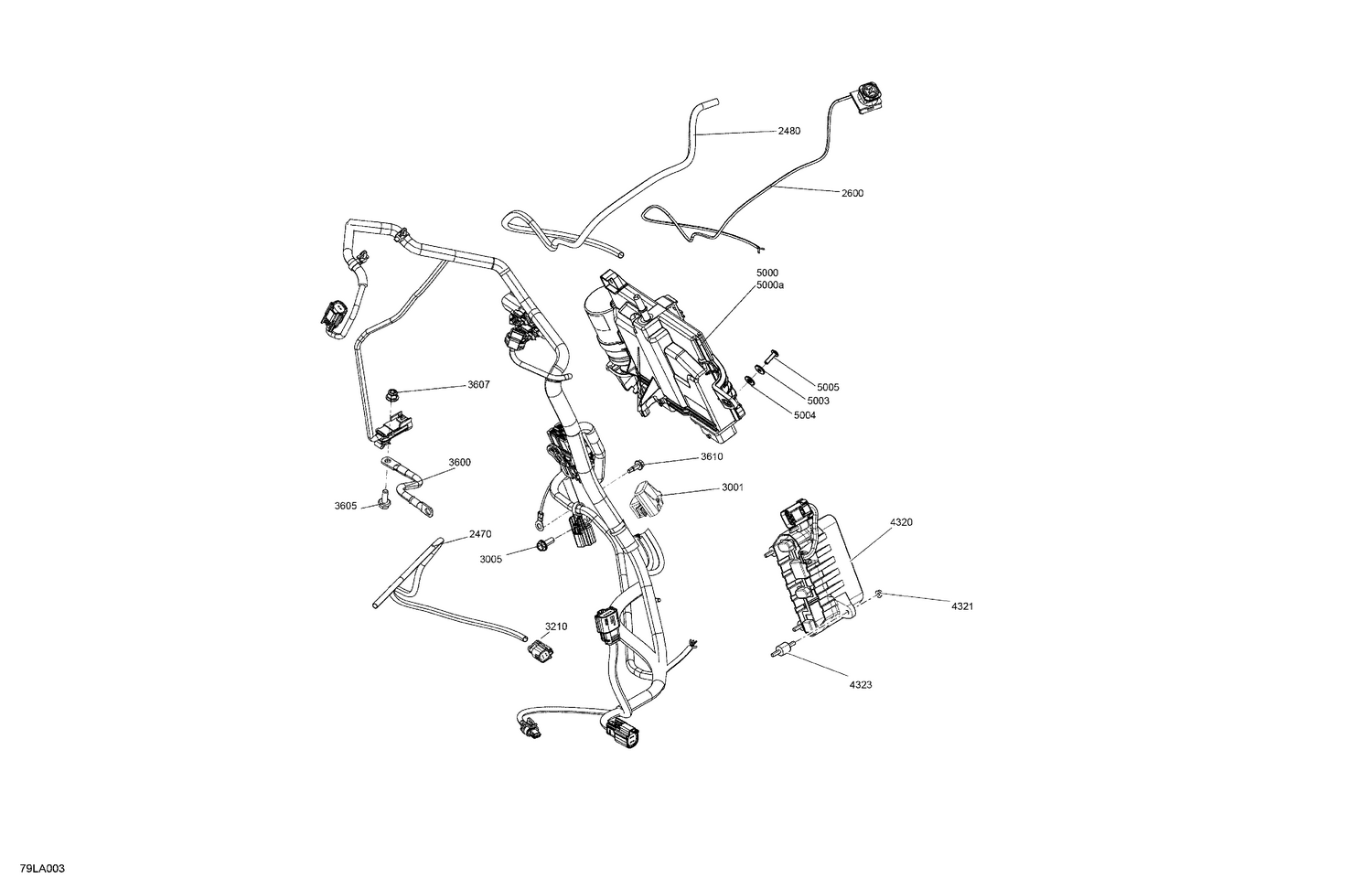

08- Electric - Lower Section - DSHOT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 3001 | 515178435 | Diagnostic Cap |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3600 | 515178248 | Ground Wire |
| 3605 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3607 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4320 | 515178891 | Ultracapacitor Module |
| 4321 | 233151414 | Nut Flange Hex. M5 |
| 4323 | 707000746 | Rubber Mount |
| 5000a | 515177272 | Capacitor |
| 5003 | 250200140 | Washer |
| 5004 | 250200024 | Rubber Washer 5 mm |
