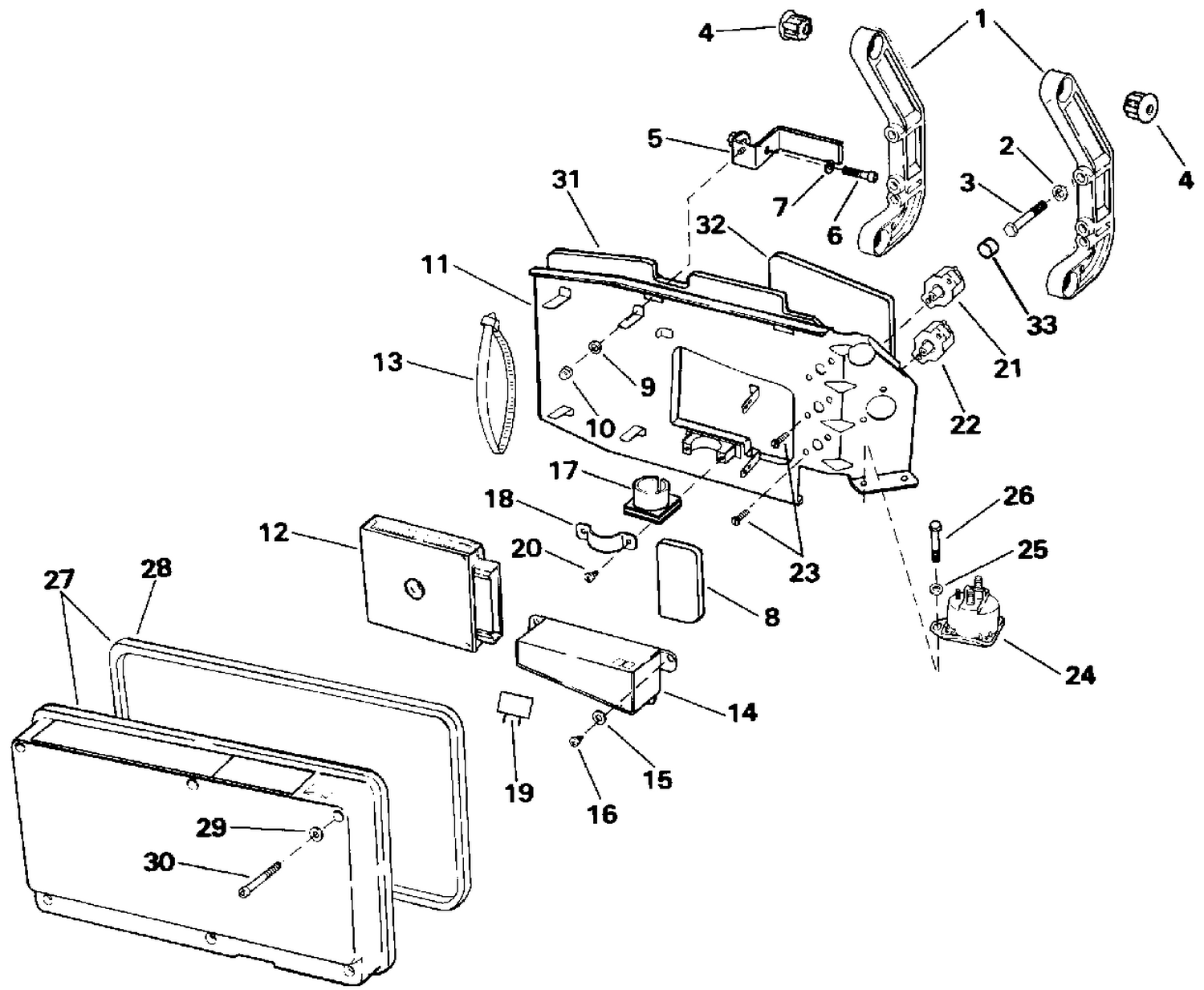

| Ref | Part Number | Description |
|---|
| 1 |
0915661 |
SUPPORT, E-box |
| 2 |
0915501 |
WASHER, Block |
| 3 |
0915535 |
BOLT, Charge piping |
| 4 |
0915663 |
RUBBER MOUNT, Support, e-box |
| 5 |
0915664 |
ADAPTER, Rubber mount to e-box base |
| 6 |
0916047 |
BOLT, Rubber mount adapter |
| 7 |
0915611 |
WASHER, Oil cooler mounting |
| 8 |
0915859 |
MAT, Dampener, relays |
| 9 |
0915470 |
WASHER, Clamp to heatshield |
| 10 |
0915654 |
CAP NUT, E-box base plate |
| 11 |
0987420 |
BASE PLATE ASSY., E-box |
| 12 |
0987421 |
ELECTRONIC GOVERNOR UNIT |
| 13 |
0915666 |
TIE WRAP, Governor unit |
| 14 |
0987422 |
INTERFACE UNIT |
| 15 |
0915667 |
WASHER, Interface unit |
| 16 |
0915668 |
SCREW, Tapping |
| 17 |
0915669 |
GROMMET, Motor cable |
| 18 |
0915670 |
CLAMP, Motor cable |
| 19 |
0915793 |
DIODE |
| 20 |
0915861 |
SCREW, Tapping |
| 21 |
0987704 |
CIRCUIT BREAKER, 50 Amp This part replaces 0913774. |
| 22 |
3854282 |
BREAKER, Fuel pump This part replaces 0986525. |
| 23 |
0333672 |
SCREW , Cable retainer |
| 24 |
0985063 |
SOLENOID |
| 25 |
0915470 |
WASHER, Clamp to heatshield |
| 26 |
0915633 |
BOLT, Cover, timing belt, rear |
| 27 |
0987423 |
COVER ASSY., E-box |
| 28 |
0915671 |
GASKET, Cover, e-box |
| 29 |
0915493 |
WASHER, Boost pressure sender |
| 30 |
0915672 |
BOLT, Cover, e-box |
| 31 |
0915857 |
MAT, Insulation |
| 32 |
0915858 |
MAT, Insulation |
