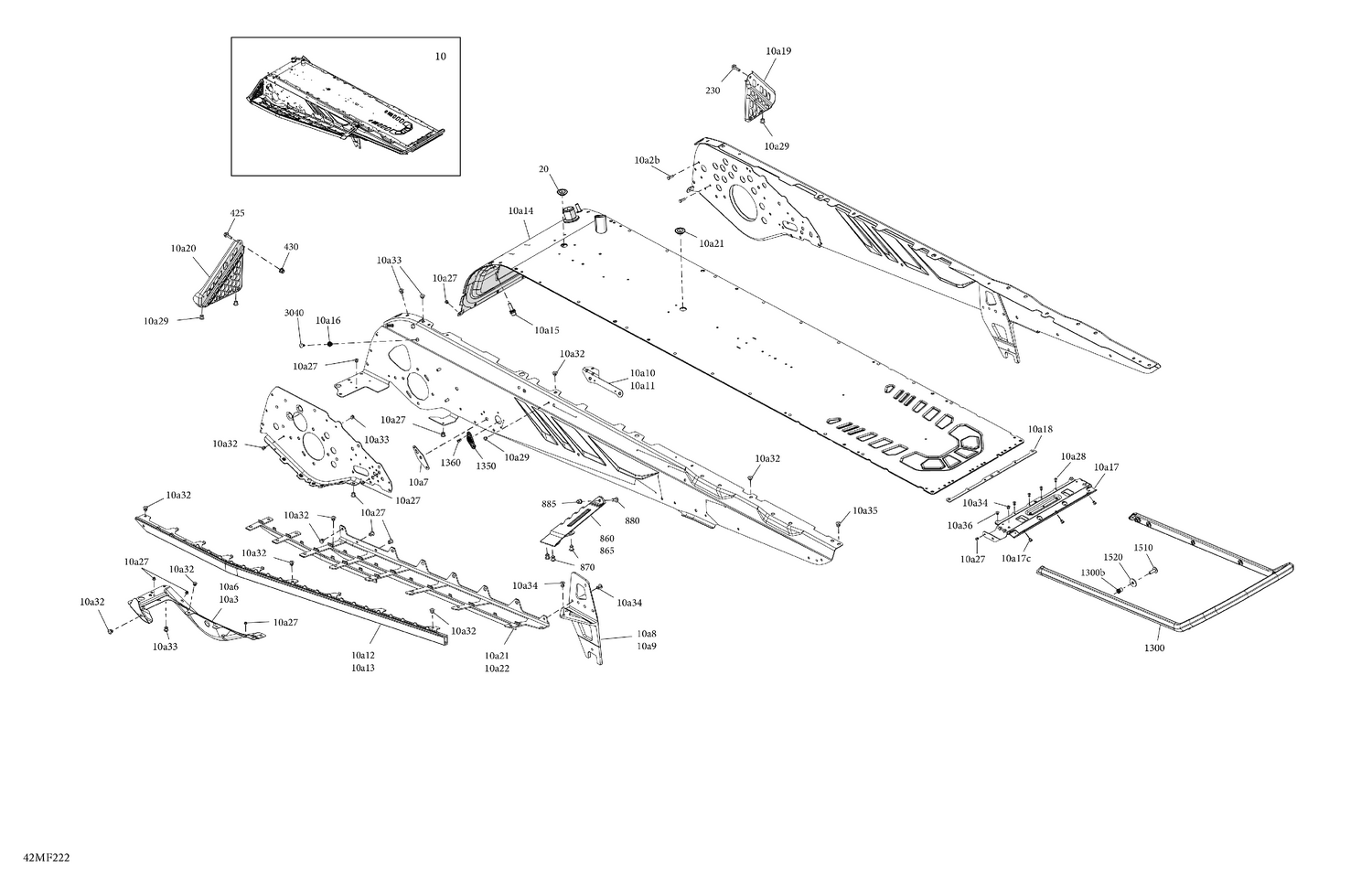

| Ref | Part Number | Description |
|---|
| 10 |
415131044 |
Coastal Gray, Chassis Tunnel Module 154 |
| 10a10 |
518330299 |
LH Member Fixation Plate |
| 10a11 |
518331745 |
RH Under Chassis Reinforcement |
| 10a12 |
518332833 |
RH Formed Boarding Step |
| 10a13 |
518332834 |
LH Formed Boarding Step |
| 10a14 |
518335750 |
Radiator Tunnel 154 |
| 10a15 |
250300652 |
Protruding Stud M8 x 22 |
| 10a16 |
605636003 |
Clinch Nut M6 Hexsert |
| 10a17c |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 10a18 |
518336543 |
Rear Spacer |
| 10a19 |
518332462 |
RH Footrest |
| 10a20 |
518332463 |
LH Footrest |
| 10a21 |
518335287 |
LH Rear Perforated Footstep |
| 10a22 |
518335288 |
RH Rear Perforated Footstep |
| 10a27 |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 10a28 |
293150289 |
Rivet Ornit 4.8 X 14 |
| 10a29 |
293150313 |
Rivet Ornit 4,8 X 8,8 |
| 10a2b |
250300027 |
Clinch Stud M6 X 20 |
| 10a3 |
518332455 |
RH Footrest Reinforcement |
| 10a32 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a33 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10a34 |
293150271 |
Rivet Ornit 6,5 X 10.5 |
| 10a35 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a36 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 10a6 |
518332456 |
LH Footrest Reinforcement |
| 10a7 |
518335959 |
Front Suspension Arm Reinforcement |
| 10a8 |
518335956 |
LH Rear Suspension Support |
| 10a9 |
518335957 |
RH Rear Suspension Support |
| 20 |
293730052 |
Black, Plug |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 860 |
518336979 |
Coastal Gray, RH Rear Footrest Reinforcement |
| 865 |
518336978 |
Coastal Gray, LH Rear Footrest Reinforcement |
| 870 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 880 |
250001367 |
Socket Head Screw M6 X 16 |
| 885 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 1300b |
293450275 |
Insert |
| 1350 |
518335954 |
Trim Cap |
| 1360 |
293150289 |
Rivet Ornit 4.8 X 14 |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 3040 |
293730079 |
Dart |
