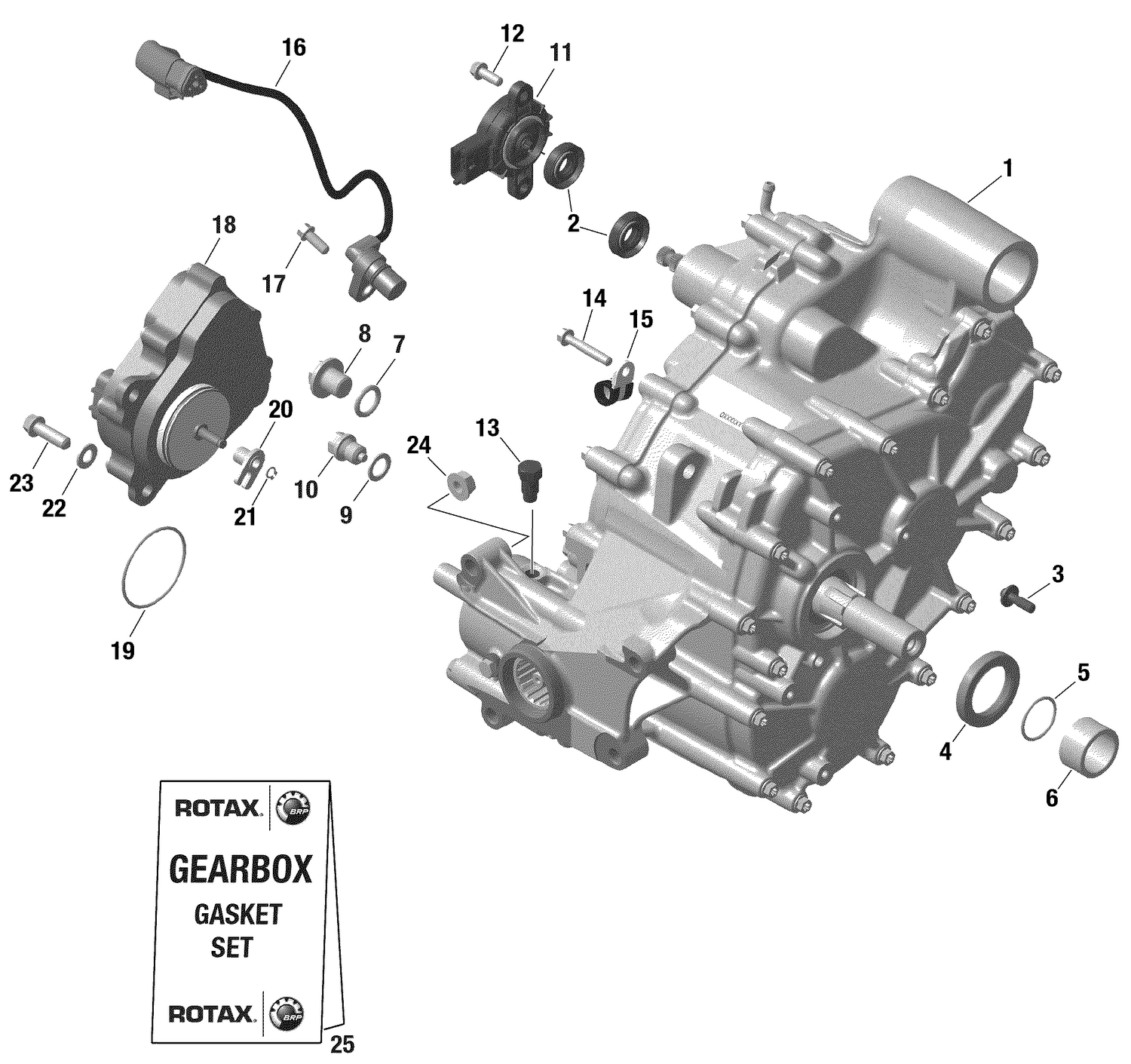

01- ROTAX - GearBox And Components
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420686568 | Gear Box Ass'y |
| 2 | Not | Available for this Vehicle |
| 3 | Not | Available for this Vehicle |
| 4 | Not | Available for this Vehicle |
| 5 | Not | Available for this Vehicle |
| 6 | Not | Available for this Vehicle |
| 8 | 420241662 | Plug Screw M14 X 1.5 |
| 10 | 420241787 | Magnetic Drain Plug M12 |
| 11 | 420266168 | Angle Rotation Sensor |
| 12 | 420440162 | Torx Flange Screw M6 X 16 |
| 13 | 420241905 | Plug Screw M10X10 |
| 14 | XXX | Not Available As Spare Parts |
| 15 | 420251692 | Cable Clamp |
| 16 | 420265727 | Camshft Position Sensor Ass'y This part replaces 420265722. |
| 17 | 420440162 | Torx Flange Screw M6 X 16 |
| 19 | 293300117 | O-Ring |
| 20 | 415129175 | Shifting Fork |
| 21 | 293370042 | Circlip |
| 22 | 420250315 | Flat Washer 8.4 mm |
| 23 | 420440372 | Torx Flange Screw M8 X 25 |
| 24 | 420842619 | Hex. Nut M8 |
