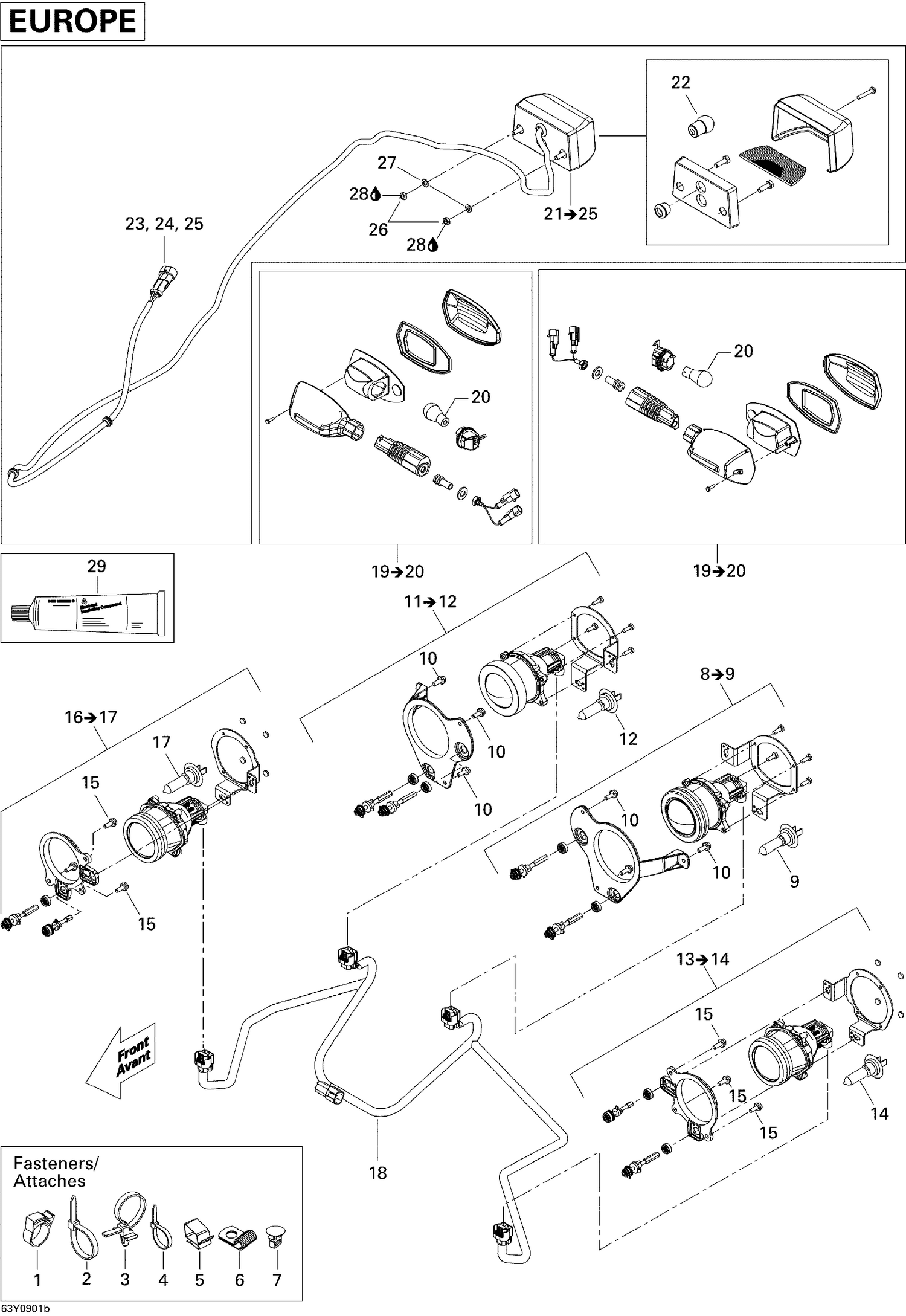

10- Lighting System Europe
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293650082 | Clamp |
| 2 | 293750008 | Tie Wrap 368 mm |
| 3 | 293750009 | Tie-Rap 173 mm |
| 4 | 414115200 | Tie-Rap 180 mm |
| 5 | 414227300 | Clip |
| 6 | 415052400 | Bracket |
| 7 | 293750044 | Tie Rap Mount |
| 9 | 415129249 | Halogen Bulb |
| 10 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 415129249 | Halogen Bulb |
| 14 | 415129249 | Halogen Bulb |
| 15 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 17 | 415129249 | Halogen Bulb |
| 18 | 710000793 | BEAM HARNESS ASS'Y - Call your local BRP dealership |
| 20 | 715900043 | Bulb 12V 21W |
| 22 | 415129261 | Bulb 12V 10W |
| 23 | 278001013 | Wire Seal |
| 24 | 409209400 | Male Terminal Housing, 2 Circuits |
| 25 | 409012900 | Male Terminal |
| 26 | 232051600 | Hex. Nut M5 |
| 27 | 234051600 | Flat Washer M5, Stainless |
| 28 | 293800060 | Loctite 243, 10 ml |
