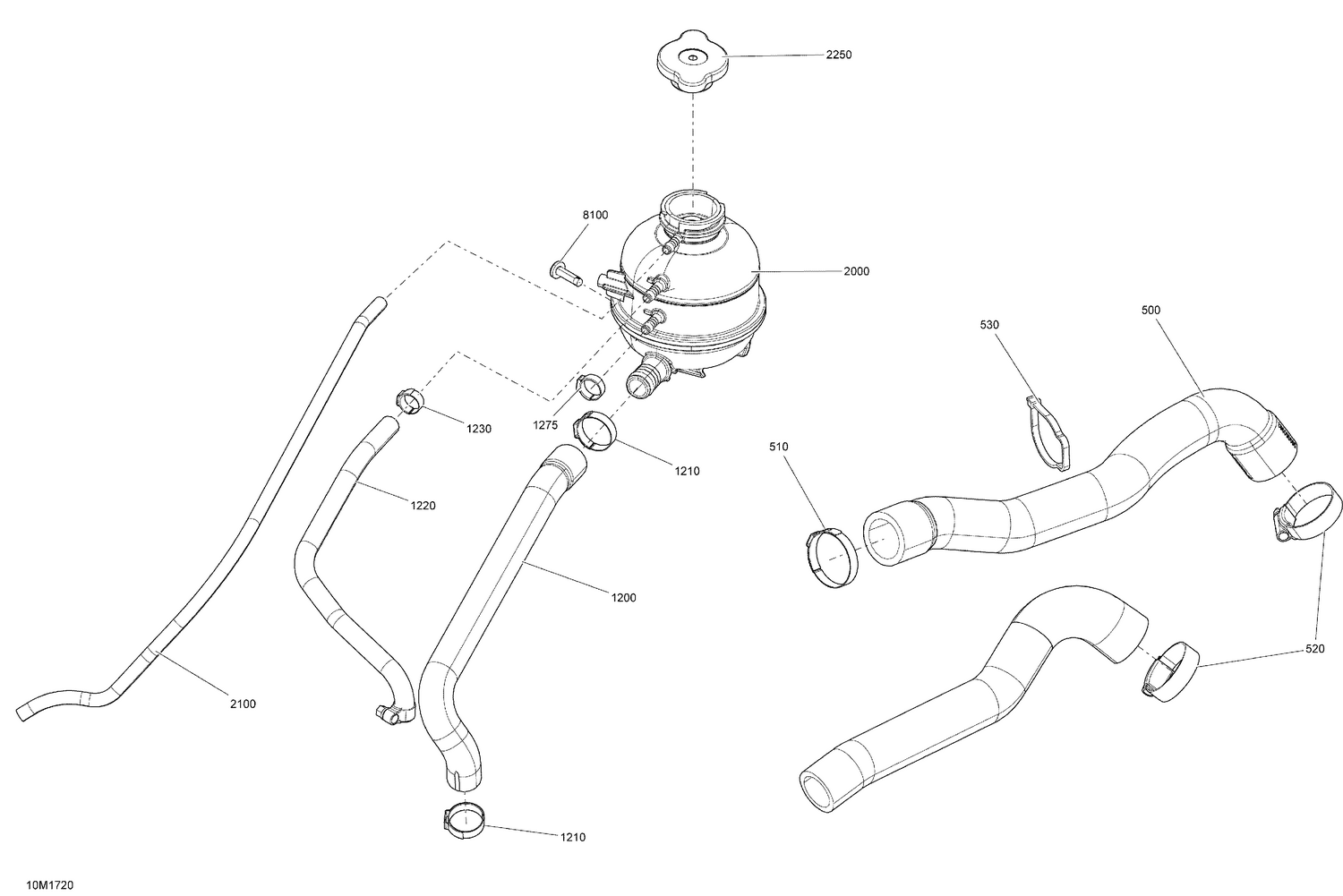

01- Cooling System - All Models
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509000963 | Cooling Hose |
| 510 | 293650199 | Oetiker Gear Clamp |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 530 | 293750008 | Tie Wrap 368 mm |
| 1200 | 509001141 | Hose This part replaces 509000967. |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509000968 | Cooling Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1275 | 293650047 | Crimp Clamp, 15.3-706R |
| 2000 | 861805522 | Coolant Tank This part replaces 509000970. |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2250 | 509000180 | Radiator Pressure Cap |
