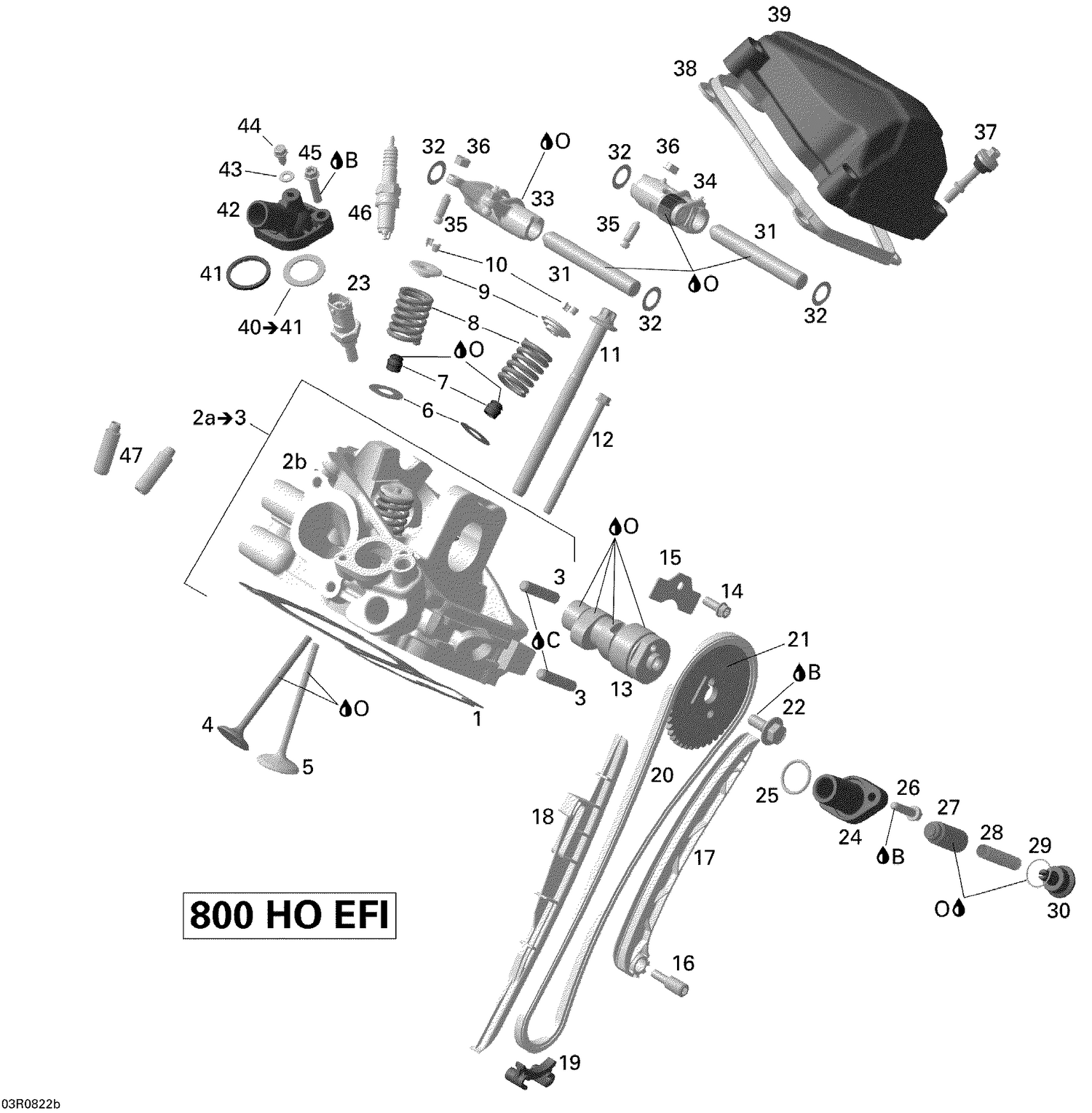

01- Cylinder Head, Rear
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| C | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 1 | 420630195 | Cylinder Head Gasket |
| 2b | Not | Available As Spare Part - Cylinder Head |
| 3 | 420941014 | Stud M8 x 26 |
| 4 | 420254359 | Intake Valve 31MM This part replaces 420254351. |
| 5 | 420253171 | Exhaust Valve, 27 Mm This part replaces 420254361. |
| 6 | 420627525 | Thrust Washer This part replaces 420627770. |
| 7 | 420230515 | Valve Stem Seal |
| 8 | 420239295 | Valve Spring |
| 9 | 420254132 | Valve Spring Retainer |
| 10 | 420254120 | Cotter Valve |
| 11 | 420641551 | Torx Screw M10X140 This part replaces 420641550. |
| 12 | 420641228 | Torx Flange Screw M6 X 85 |
| 13 | 420620016 | Camshaft |
| 14 | 420641048 | Torx Flange Screw M6 X 16 |
| 15 | 420627743 | Holding Strip |
| 16 | 420240943 | Bearing Screw M6 This part replaces 420240942. |
| 17 | 420436015 | Chain Tension Guide |
| 18 | 420236584 | Chain Guide This part replaces 420236581. |
| 19 | 420236351 | Chain Guide This part replaces 420236350. |
| 20 | 420297063 | Silent Chain This part replaces 420297062. |
| 21 | 420254434 | Camshaft Sprocket This part replaces 420254432. |
| 22 | 420241721 | Hex. Collar Screw M8 X 20 |
| 23 | 278002895 | Temperature Sensor This part replaces 278001016. |
| 24 | 420236510 | Chain Tensioner Housing |
| 25 | 420430373 | O-Ring This part replaces 420430370. |
| 26 | 420641238 | Torx Flange Screw M6 X 25 |
| 27 | 420236521 | Chain Tensioner Plunger This part replaces 420236520. |
| 28 | 420238120 | Spring |
| 29 | 420250890 | O-Ring |
| 30 | 420641150 | Plug Screw |
| 31 | 420229712 | Pin #12, Small, M6 X 90 |
| 32 | 420944382 | Shim |
| 33 | 420254907 | Inlet Rocker Arm This part replaces 420254905. |
| 34 | 420254911 | Exhaust Rocker Arm This part replaces 420254915. |
| 35 | 420241337 | Adjustment Screw M6 X 0.75 This part replaces 420241335. |
| 36 | 420242913 | Hex Nut M6 This part replaces 420242910. |
| 37 | 420440561 | Allen Screw M6 x 30,5 This part replaces 420440560. |
| 38 | 420630260 | Gasket |
| 39 | 420610393 | Valve Cover This part replaces 420610390. |
| 41 | 420650300 | Thermostat Gasket |
| 42 | 420222696 | Thermostat Cover This part replaces 420222690. |
| 43 | 420650255 | Gasket Ring |
| 44 | 420441621 | Screw M5 X 16 This part replaces 420941950. |
| 45 | 420641238 | Torx Flange Screw M6 X 25 |
| 46 | 715900637 | Spark Plug NGK DCPR8E This part replaces 707000246. |
| 47 | 420254374 | Valve Guide |
