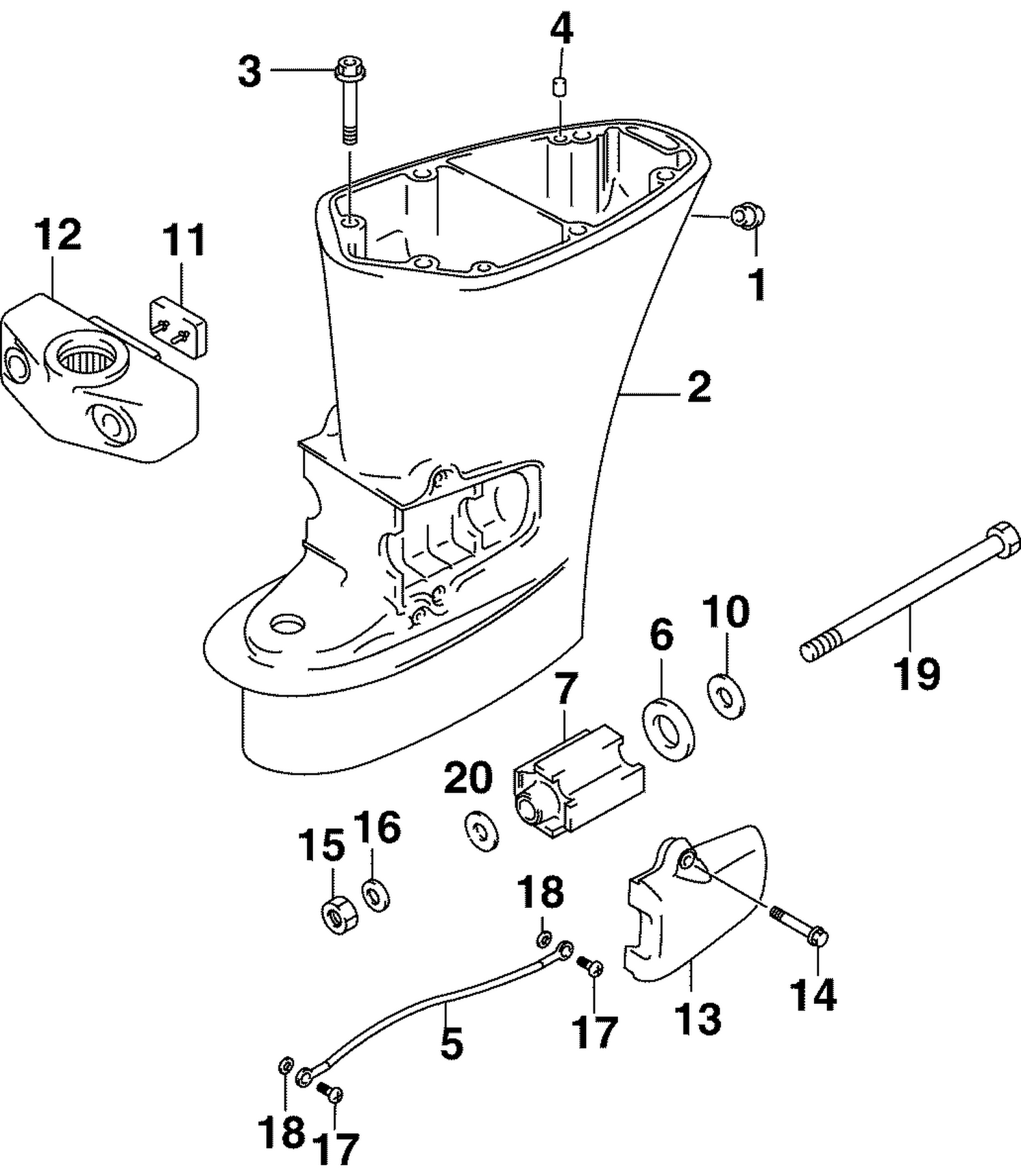

DRIVESHAFT HOUSING
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5036787 | HOUSING, DRIVE SHAFT |
| 3 | *5035792 | BOLT, (10X45mm) |
| 4 | 5030511 | PIN |
| 5 | 5031667 | LEAD (MOUNT BRKT TO HSG) |
| 6 | 5030886 | DAMPER, Mount |
| 7 | 5036089 | MOUNT, LOWER |
| 10 | 5036482 | WASHER (12X40X3.0mm) |
| 11 | 5036468 | MOUNT, LOWER THRUST |
| 12 | 5036091 | BRACKET, LOWER MOUNT |
| 13 | 5036710 | COVER, Lower mount |
| 14 | 5031217 | BOLT |
| 15 | 5031221 | NUT |
| 16 | 5036480 | WASHER |
| 17 | 5030407 | SCREW (5X8) |
| 18 | 5030459 | WASHER |
| 19 | 5036090 | BOLT, LOWER MOUNT |
