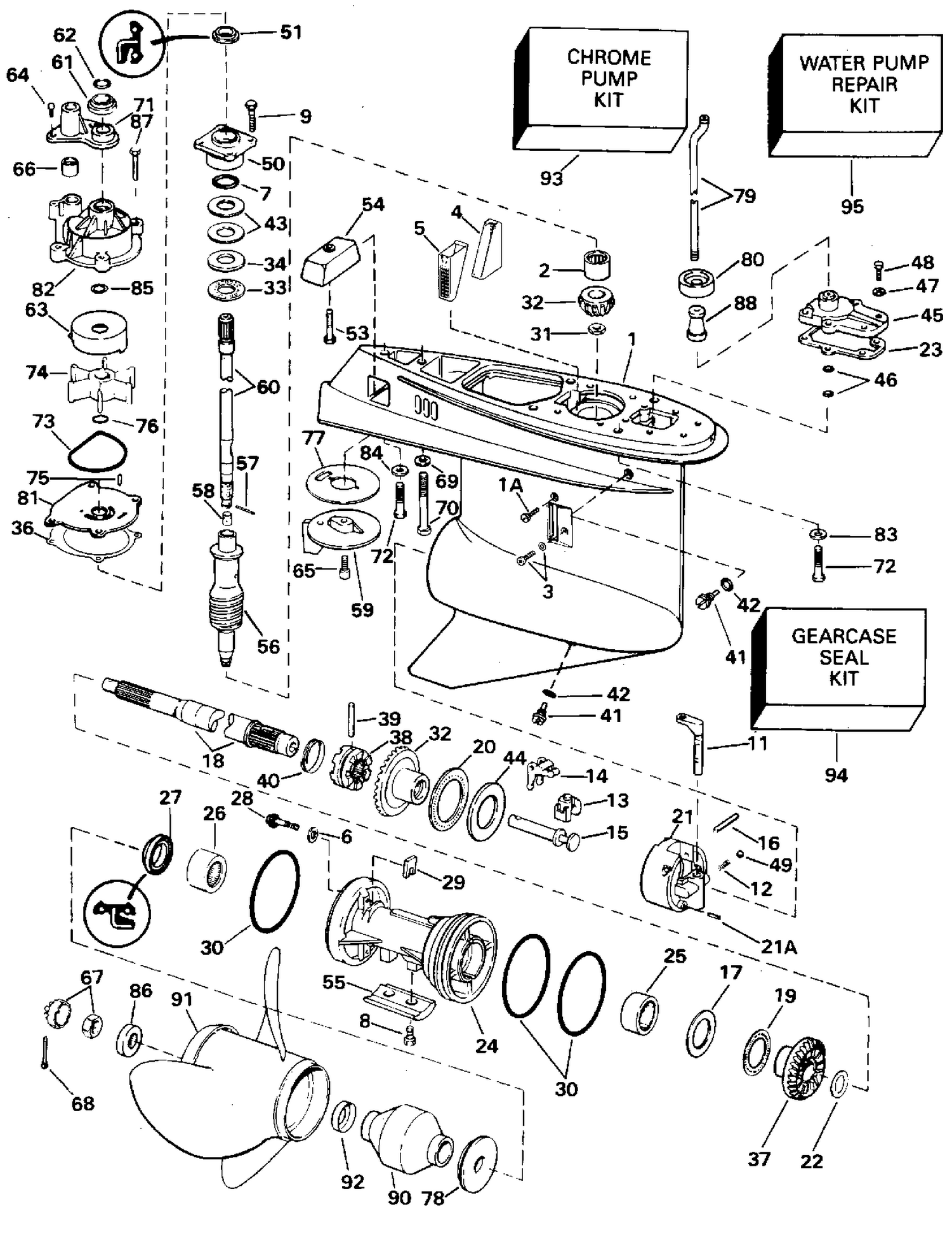

| Ref | Part Number | Description |
|---|
| 1 |
0435822 |
GEARCASE & BEARING ASSY. |
| 2 |
0391471 |
BEARING, Pinion |
| 4 |
0333234 |
SCREEN, Water intake, port |
| 5 |
0333233 |
SCREEN, Water intake, stbd |
| 11 |
0326807 |
DETENT, Shift |
| 15 |
0326823 |
SHAFT |
| 21 |
0431735 |
HOUSING & BEARING ASSY |
| 24 |
5000361 |
Hsg Ay This part replaces 0437823. |
| 27 |
0341281 |
SEAL |
| 32 |
0435120 |
GEAR & PINION ASSY. |
| 37 |
0336569 |
GEAR, Reverse |
| 44 |
0326733 |
THRUST WASHER |
| 51 |
0341280 |
SEAL |
| 53 |
0332746 |
SCREW, Anode |
| 54 |
0397768 |
ANODE |
| 56 |
0335679 |
DRIVESHAFT, Lower |
| 59 |
0338943 |
TRIM TAB, Gearcase |
| 60 |
5000625 |
D'Shaft 25" V/8 This part replaces 0435771. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 69 |
0326784 |
WASHER, Screw |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 79 |
0330029 |
SHIFT ROD |
| 84 |
0326785 |
WASHER |
| 85 |
0331188 |
O-Ring |
| 93 |
0435526 |
CHROME CUP & PLATE KIT |
| 94 |
5006373 |
GEARCASE SEAL KIT This part replaces 0437753. |
| 0389924 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 0438260 |
5000358 |
G-Case Ay This part replaces 0438260. |
