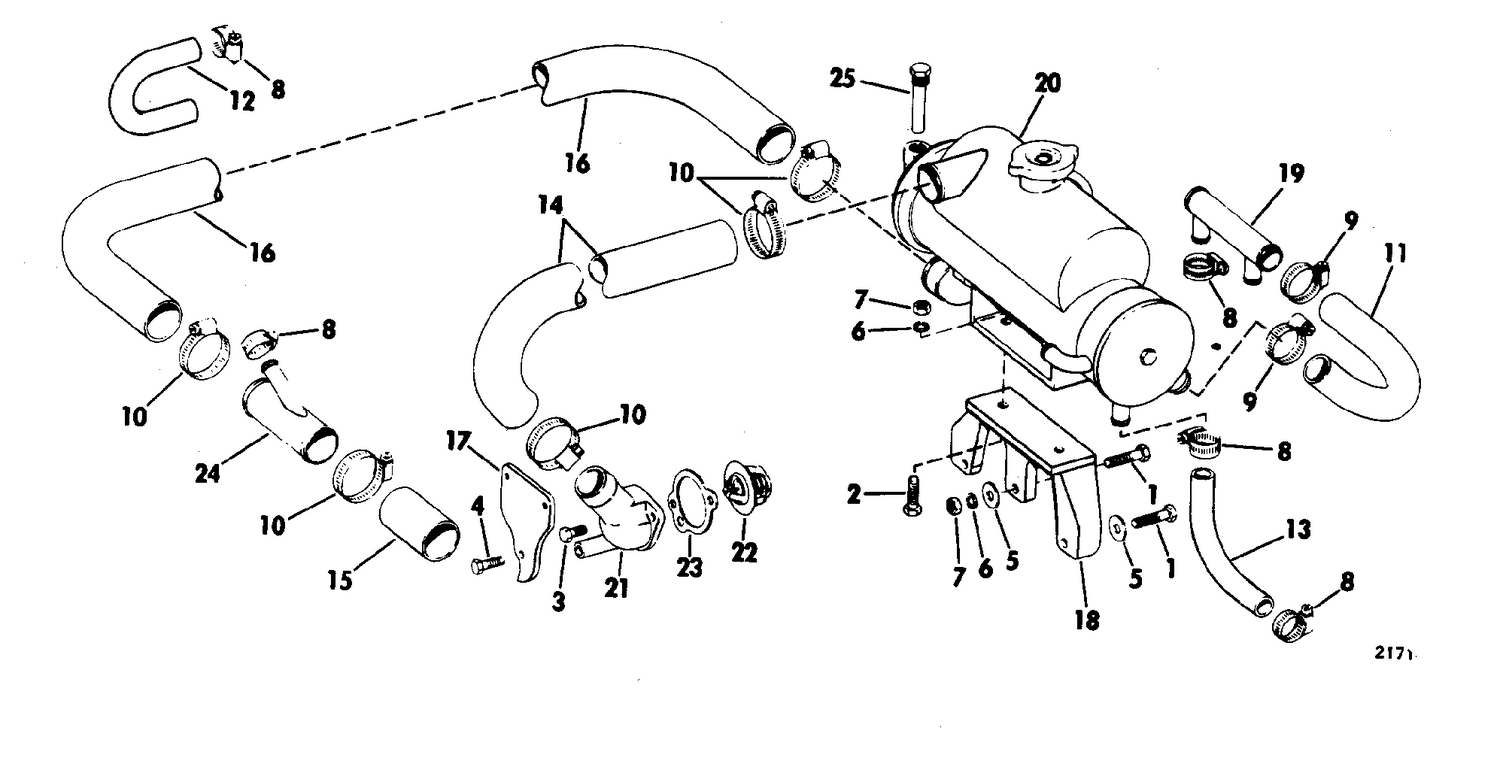

| Ref | Part Number | Description |
|---|
| 1 |
CAPSCREW, |
Hex hd., 3/8 x 1-1/2" long |
| 2 |
CAPSCREW, |
Hex hd., 3/8 x 1-1/4" long |
| 3 |
CAPSCREW, |
Hex hd., 5/ 16 x 3/4" long |
| 4 |
CAPSCREW, |
Hex hd., 5/16 x 1" long |
| 5 |
WASHER, |
Flat, 3/8" i.d. |
| 8 |
CLAMP, |
Hose, #10 |
| 9 |
CLAMP, |
Hose, #16 |
| 10 |
CLAMP, |
Hose, #24 |
| 11 |
HOSE, |
Flex, 1" i.d. 13-1/4" long |
| 12 |
HOSE, |
Flex. 5/8" i.d. 8" long |
| 13 |
HOSE, |
Flex, 5/8" i.d. 7"long |
| 14 |
HOSE, |
Flex, 1-1/2" i.d. 24" long |
| 15 |
HOSE, |
Soft, 1-1/2" i.d. 3" long |
| 16 |
HOSE, |
Flex, 1-1/2" i.d. 27" long |
| 17 |
047-023 |
BRACKET, Voltage regulator mounting |
| 18 |
044-013 |
BRACKET, Mounting, al-17 |
| 19 |
072-005 |
HEADER ASSY, Water pump |
| 20 |
HEAT |
EXCHANGER ASSY., Omc 412-4 |
| 21 |
047-039 |
HOUSING, Thermostat |
| 22 |
072-019 |
THERMOSTAT, 160 deg f |
| 23 |
079-034 |
GASKET, Thermostat housing |
| 25 |
076-006 |
ANODE (INSTALLED IN HEAD EXCHANGER) |
