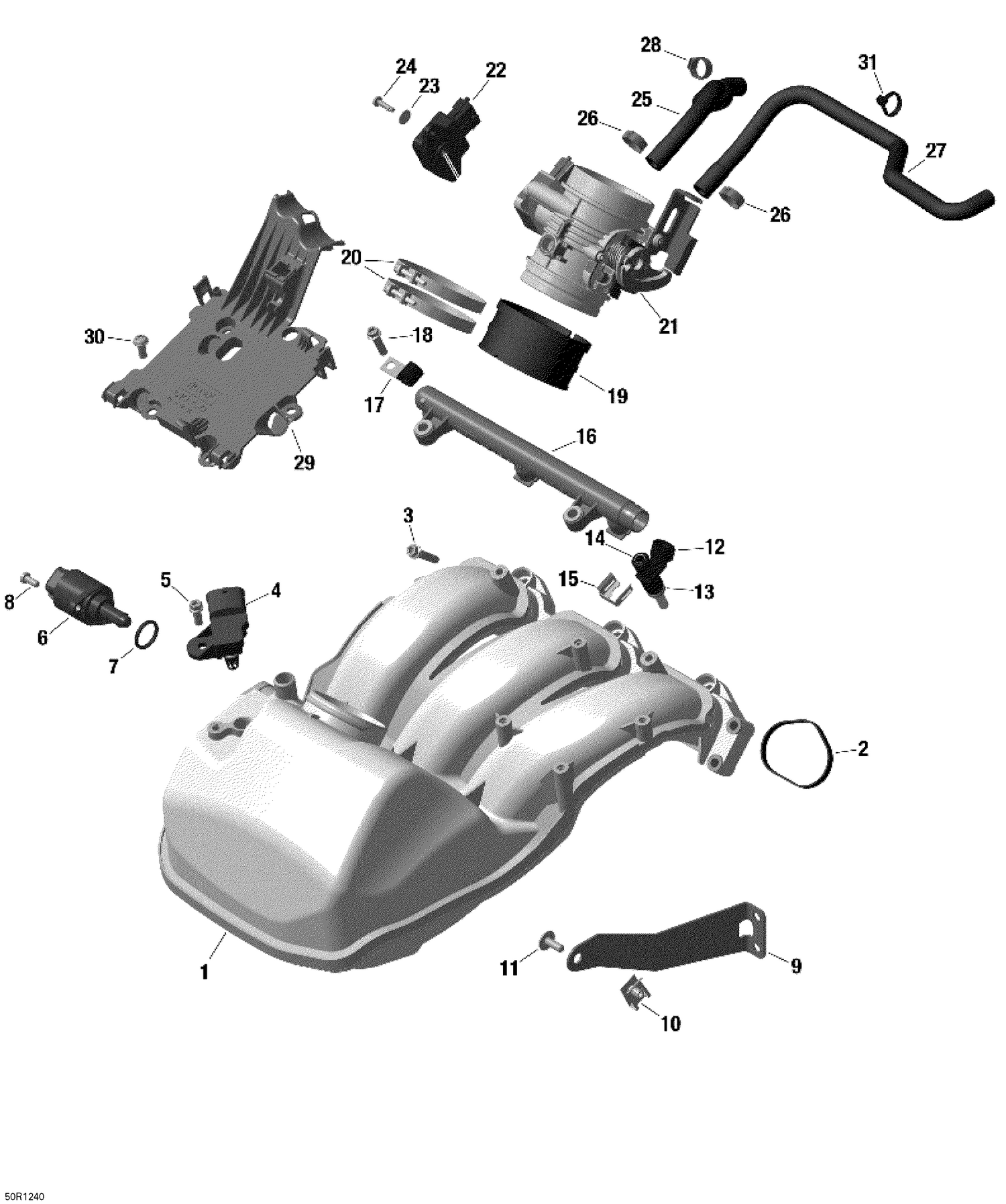

01- Air Inlet Manifold And Throttle Body
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420950745 | Gasket |
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 707000995 | Pressure And Temperature Sensor This part replaces 707000564. |
| 5 | 420440162 | Torx Flange Screw M6 X 16 |
| 6 | 420665941 | Idle Air Control Valve This part replaces 420665940. |
| 7 | 420631780 | O-Ring |
| 8 | 420640086 | Torx Screw M5 X 12 This part replaces 420640081. |
| 9 | 420951011 | SUPPORT - Call your local BRP dealership This part replaces 420951010. |
| 10 | 420942108 | Panel Nut M6 X 1 |
| 11 | 420241524 | Torx Screw M6 X 16 |
| 13 | 420431890 | O-Ring |
| 14 | 420631220 | O-Ring |
| 15 | 420853030 | Injector Clip |
| 16 | 420874810 | Fuel Rail |
| 18 | 420440234 | Torx Flange Screw M6 X 25 |
| 19 | 420460490 | INTAKE ADAPTOR - Call your local BRP dealership |
| 20 | 420251209 | Clamp |
| 22 | 420866120 | Position Sensor This part replaces 270000251. |
| 23 | 234042600 | Flat Washer 4 mm, Stainless |
| 24 | 208641660 | Phillips Screw M4 X 16 |
| 25 | 420460482 | MOLDED HOSE - Call your local BRP dealership This part replaces 420460481. |
| 26 | 293650125 | Oetiker Clamp |
| 27 | 420822660 | MOLDED HOSE - Call your local BRP dealership |
| 28 | 420851458 | Clamp |
| 29 | 420910331 | BASE PLATE - Call your local BRP dealership |
| 30 | 420641588 | Torx Flange Screw M6 X 16 This part replaces 420641583. |
