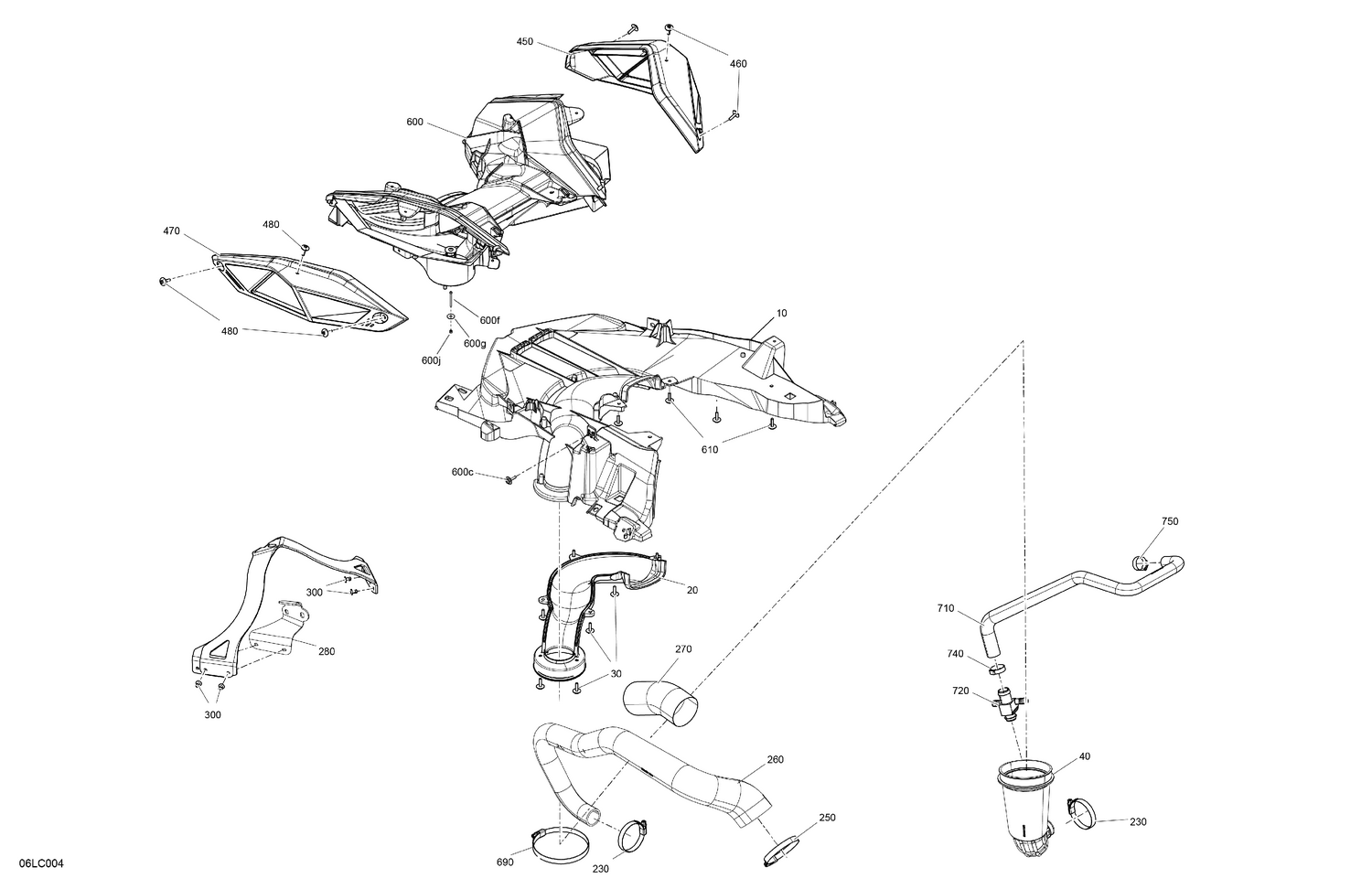

02- Engine - Air Intake
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508001077 | Multi Purpose Plate |
| 20 | 508000887 | Tube In |
| 30 | 250000725 | Screw M4 X 16 |
| 40 | 508001183 | Intake Silencer |
| 230 | 293650303 | Mounting Clamp |
| 250 | 293650302 | Mounting Clamp |
| 260 | 508001230 | Inlet Hose |
| 270 | 508001033 | Protector Tube |
| 280 | 508001180 | Hose Support |
| 300 | 390909100 | Avex Rivet |
| 450 | 508000906 | Air Filter RH, (Nitex Mesh) This part replaces 508001277. |
| 460 | 250000889 | Screw M4 X 16 |
| 470 | 508000905 | Air Filter LH, (Nitex Mesh) This part replaces 508001276. |
| 480 | 250000889 | Screw M4 X 16 |
| 600 | 508001078 | Air Duck Ass'y This part replaces 508001280. |
| 600c | 250000725 | Screw M4 X 16 |
| 600f | 205444056 | Socket Head Screw M4 X 40 |
| 600g | 224060201 | Flat Washer |
| 600j | 232541414 | Elastic Stop Nut M4 |
| 610 | 250000725 | Screw M4 X 16 |
| 690 | 514052924 | Norma gear clamp |
| 710 | 508001272 | Vent Hose |
| 720 | 508000946 | Heated Breather |
| 740 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
