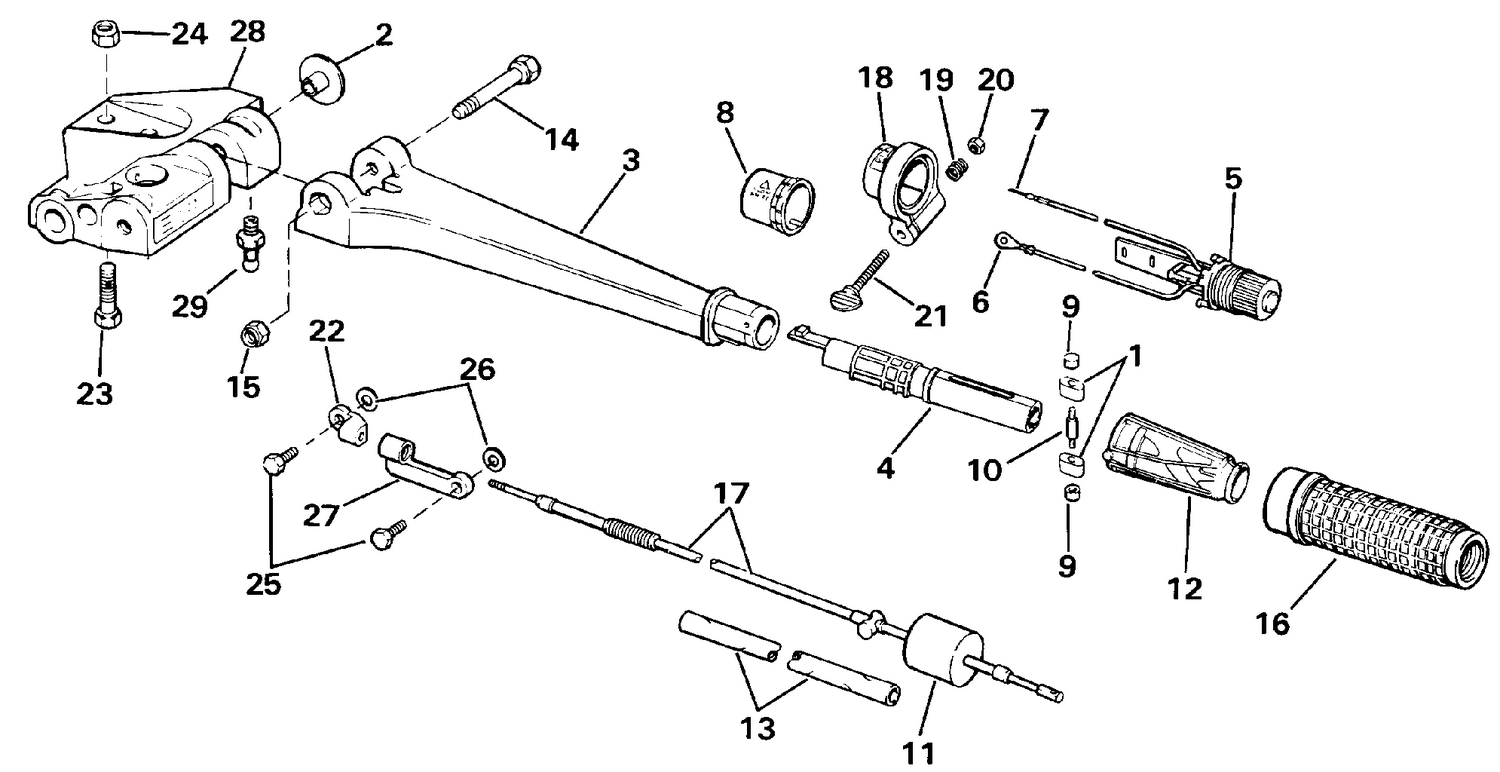

STEERING HANDLE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 0394718 | IDLE STOP & SWITCH ASSY. |
| 12 | 0329882 | GRIP&HELIX AY |
| 16 | 0394606 | GRIP ASSY. |
| 17 | 0397002 | THROTTLE CABLE ASSY. This part replaces 0394489. |
| 18 | 0394522 | THROTTLE FRICTION CONTROL |
| 21 | 0329784 | SCREW |
| 22 | 0325715 | CONNECTOR, Throttle cable |
| 27 | 0397129 | CONNECTOR KIT This part replaces 0330405. |
| 28 | 0334642 | BRACKET, Steering handle This part replaces 0330242. |
| 0394538 | 0394538 | STEERING HANDLE ASSY |
| 0395212 | 0395212 | STEERING HANDLE ASSY. |
