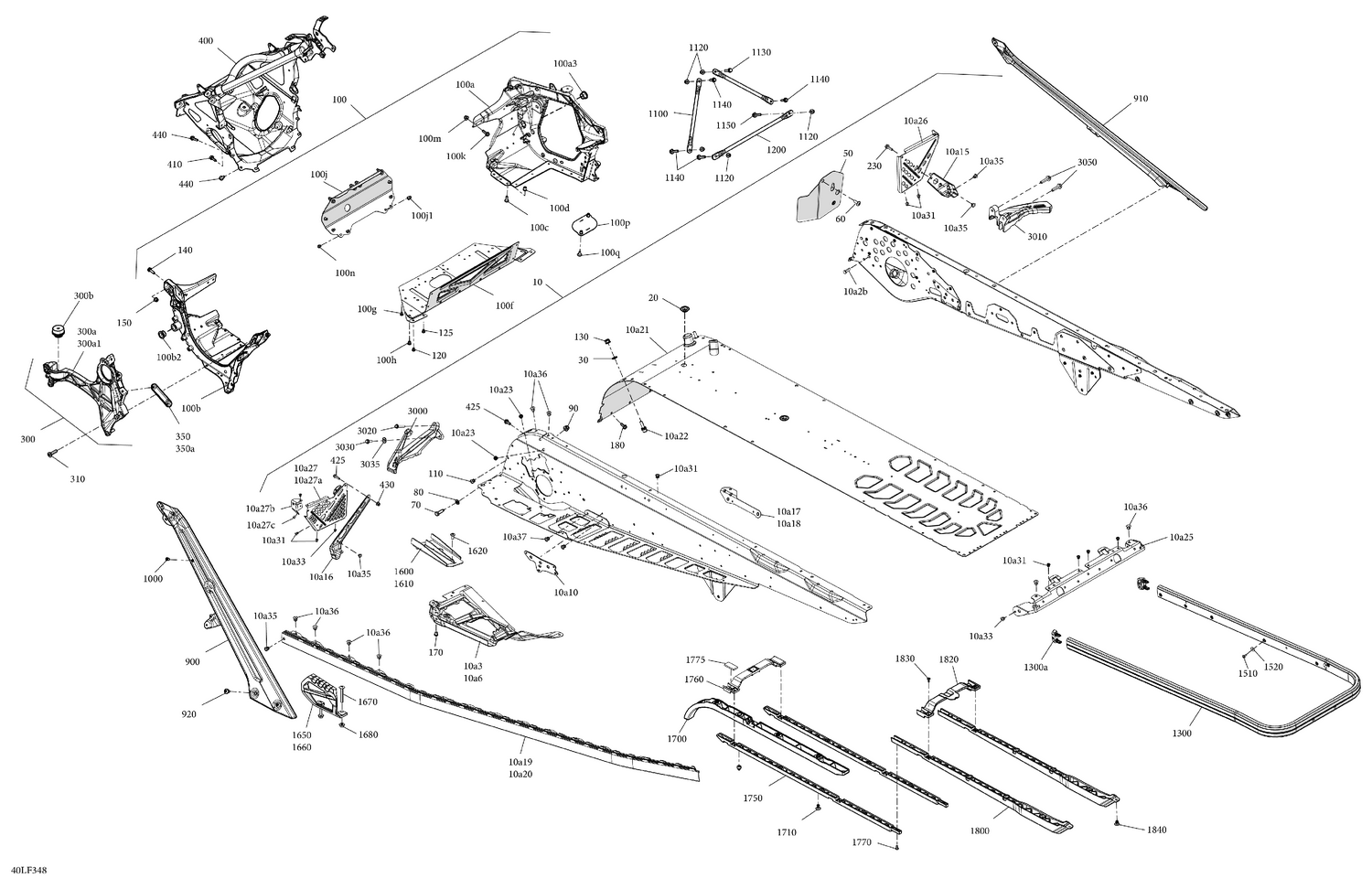

| Ref | Part Number | Description |
|---|
| 10a10 |
518337274 |
Front Suspension Arm Reinforcement This part replaces 518336141. |
| 10a15 |
518334507 |
Stirrup Reinforcement |
| 10a16 |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10a17 |
518330299 |
LH Member Fixation Plate |
| 10a18 |
518331745 |
RH Under Chassis Reinforcement |
| 10a19 |
518336156 |
RH Formed Boarding Step |
| 10a20 |
518336155 |
LH Formed Boarding Step |
| 10a21 |
518335127 |
Radiator Tunnel 146 |
| 10a22 |
250300652 |
Protruding Stud M8 x 22 |
| 10a23 |
605636003 |
Clinch Nut M6 Hexsert |
| 10a25 |
518328990 |
Rear Cap |
| 10a26 |
518332581 |
RH Footrest 400Mm |
| 10a27a |
518330550 |
LH Footrest 400mm |
| 10a27b |
518330998 |
LH Front Chassis Reinforcement |
| 10a27c |
390909200 |
Avex Rivet |
| 10a2b |
250300027 |
Clinch Stud M6 X 20 |
| 10a3 |
518332803 |
Footrest Reinforcement |
| 10a31 |
390909100 |
Avex Rivet |
| 10a33 |
390909200 |
Avex Rivet |
| 10a35 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a36 |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10a37 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a6 |
518332802 |
Deep Black, Footrest Reinforcement |
| 20 |
293730052 |
Black, Plug |
| 30 |
250200146 |
Conical Spring Washer M8 |
| 50 |
518330928 |
Heat Shield |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505073317 |
Leg Cushion |
| 100b2 |
505073317 |
Leg Cushion |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332715 |
Bottom Plate |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j1 |
605636003 |
Clinch Nut M6 Hexsert |
| 100k |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100m |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100n |
390909100 |
Avex Rivet |
| 100p |
518332276 |
Oil Plate |
| 100q |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 120 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 300a1 |
518329769 |
Member Cast |
| 300b |
512061516 |
Vibration Damper |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 350a |
518331741 |
LH Front Chassis Reinforcement |
| 400 |
518334551 |
Chassis Suspension Module Ass'y |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207663546 |
Hex. Flange Screw M6 x 35 |
| 430 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 440 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 900 |
518336937 |
Platinum Silver, LH Rear Diagonal Cross Member |
| 910 |
518336938 |
Platinum Silver, RH Rear Diagonal Cross Member |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1000 |
293450267 |
Insert M5 - 0.8 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 1200 |
518329755 |
Center Column Support |
| 1300a |
520001629 |
Bumper Cap |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1600 |
518336494 |
LH Footrest |
| 1610 |
518336495 |
RH Footrest |
| 1620 |
250000755 |
Torx Screw M6 X 16 |
| 1650 |
518330797 |
LH Side Foot Support |
| 1660 |
518330798 |
RH Side Foot Support |
| 1670 |
250000748 |
Torx Screw M6 X 45 |
| 1680 |
233161414 |
Hex. Flange Nut M6 |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 1750 |
518329994 |
Rear Protector |
| 1760 |
518334162 |
Front Protective Structure |
| 1770 |
250000577 |
Torx Truss Screw K40 X 12 |
| 1775 |
705002447 |
Gasket |
| 1800 |
518329979 |
Rear Protector |
| 1820 |
518333936 |
Central Protective Structure |
| 1830 |
250000577 |
Torx Truss Screw K40 X 12 |
| 1840 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 3000 |
518336496 |
Strrup Fl Painted |
| 3010 |
518329134 |
Toe Hold |
| 3020 |
250000793 |
Hex. Flange Screw M6 X 25 |
| 3030 |
205562054 |
Screw-Socket Hd.Din.912 S.Grip |
| 3035 |
250200039 |
Flat Washer |
| 3050 |
250001124 |
Hex Screw Forming M6 x 25 |
