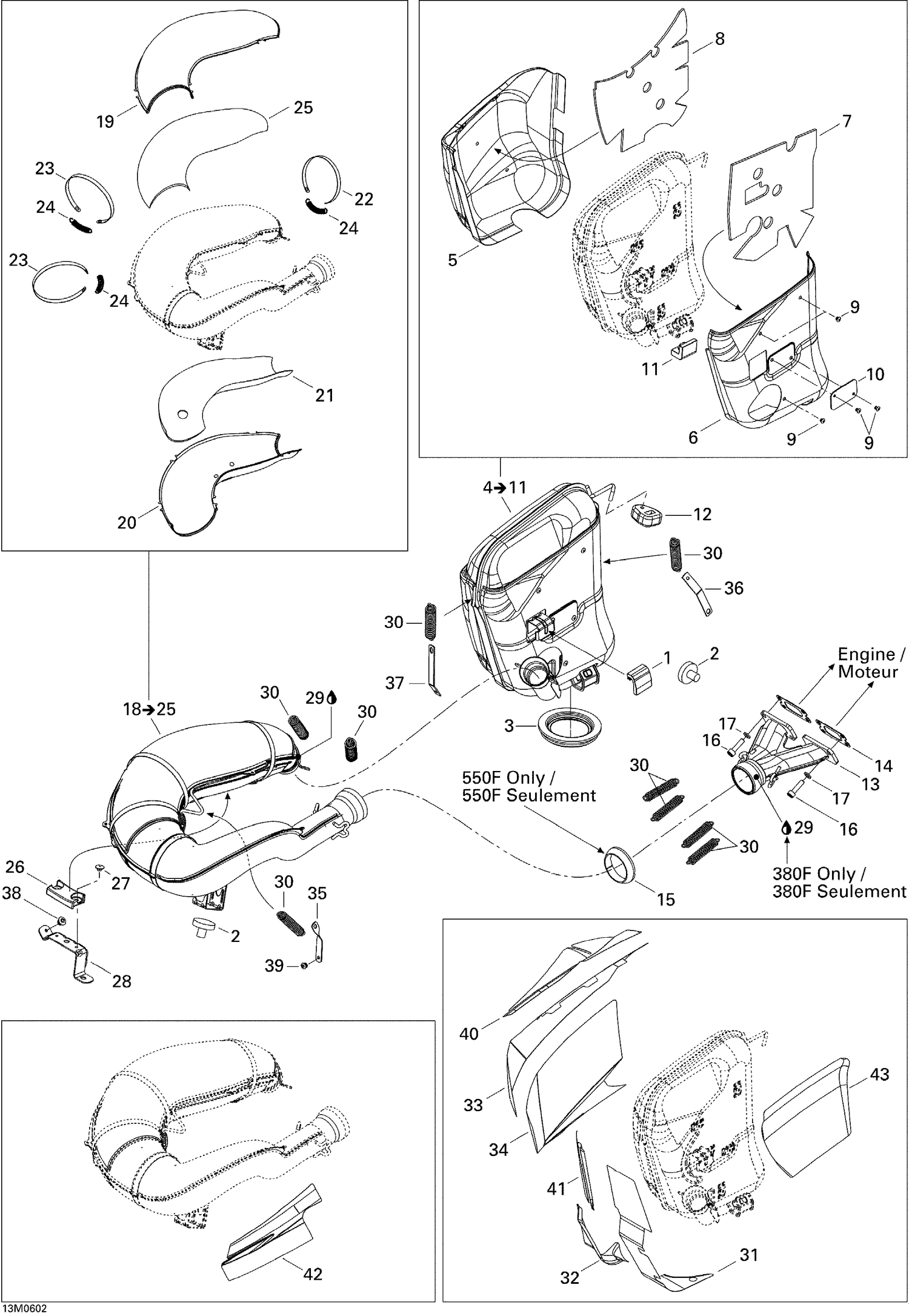

| Ref | Part Number | Description |
|---|
| 1 |
514053372 |
UPPER STOPPER - Call your local BRP dealership |
| 2 |
514053654 |
Rubber Bumper |
| 3 |
514053394 |
Exhaust Grommet |
| 5 |
514054100 |
RH DEFLECTOR - Call your local BRP dealership |
| 6 |
514053843 |
HEAT DEFLECTOR LH - Call your local BRP dealership |
| 7 |
514053844 |
INSULATING WOOL LH - Call your local BRP dealership |
| 8 |
514053947 |
INSULATING WOOL RH - Call your local BRP dealership |
| 9 |
390910000 |
Pop Rivet 3/16” |
| 10 |
514053429 |
Reinforcement |
| 11 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 12 |
514052704 |
RUBBER BUMPER - Call your local BRP dealership |
| 16 |
205083044 |
Socket Head Screw M8 X 30 |
| 17 |
514053837 |
Washer |
| 19 |
514053852 |
REAR UPPER HALF-ENVELOPPE - Call your local BRP dealership |
| 20 |
514053853 |
REAR LOWER HALF-ENVELOPPE - Call your local BRP dealership |
| 21 |
514053854 |
LOWER INSULATING WOOL - Call your local BRP dealership |
| 22 |
514053501 |
Retaining Strap |
| 23 |
514053512 |
RETAINING STRAP - Call your local BRP dealership |
| 24 |
514053643 |
Spring |
| 25 |
514053987 |
UPPER INSULATING WOOL - Call your local BRP dealership |
| 26 |
514053352 |
BUMPER - Call your local BRP dealership |
| 27 |
293150103 |
Pop Rivet 3/16" |
| 28 |
514054039 |
BUMPER SUPPORT - Call your local BRP dealership |
| 29 |
293800090 |
Sealant, Loctite, 80 ml |
| 30 |
415107100 |
Spring |
| 31 |
514053560 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 32 |
514053622 |
Reflective Sheet |
| 33 |
514053954 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 34 |
514053562 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 35 |
514053955 |
SPRING BRACKET - Call your local BRP dealership |
| 36 |
514053725 |
SPRING BRACKET - Call your local BRP dealership |
| 37 |
514053393 |
Spring Bracket |
| 38 |
390909200 |
Avex Rivet |
| 39 |
390402200 |
Pop Rivet 3/16" |
| 40 |
514053673 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 41 |
514054012 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 42 |
514054013 |
Reflective Sheet |
