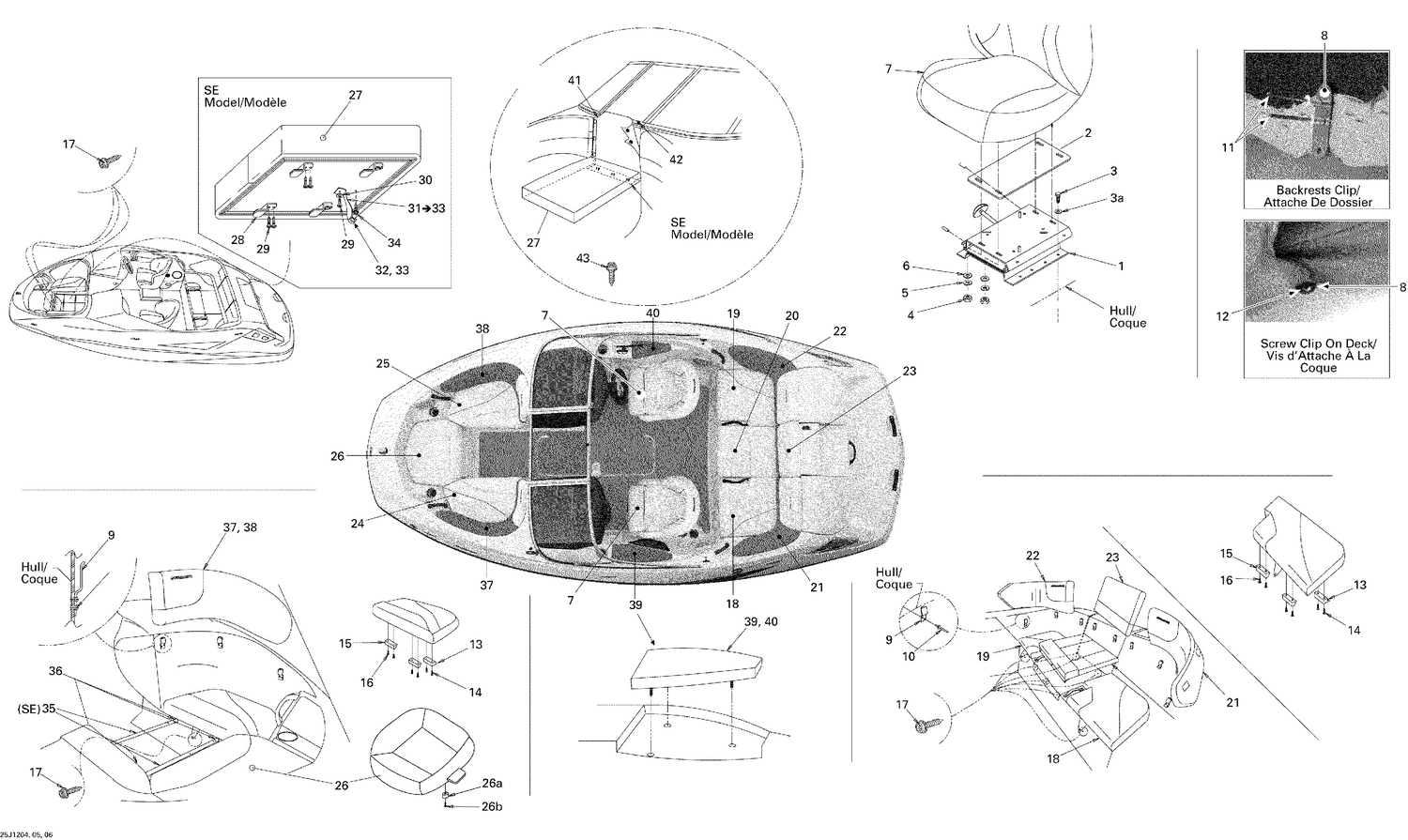

| Ref | Part Number | Description |
|---|
| 1 |
204614718 |
SEAT BASE, STARBOARD - Call your local BRP dealership |
| 2 |
204614717 |
SEAT BASE, PORT SIDE - Call your local BRP dealership |
| 3 |
207163560 |
Hex. Screw M6 X 35 |
| 3a |
234062600 |
Flat Washer M6, Stainless |
| 4 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 5 |
211200025 |
Lock Washer 1/4” |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
269002733 |
SEAT-BUCKET ASSY. - Call your local BRP dealership This part replaces 269002317. |
| 8 |
269001696 |
SEAT SUPPORT - Call your local BRP dealership |
| 9 |
269001695 |
SEAT SUPPORT - Call your local BRP dealership |
| 10 |
293150043 |
Pop Rivet 3/16" |
| 11 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 12 |
204100030 |
Phillips Screw #8 X 1/2” |
| 13 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 14 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 15 |
204611805 |
LATCH - Call your local BRP dealership |
| 16 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
| 17 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 18 |
269002540 |
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership |
| 19 |
269002541 |
REAR CUSHION ASS'Y, STARBOARD SIDE - Call your local BRP dealership |
| 20 |
269002542 |
REAR CUSHION ASS'Y, CENTER - Call your local BRP dealership |
| 21 |
269002338 |
Rear Backrest Ass'y, Port Side |
| 22 |
269002339 |
Rear Backrest Ass'y, Starboard Side |
| 23 |
269002212 |
REAR BACKREST ASS'Y, CENTER - Call your local BRP dealership |
| 24 |
269002543 |
FRONT CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership |
| 25 |
269002544 |
FRONT CUSHION ASS'Y, STARBOARD SIDE - Call your local BRP dealership |
| 26 |
269002545 |
FRONT CUSHION ASS'Y, CENTER - Call your local BRP dealership |
| 26a |
293830043 |
Rubber Stopper |
| 26b |
204100058 |
Phillips Tapping Screw |
| 27 |
269002546 |
FILLER BOW CUSHION ASS'Y - Call your local BRP dealership |
| 28 |
204613161 |
BRACKET - Call your local BRP dealership |
| 29 |
204100073 |
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership |
| 30 |
204100059 |
FLAT WASHER #10 - Call your local BRP dealership |
| 32 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 33 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 34 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 35 |
204613164 |
TUBE, STAINLESS - Call your local BRP dealership |
| 36 |
204613165 |
TUBE CAP - Call your local BRP dealership |
| 37 |
269002340 |
Backrest Ass'y, Bow Port Side |
| 38 |
269002341 |
BACKREST ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership |
| 39 |
269002010 |
ARMREST CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership |
| 40 |
269002011 |
ARMREST CUSHION ASS'Y, STARBOARD - Call your local BRP dealership |
| 41 |
269002219 |
WALK-THRU CURTAIN - Call your local BRP dealership |
| 42 |
204613515 |
SNAP - Call your local BRP dealership |
