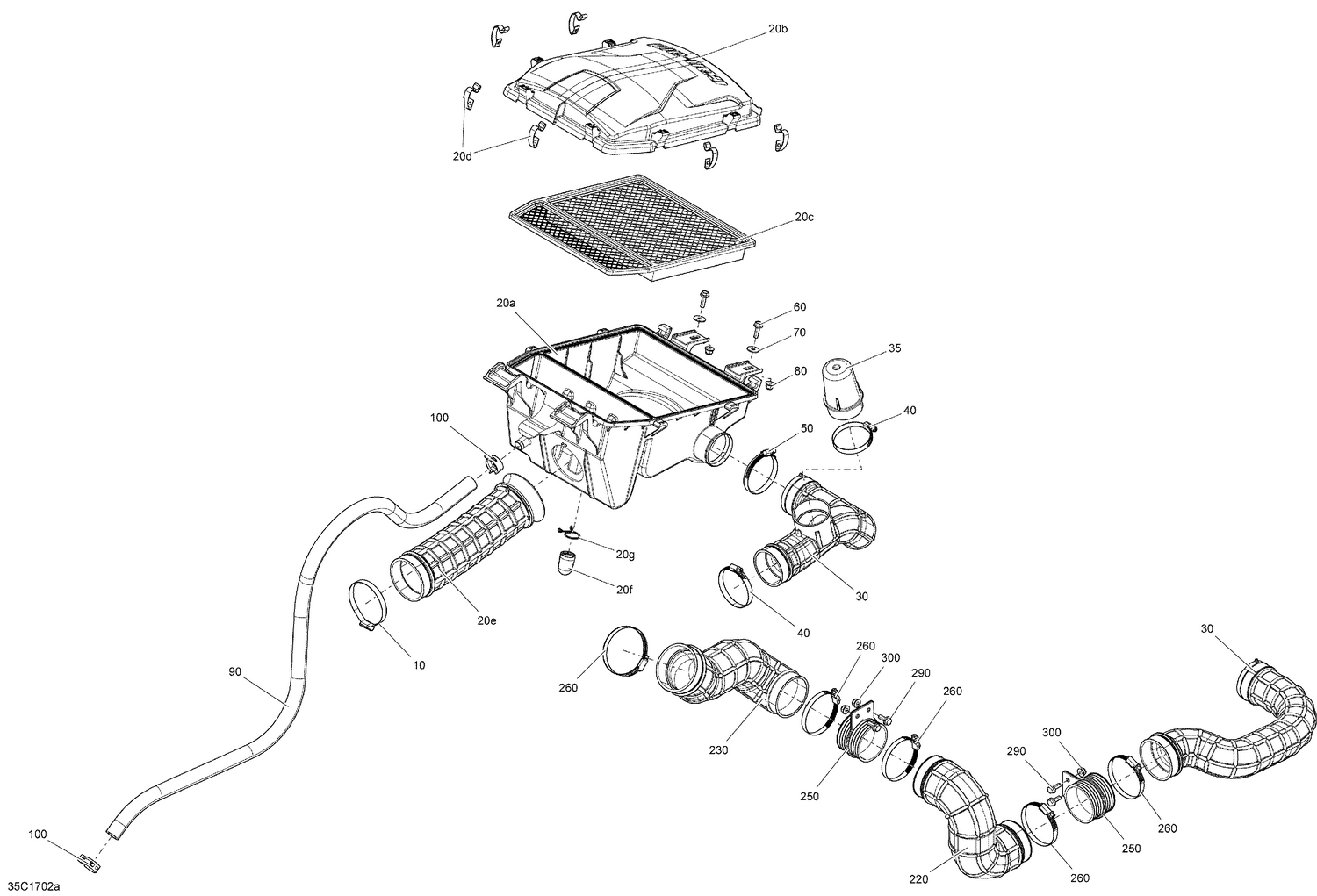

02- Air Intake - 1000R EFI
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 293650091 | Norma Clamp |
| 20a | 707800517 | Air Intake Silencer Base |
| 20b | 707800326 | Air Intake Silencer Cover |
| 20c | 707800327 | Air Filter |
| 20d | 707800249 | Cover Bracket |
| 20e | 707800329 | Intake Adaptor |
| 20f | 707800080 | Drain Tube |
| 20g | 707800278 | Retainer Clip |
| 50 | 293650079 | Norma Clamp |
| 60 | 207662044 | Hex. Flange Screw M6 X 20 |
| 70 | 250200082 | Flat Washer |
| 80 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 90 | 219704438 | Was 707800411 Hose 15.88 mm |
| 100 | 293650213 | Norma Spring Clamp |
