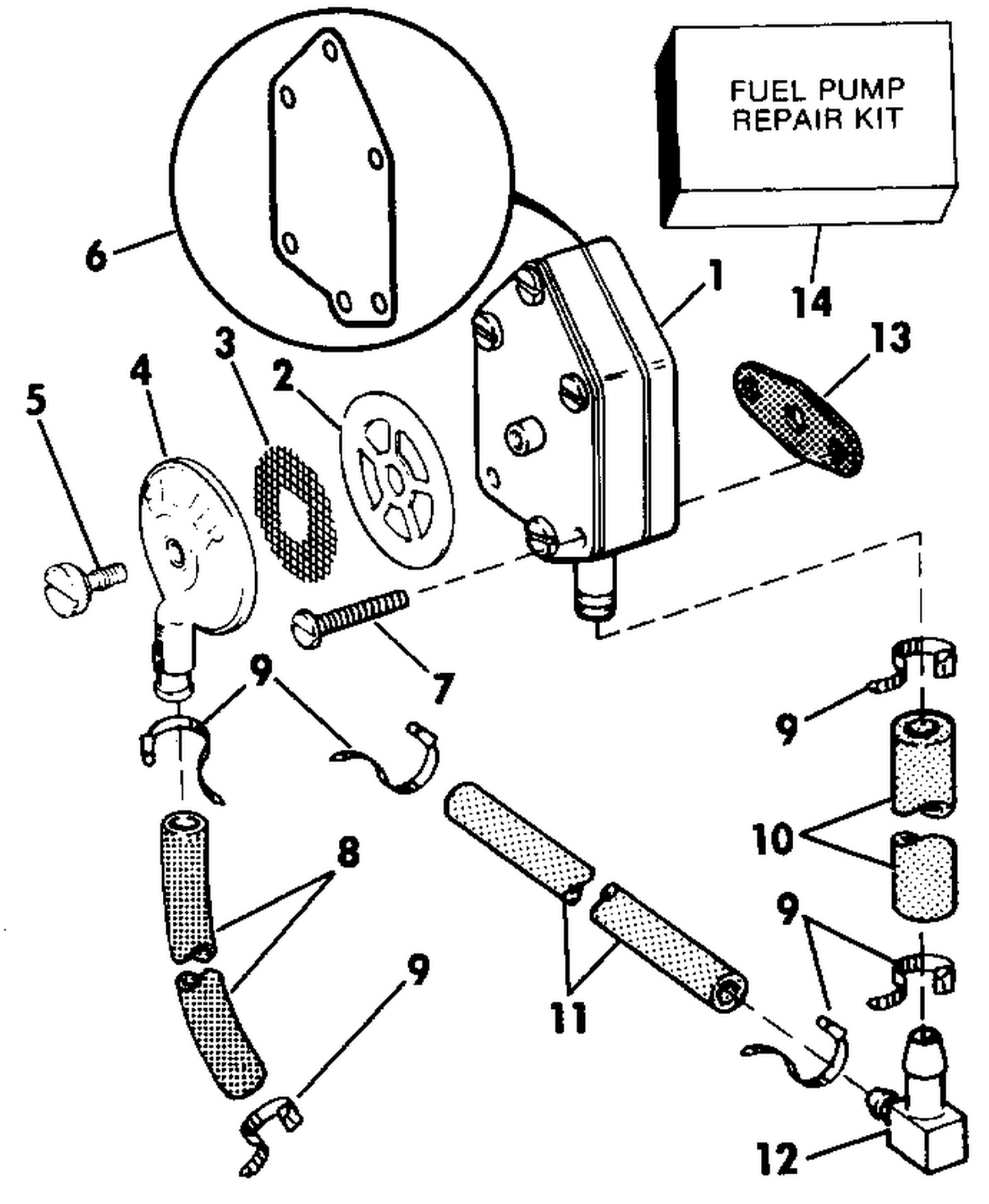

FUEL PUMP
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438556 | FUEL PUMP ASSY. This part replaces 0432451. |
| 2 | 0338879 | GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 | 0330092 | CAP Filter |
| 6 | 0334640 | DIAPHRAGM |
| 7 | 0328717 | NUT, Ground lead |
| 8 | HOSE, | Conn. to pump 470mm (18 1/2 in.) |
| 9 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 | HOSE, | Pump to elbow 38mm (1 1/2 in.) |
| 11 | HOSE, | ELBOW to tee 203mm (8 in.) |
| 12 | 0327729 | ELBOW, Fuel hose |
| 13 | 0303615 | GASKET |
