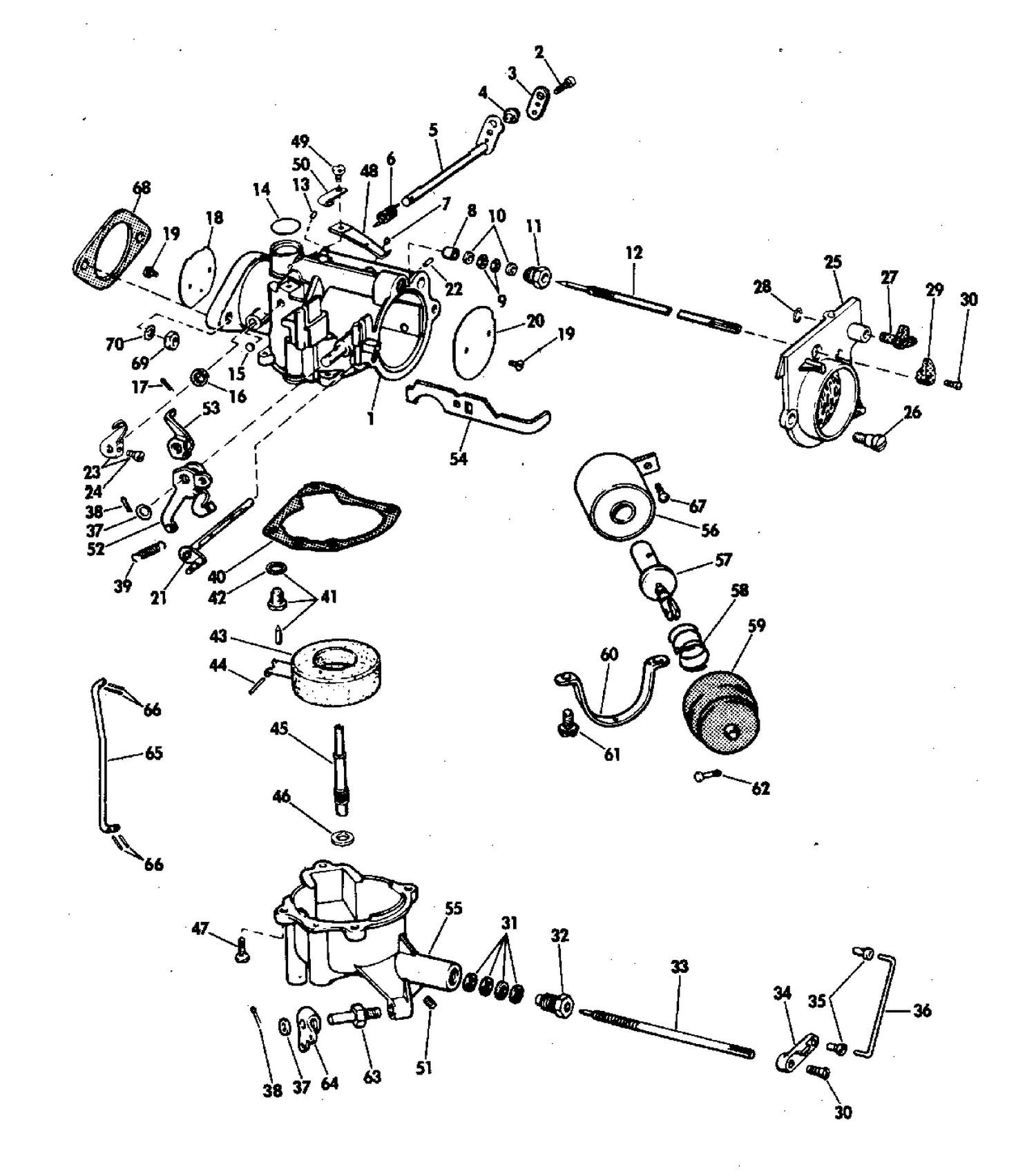

| Ref | Part Number | Description |
|---|
| 1 |
0382653 |
BODY ASSY |
| 23 |
0376727 |
THROTTLE LEVER & SCREW ASSY |
| 25 |
0379221 |
CONTROL PANEL ASSY |
| 27 |
0384920 |
ADJUSTING KNOB ASSY |
| 28 |
0317023 |
RETAINING RING |
| 29 |
0305442 |
ADJUSTING KNOB |
| 30 |
0551517 |
SCREW |
| 33 |
0305505 |
NEEDLE VALVE, High speed |
| 34 |
0307442 |
ARM, Needle valve |
| 39 |
0304111 |
SPRING |
| 40 |
0303750 |
GAKSET, Float bowl |
| 43 |
0375792 |
FLOAT & FLOAT ARM |
| 45 |
0312927 |
NOZZLE, High speed |
| 46 |
0307778 |
GASEKT, Carburetor body |
| 48 |
0302722 |
SPRING, Choke control |
| 49 |
0306479 |
SCREW |
| 50 |
0302792 |
SPRING, Small |
| 51 |
0303041 |
SCREW |
| 52 |
0376255 |
BELLCRANK & PIN |
| 52 |
0376258 |
BELLCRANK & PIN ASSEMBLY |
| 53 |
0303749 |
LEVER |
| 54 |
0305504 |
ROD, Choke |
| 54 |
0305515 |
CHOKE ROD |
| 55 |
0312929 |
CHAMBER, Float |
| 55 |
0312930 |
FLOAT CHAMBER |
| 56 |
0385554 |
SOLENOID This part replaces 0376806. |
| 57 |
0377890 |
PLUNGER SOLENOID |
| 58 |
0303745 |
SPRING, Plunger |
| 59 |
0303792 |
COVER, Solenoid |
| 60 |
0328907 |
COLLIER, amorçage vers support This part replaces 0303740. |
| 61 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 62 |
0382778 |
PIN, Solenoid This part replaces 0309569. |
| 63 |
0303739 |
PIVOT PIN |
| 64 |
0303747 |
LEVER |
| 65 |
0303734 |
LINK |
| 66 |
0307565 |
PIN |
| 68 |
0302598 |
GASKET, Carb. mtg |
| 0384917 |
0384917 |
CARBURETOR ASSY |
| 0384919 |
0384919 |
CARBURETOR ASSY |
