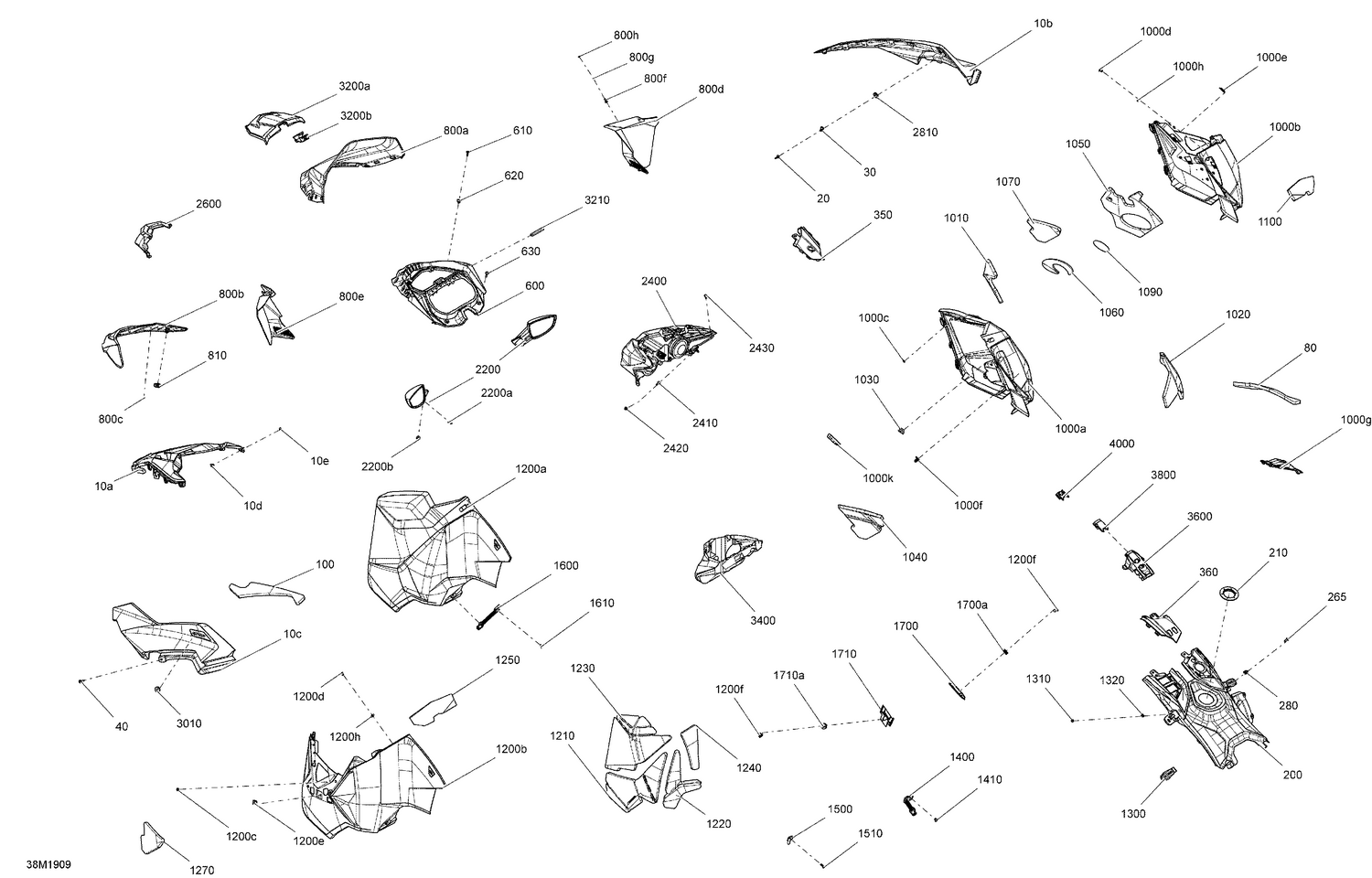

| Ref | Part Number | Description |
|---|
| 10a |
517305632 |
White, Center Hood |
| 10b |
517305239 |
Deep Black, RH Hood |
| 10c |
517305240 |
Deep Black, LH Hood |
| 10d |
293150104 |
Pop Rivet 3/16" |
| 10e |
517124300 |
Washer |
| 20 |
250000528 |
Torx Screw M5 X 20 |
| 30 |
250000958 |
Panel Nut M5 X 0.8 |
| 40 |
250000587 |
Torx Screw M5 X 26 |
| 80 |
517305090 |
RH Rear Hood Foam |
| 100 |
517305091 |
LH Rear Hood Foam |
| 200 |
517305557 |
White, Rear Console |
| 210 |
517306602 |
Console Nut |
| 265 |
250000705 |
Torx Truss Screw M6 X 20 |
| 280 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 350 |
517305549 |
Deep Black, RH Front Console |
| 360 |
517306022 |
LH Front Console |
| 400 |
517305061 |
Deep Black RH Console |
| 600 |
517305511 |
Deep Black, Indicator Support |
| 610 |
250000528 |
Torx Screw M5 X 20 |
| 620 |
250000958 |
Panel Nut M5 X 0.8 |
| 630 |
250000587 |
Torx Screw M5 X 26 |
| 800a |
860200928 |
Windshield 450mm |
| 800b |
860200944 |
Windshield Support Long, Yellow 2000 |
| 800c |
732610072 |
Push Nut |
| 800d |
517305008 |
RH Air Deflector |
| 800e |
517305009 |
LH Air Deflector |
| 800f |
250000720 |
Torx Screw K50 X 16 |
| 800g |
250200025 |
Washer M5 |
| 800h |
250200024 |
Rubber Washer 5 mm |
| 810 |
517303756 |
Grommet |
| 900 |
293830005 |
Rubber Bumper |
| 1000a |
517305400 |
White, RH Panel |
| 1000b |
517305058 |
Black, RH Panel Trim |
| 1000c |
250100158 |
Push Nut |
| 1000d |
293150104 |
Pop Rivet 3/16" |
| 1000e |
517305109 |
Rivet Plate |
| 1000f |
517305734 |
Pin |
| 1000g |
517304935 |
Deep Black, RH Panel Vent Grid |
| 1000h |
517124300 |
Washer |
| 1010 |
517305197 |
RH Foam Central |
| 1020 |
517305199 |
RH Foam Rear |
| 1030 |
517305451 |
Heat Shield |
| 1040 |
517305196 |
RH Foam Upper |
| 1050 |
517305198 |
RH Foam Lower |
| 1200a |
517305407 |
White, LH Panel |
| 1200b |
517304805 |
Black, LH Flashing Panel |
| 1200c |
250100158 |
Push Nut |
| 1200d |
293150104 |
Pop Rivet 3/16" |
| 1200e |
517305109 |
Rivet Plate |
| 1200f |
517305734 |
Pin |
| 1200g |
517124300 |
Washer |
| 1210 |
517305201 |
LH Center Panel Foam |
| 1220 |
517305202 |
LH Lower Panel Foam |
| 1230 |
517305200 |
LH Upper Panel Foam |
| 1240 |
517305203 |
LH Rear Panel Foam |
| 1300 |
517305279 |
Panel Latch |
| 1310 |
250000565 |
Hexalob Screw M4 X 10 |
| 1320 |
250100156 |
Weld Nut M4 |
| 1400 |
517304919 |
RH Panel Latch |
| 1410 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1600 |
517303808 |
LH Panel Latch |
| 1610 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1700a |
517305723 |
Ring |
| 1710a |
517305723 |
Ring |
| 2200a |
517303732 |
RH Mirror Support |
| 2200b |
517303733 |
LH Mirror Support |
| 2200c |
517305076 |
RH Mirror |
| 2200d |
517305077 |
LH Mirror |
| 2200e |
250000721 |
Torx Truss Screw M6 X 16 |
| 2200f |
250200024 |
Rubber Washer 5 mm |
| 2400 |
517306180 |
Headlamp |
| 2410 |
250000528 |
Torx Screw M5 X 20 |
| 2420 |
250100035 |
Jack Nut M5 |
| 2430 |
250000725 |
Screw M4 X 16 |
| 2600 |
517305010 |
Headlight Trim Cap |
| 2810 |
517307161 |
Grommet This part replaces 517302841. |
| 3010 |
517307161 |
Grommet This part replaces 517302841. |
| 3200a |
517304912 |
Deep Black, Upper Storage Access Cover |
| 3200b |
517304917 |
Cover Latch |
| 3210 |
517305157 |
Seal Joint |
| 3400 |
517305095 |
Deep Black, Trunk |
| 3600 |
517304970 |
Deep Black, Console Support |
| 3800 |
517305180 |
Deep Black, Support Console Cap |
