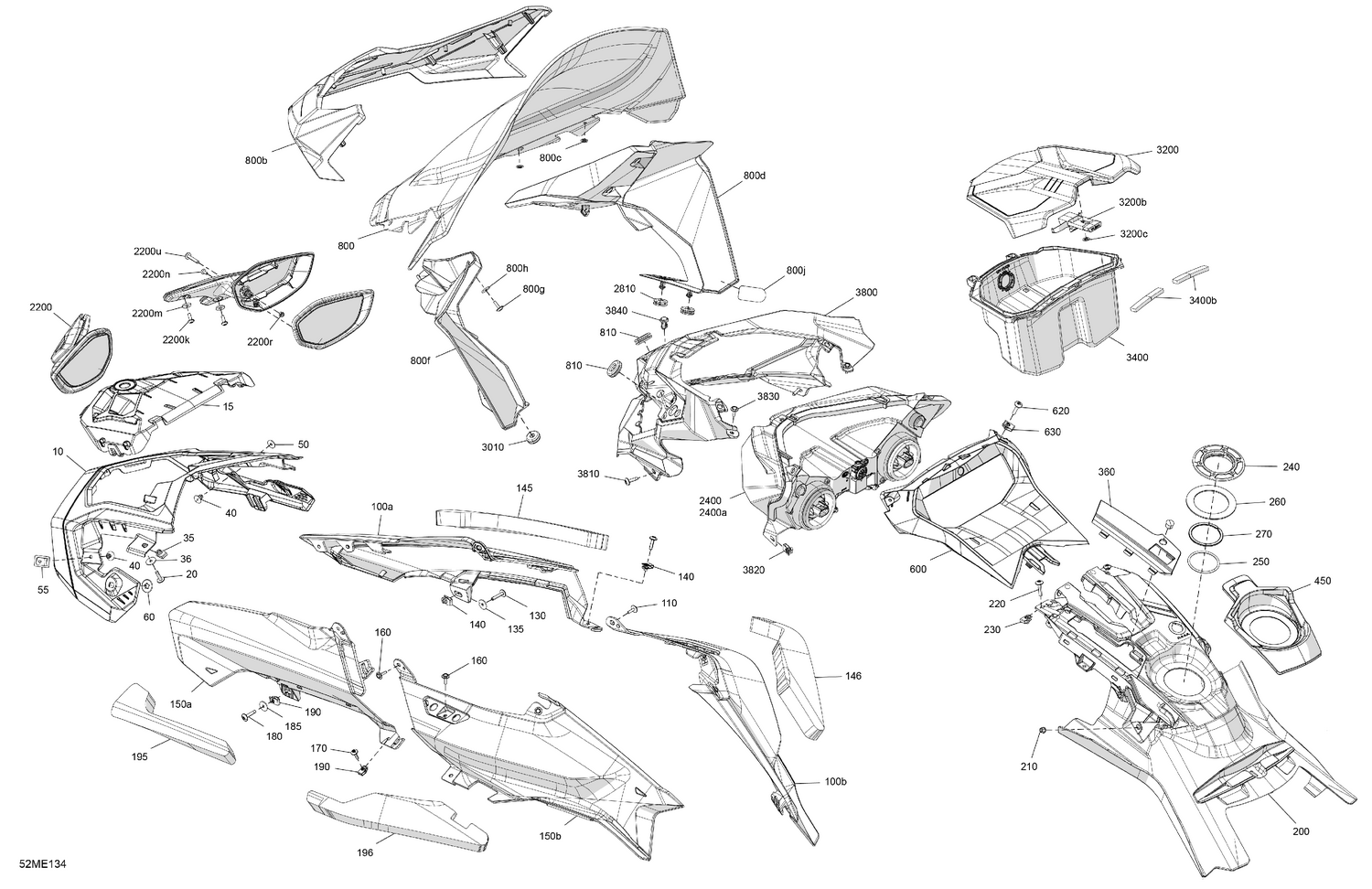

07- Body - Hood
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306284 | Deep Black, Center Hood |
| 15 | 517307593 | Central Hood Grille |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 35 | 250000958 | Panel Nut M5 X 0.8 |
| 36 | 250200166 | Washer |
| 40 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 50 | 517124300 | Washer |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 100a | 517309261 | RH Rear Hood |
| 100b | 517309262 | RH Rear Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 250200166 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 145 | 517305763 | RH Front Hood Foam |
| 146 | 517306001 | RH Hood Foam |
| 150a | 517309264 | Dusty Navy, LH Front Hood |
| 150b | 517309265 | Dusty Navy, LH Rear Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 250200166 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 195 | 517305764 | LH Front Hood Foam |
| 196 | 517306002 | LH Hood Foam |
| 200 | 517307687 | Deep Black, Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517309507 | Round Slotted Nut |
| 250 | 706002839 | O-Ring |
| 260 | 517309451 | Joint |
| 270 | 517309382 | Support |
| 360 | 517306582 | LH Front Console |
| 450 | 517309349 | Rear Console Short |
| 600 | 517307400 | Gauge Support |
| 620 | 250000586 | Torx Truss M5 X 20 |
| 630 | 250000958 | Panel Nut M5 X 0.8 |
| 800b | 517306183 | Deep Black, Windshield Support |
| 800c | 732610072 | Push Nut |
| 800d | 517306184 | RH Air Deflector |
| 800f | 517306185 | LH Air Deflector |
| 800g | 250000889 | Screw M4 X 16 |
| 800h | 250200024 | Rubber Washer 5 mm |
| 800j | 516009227 | Decal |
| 810 | 517303756 | Grommet |
| 2200k | 250000742 | Torx Screw M5 X 14 |
| 2200m | 250200024 | Rubber Washer 5 mm |
| 2200n | 250001131 | Torx Truss PT K40 x 12 |
| 2200r | 232551414 | Elastic Stop Nut M5 |
| 2200u | 250000732 | Torx Screw Nylon |
| 2400a | 415130081 | Bulb |
| 2810 | 517307161 | Grommet |
| 3010 | 517307161 | Grommet |
| 3200b | 517305779 | Latch |
| 3200c | 732610072 | Push Nut |
| 3400b | 517305157 | Seal Joint |
| 3800 | 517306301 | Headlamp Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
| 3830 | 250000725 | Screw M4 X 16 |
