Home / BRP / 2012 / YETI / 69 YETI 600 ACE, 2012 / 01- Engine And Engine Support

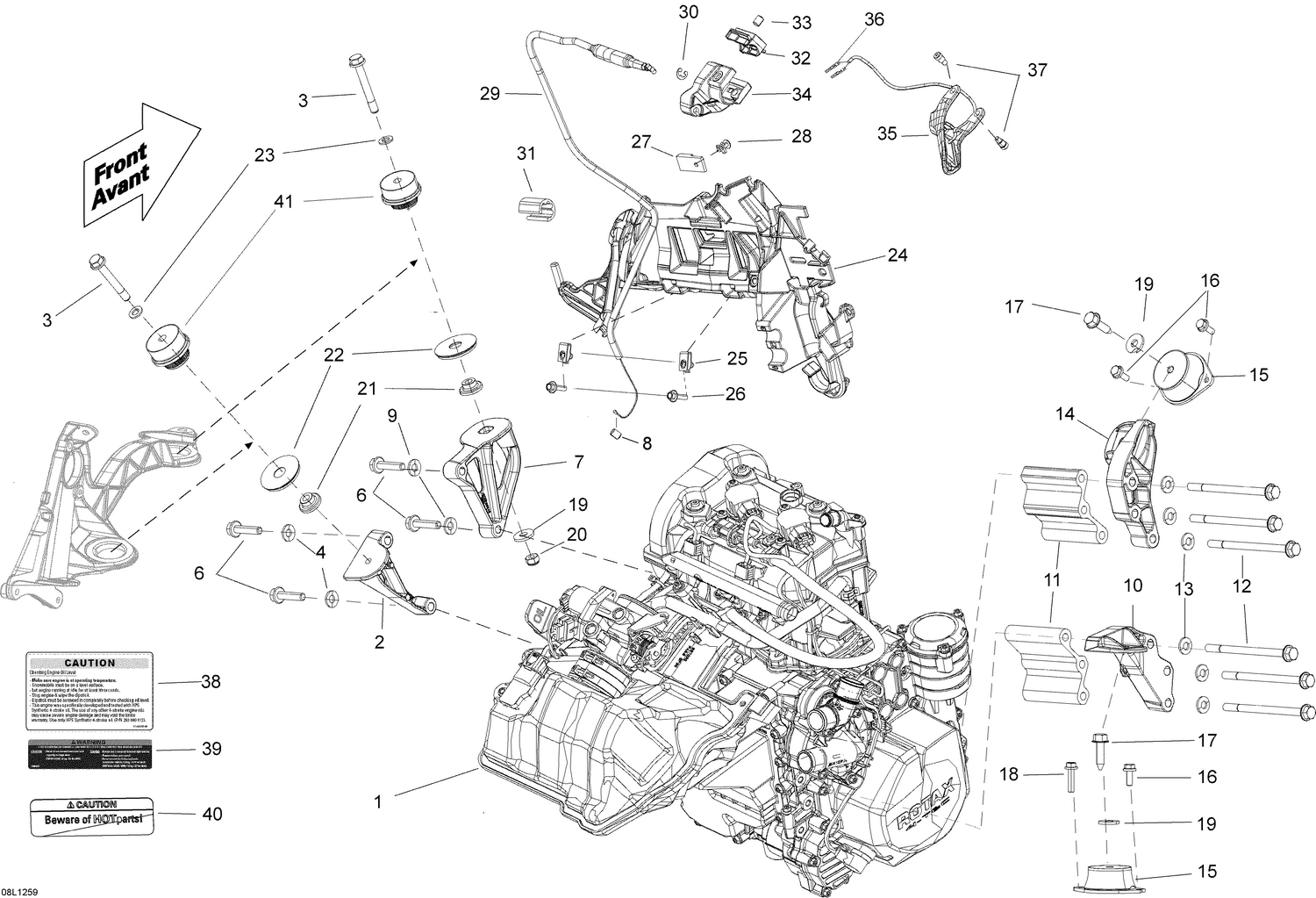

01- Engine And Engine Support

01- Engine And Engine Support

Parts (39)

RefPart NumberDescription
1 300060201 Engine 602 ACE
2 512061139 Rear Support PTO This part replaces 512060660.
3 207586044 Hex. Flange Screw M8 X 60, Scotch Grip
4 234281474 Conical Spring Washer M8
6 250000986 Hex. Flanged Screw M8 X 35 This part replaces 207583586.
7 512061140 Front Support (PTO) This part replaces 512060661.
8 707000434 Cable Guide
9 234281474 Conical Spring Washer M8
10 512060663 Front Support (MAG) This part replaces 512060498.
11 512060505 Shim
12 230582544 Hex. Flanged Screw M8 X 125, Scotch Grip
13 234281474 Conical Spring Washer M8
14 512060663 Front Support (MAG) This part replaces 512060498.
15 512060729 Rubber Mount This part replaces 512060457.
16 207561644 Hex Flange Screw M6 X 16, Scotch Grip
17 250000257 Cone Bolt, M8 X 30
18 207562534 Hex. Flange Screw M6 X 25, Scotch Grip
19 503183200 Yellow, Washer
20 232581414 Hex. Elastic Stop Nut M8
21 512060285 Spacer
22 512061203 Stopper This part replaces 512060647.
23 250200008 Flat Washer With Teflon 8 mm
24 512060509 MODULE SUPPORT - Call your local BRP dealership
25 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
26 250000724 Torx Screw M5 X 20 This part replaces 250000130.
27 270000141 Clip
28 293150027 Avdel Rivet
29 512060607 Throttle Cable
30 414274500 Circlip
31 512060313 Protector
32 512060198 Upper Housing Ass'y
33 414440800 Socket Set Screw M8 X 10
34 512060860 Lower Housing This part replaces 512060430.
35 512061252 Throttle Handle Ass'Y This part replaces 512060616.
36 515175232 Male Terminal
37 732601143 Flanged Screw
38 516005521 Engine Oil Level Caution Decal This part replaces 516004718.
39 516003927 Warning Decal
40 516004651 Caution Label, Air Intake
