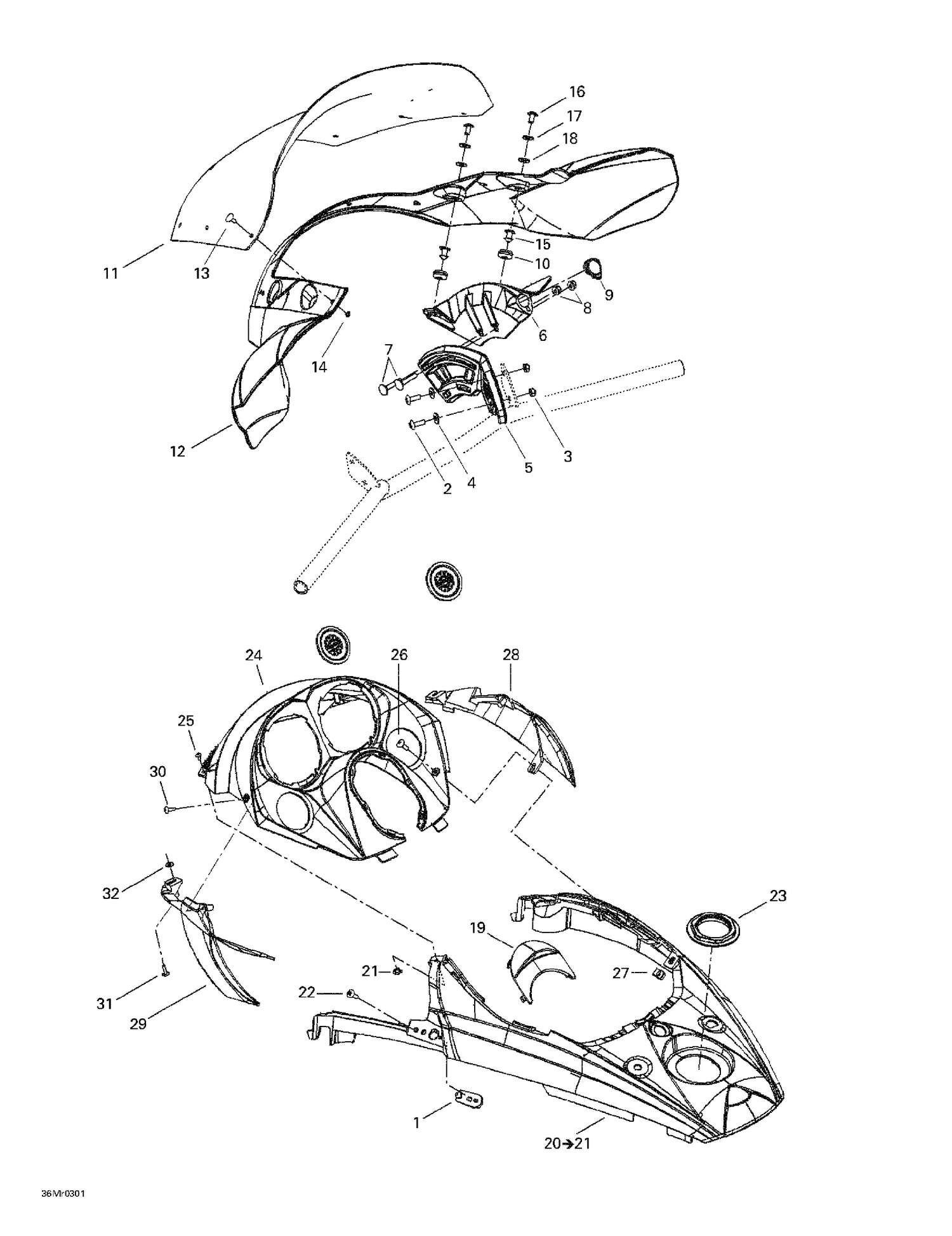

| Ref | Part Number | Description |
|---|
| 1 |
517302616 |
HOOD LATCH - Call your local BRP dealership |
| 2 |
250000123 |
Phillips Screw M6 X 16 |
| 3 |
250000135 |
Hex. Nut M6 |
| 4 |
234062100 |
Flat Washer 6 mm This part replaces 517302736. |
| 5 |
517302704 |
RH Plate Bracket |
| 6 |
517302791 |
RH Windshield Support |
| 7 |
207763554 |
Carriage Bolt M6 X 35 This part replaces 207763584. |
| 8 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 9 |
517302806 |
CAP - Call your local BRP dealership |
| 10 |
517307161 |
Grommet This part replaces 517302841. |
| 11 |
517302443 |
Windshield, Medium |
| 12 |
517302816 |
Air Deflector |
| 13 |
517303070 |
Windshield Dart This part replaces 517302842. |
| 14 |
250100034 |
Push Nut |
| 15 |
517303439 |
Knob This part replaces 517302719. |
| 16 |
208651481 |
PHILLIPS SCREW M5 X 14 - Call your local BRP dealership |
| 17 |
250200025 |
Washer M5 |
| 18 |
250200024 |
Rubber Washer 5 mm |
| 19 |
517302592 |
CONSOLE CAP - Call your local BRP dealership |
| 21 |
250100030 |
T-NUT, M4 - Call your local BRP dealership |
| 22 |
250000122 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 23 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 24 |
517302796 |
Support |
| 25 |
250000121 |
Phillips Screw M4 X 8 |
| 26 |
250000124 |
PHILLIPS SCREW M5 X 20 - Call your local BRP dealership |
| 27 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 28 |
517302546 |
RH AIR DEFLECTOR - Call your local BRP dealership |
| 29 |
517302547 |
LH AIR DEFLECTOR - Call your local BRP dealership |
| 30 |
250000723 |
Phillips Screw K40 X 16 This part replaces 250000084. |
| 31 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 517302705 |
Attache |
De Plaque GA 517302705 |
| 517302705 |
LH |
Plate Bracket 517302705 |
| 517302768 |
Air |
Deflector 517302768 |
| 517302792 |
LH |
Windshield Support 517302792 |
| 517302792 |
Support |
De Pare-Brise GA 517302792 |
| 517302793 |
Pare-Brise, |
Bas 517302793 |
| 517302793 |
Windshield, |
Bas 517302793 |
| 517302798 |
RH |
Air Deflector 517302798 |
| 517302799 |
LH |
AIR DEFLECTOR - Call your local BRP dealership 517302799 |
