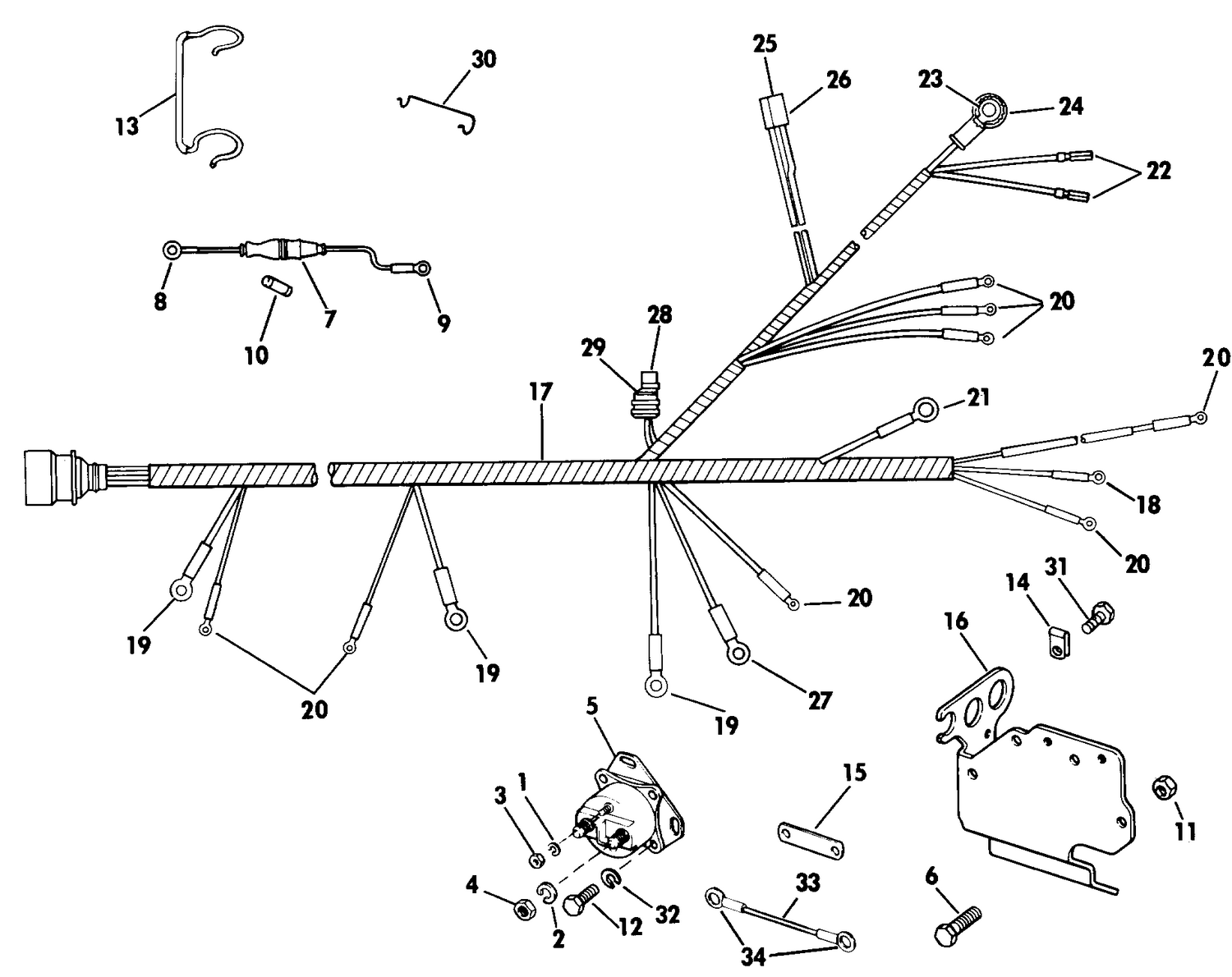

SOLENOID & CABLES GROUP
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 0985063 | SOLENOID This part replaces 0982187. |
| 6 | 0317753 | SCREW |
| 7 | 0983322 | FUSE HOLDER & LEAD |
| 11 | 0311375 | NUT |
| 12 | 0328731 | VIS, câble de verrouillage This part replaces 0307055. |
| 14 | 0909424 | CLAMP |
| 15 | 0910494 | BUS BAR |
| 16 | 0912215 | BRACKET This part replaces 0910545. |
| 17 | 0983243 | CABLE ASSY |
| 21 | 3852527 | RING TERMINAL This part replaces 0911523. |
| 25 | 0510471 | CONNECTOR |
| 26 | 0510469 | TAB |
| 27 | 0910626 | RING TERMINAL |
| 29 | 0511989 | CONNECTOR |
| 30 | 3852499 | RETAINER, Fuse This part replaces 0910330. |
| 33 | 0982391 | LEAD ASSY |
