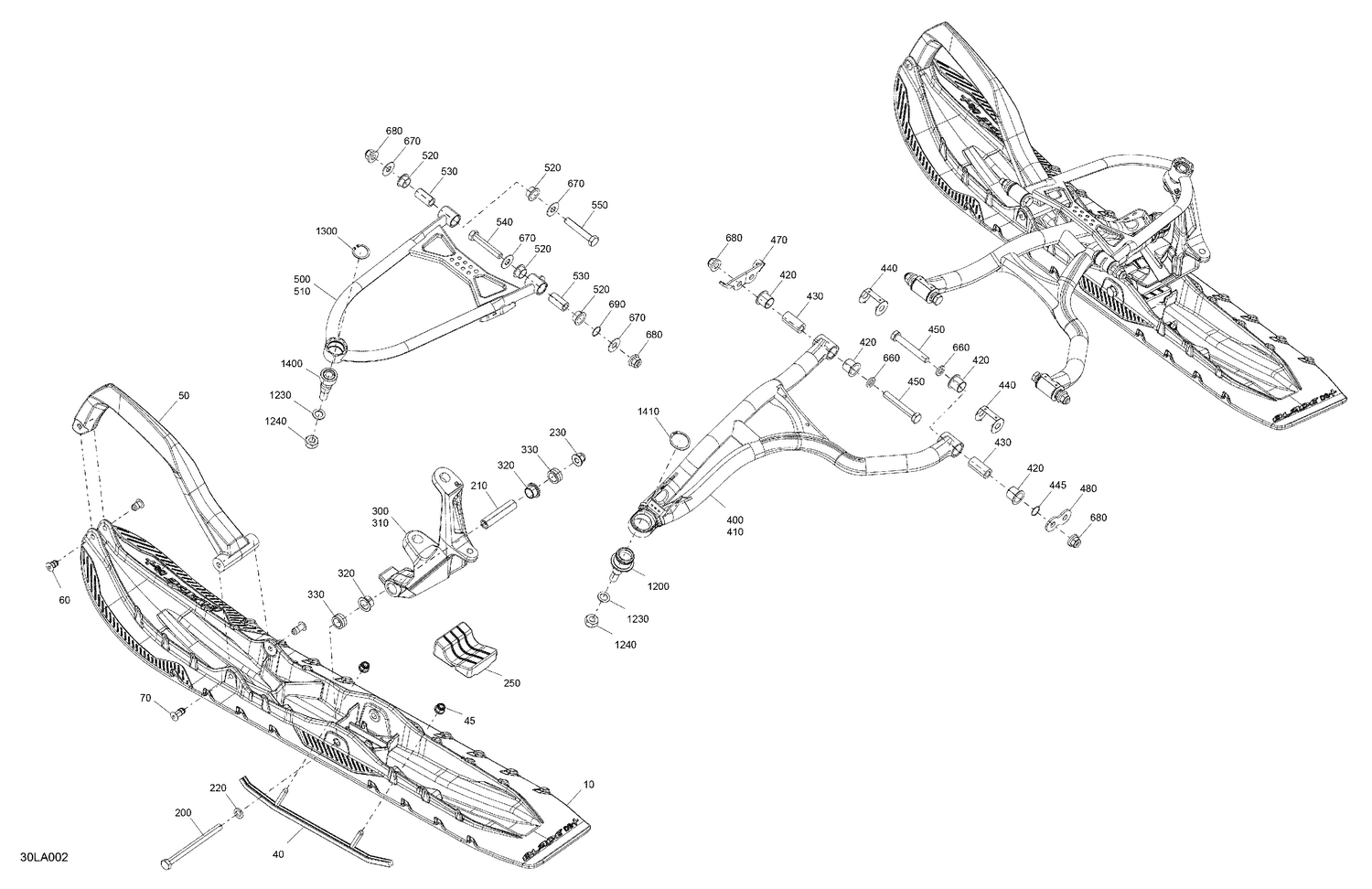

05- Suspension - Front
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 505074691 | Ski Blade |
| 40 | 860201044 | Carbide Runner Kit (Square Runner) |
| 45 | 233281414 | Hex. Flange Elastic Nut M8 |
| 50 | 505073513 | Orange, Handle |
| 60 | 505071812 | Retainer 17mm long |
| 70 | 505072133 | Retainer 23mm Long |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 505073691 | Ski Axle |
| 220 | 503192496 | Washer |
| 230 | 233201464 | Hex. Elast. Flanged Nut M10 x 1.5 |
| 250 | 505072594 | Ski Stopper |
| 300 | 505074557 | LH Anodized Ski Leg |
| 310 | 505074558 | RH Anodized Ski Leg |
| 320 | 505072690 | Leg Bushing |
| 330 | 505074325 | Spacer |
| 400 | 505074441 | RH Lower Arm Bend 39 |
| 410 | 505074440 | LH Lower Arm Bend 39 |
| 420 | 505073330 | Bushing |
| 430 | 505072209 | Bushing |
| 440 | 505072634 | Wear Plate |
| 445 | 505072448 | O-Ring |
| 450 | 250001024 | Screw Hex. M10 X 70 |
| 470 | 505073723 | Wear Plate |
| 480 | 505073844 | Plate |
| 500 | 505074641 | LH Arm |
| 510 | 505074642 | Upper Arm |
| 520 | 505073329 | Bushing |
| 530 | 505072143 | Aluminum Bushing |
| 540 | 250001023 | Screw Hex. M10 X 60 |
| 550 | 250001023 | Screw Hex. M10 X 60 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 1200 | 505074009 | Ball Joint |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1300 | 293370070 | Circlip |
| 1400 | 505072913 | Upper Ball Joint |
