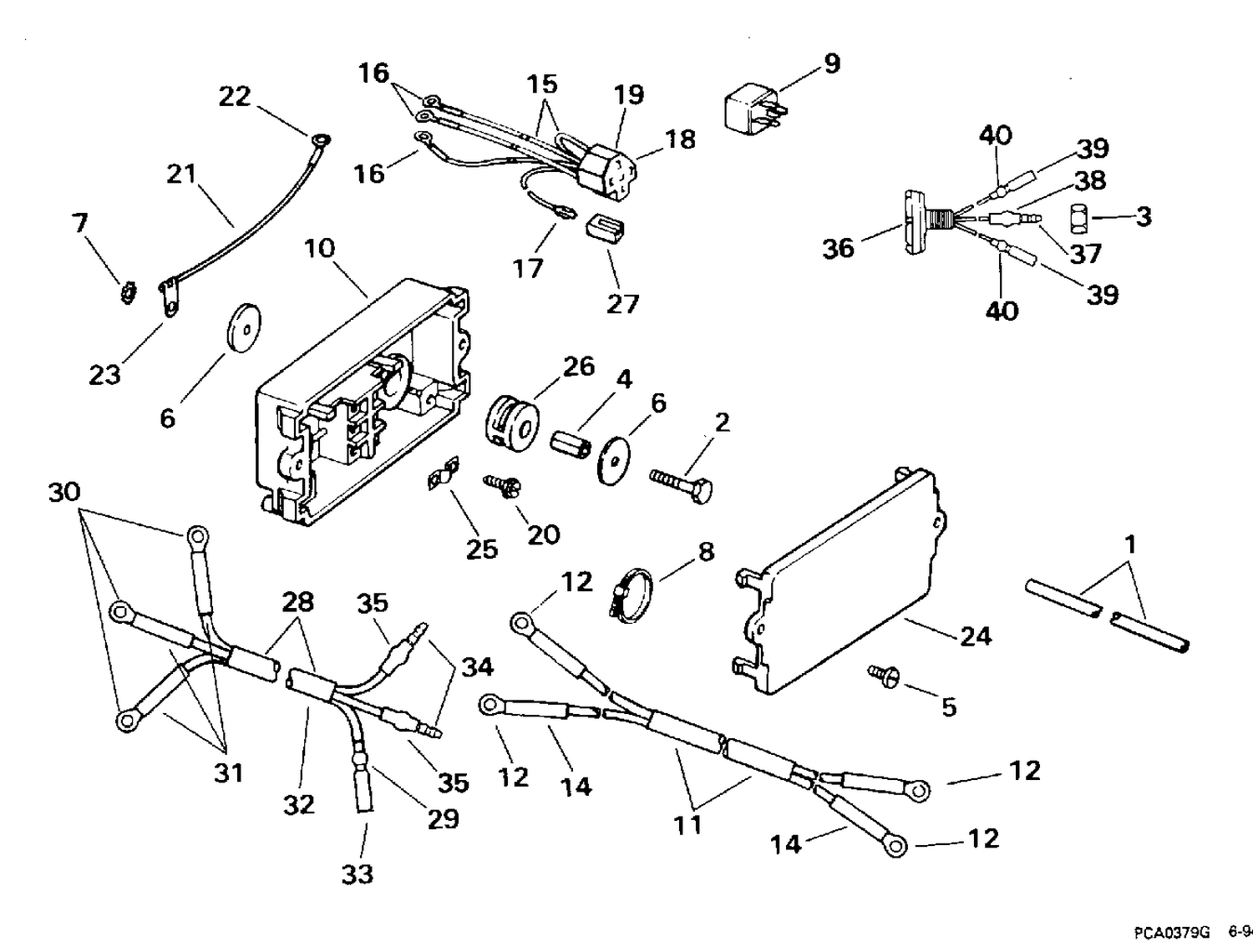

| Ref | Part Number | Description |
|---|
| 1 |
0512246 |
PIN RECEPTACLE, Coil |
| 2 |
0328726 |
SCREW (Use existing coil screw) |
| 4 |
0331984 |
CLAMP, Hose |
| 5 |
0329182 |
VIS, borne |
| 8 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 |
0512776 |
BASE Junction box |
| 11 |
0583010 |
CABLE ASSY |
| 15 |
0582986 |
CONN ASSY., Blue leads (trim up) |
| 15 |
0582987 |
CONN ASSY., Green leads (trim down) |
| 20 |
0329182 |
VIS, borne |
| 21 |
0582671 |
LEAD ASSY. Junction box ground |
| 24 |
0583707 |
COVER ASSY |
| 25 |
0315004 |
FIL DE LIAISON, bornier |
| 26 |
0315057 |
MOUNT, Bracket |
| 28 |
0583909 |
CABLE, Junction box switch |
| 36 |
0585146 |
INTERRUPTEUR CORRECTION D'ASSIETTE/RELEVAGE This part replaces 0584841. |
| 0584358 |
0584358 |
JUNCTION BOX & COVER ASSY. |
