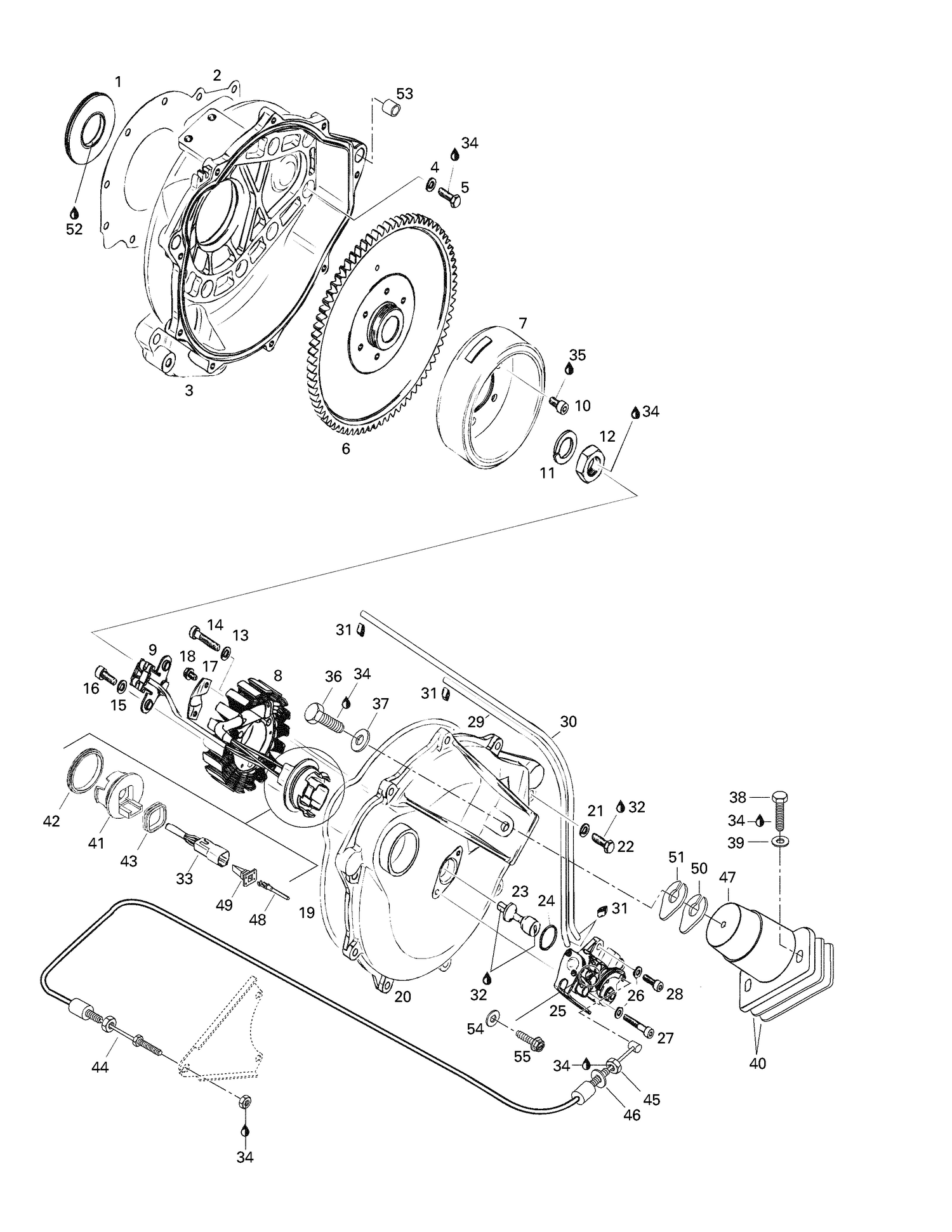

| Ref | Part Number | Description |
|---|
| 1 |
420830749 |
Oil Seal This part replaces 290830749. |
| 2 |
290931470 |
Gasket |
| 3 |
290810711 |
Ignition Housing (White) |
| 4 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership This part replaces 290945751. |
| 5 |
207162544 |
Hex. Screw M6 X 25 This part replaces 290240036. |
| 6 |
290966442 |
Flywheel Hub |
| 7 |
290886598 |
MAGNETO FLYWHEEL - Call your local BRP dealership |
| 8 |
290886588 |
STATOR PLATE ASS'Y - Call your local BRP dealership |
| 9 |
420966832 |
Sensor Ass'y This part replaces 290965648. |
| 10 |
205061260 |
Socket Head Screw M6 X 12 This part replaces 290841336. |
| 11 |
290945757 |
Lock Washer 18 mm |
| 12 |
420942220 |
HEX. NUT M18 - Call your local BRP dealership This part replaces 290942220. |
| 13 |
290445330 |
Lock Washer |
| 14 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 290840886. |
| 15 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership This part replaces 290945751. |
| 16 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 290241236. |
| 17 |
290853080 |
Retainer Plate |
| 18 |
215050848 |
Hex. Screw M5 x 8 |
| 19 |
420950360 |
O-RING - Call your local BRP dealership This part replaces 290950360. |
| 20 |
290810721 |
Ignition Cover |
| 21 |
290845381 |
Lock Washer 6 mm |
| 22 |
290240038 |
Hex. Screw M6 x 25 |
| 23 |
290837330 |
Shaft Oil Pump |
| 24 |
293300018 |
O-RING - Call your local BRP dealership |
| 25 |
420887333 |
PUMP-OIL ASSY. - Call your local BRP dealership This part replaces 290887332. |
| 26 |
290845389 |
Lock Washer |
| 27 |
290940883 |
Socket Head Screw M5 x 30 |
| 28 |
215951660 |
Cylindrical Slotted Screw M5 x 16 |
| 29 |
219704404 |
Oil Hose 1500Mm Long |
| 30 |
219704404 |
Oil Hose 1500Mm Long |
| 31 |
290256408 |
Clamp |
| 32 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 33 |
710001539 |
Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 34 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 35 |
219703000 |
Sealant Loctite 648 This part replaces 290899788. |
| 36 |
207181860 |
Hex. Screw M8 X 18 This part replaces 215081860. |
| 37 |
234082600 |
Flat Washer 8 mm, Stainless This part replaces 213200011. |
| 38 |
207184060 |
Hex. Screw M8 X 40 This part replaces 215084060. |
| 39 |
234081600 |
Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 40 |
270000006 |
Shim 0.4 mm |
| 41 |
270000138 |
Adaptor |
| 42 |
293300033 |
Gasket |
| 43 |
293200030 |
Gasket |
| 44 |
270000214 |
Injection Cable Ass'y |
| 45 |
232160600 |
Hex. Nut M6 This part replaces 212100003. |
| 46 |
234161601 |
Lock Washer Helical M6 This part replaces 217361500. |
| 47 |
270000297 |
Rubber Mount |
| 48 |
278000631 |
Male Terminal |
| 49 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 50 |
270000024 |
SHIM 0.4 MM - Call your local BRP dealership |
| 51 |
270000025 |
SHIM 1.3 MM - Call your local BRP dealership |
| 52 |
413707000 |
Dow Corning 111, 150 g |
| 53 |
290229153 |
Dowel Tube |
| 54 |
270500304 |
Packing |
| 55 |
270500305 |
Screw-Ventilation |
| 56 |
290886395 |
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
