Home / BRP / JOHNSON / 1970 / 40 / 40E70A 1970 / GEARCASE GROUP

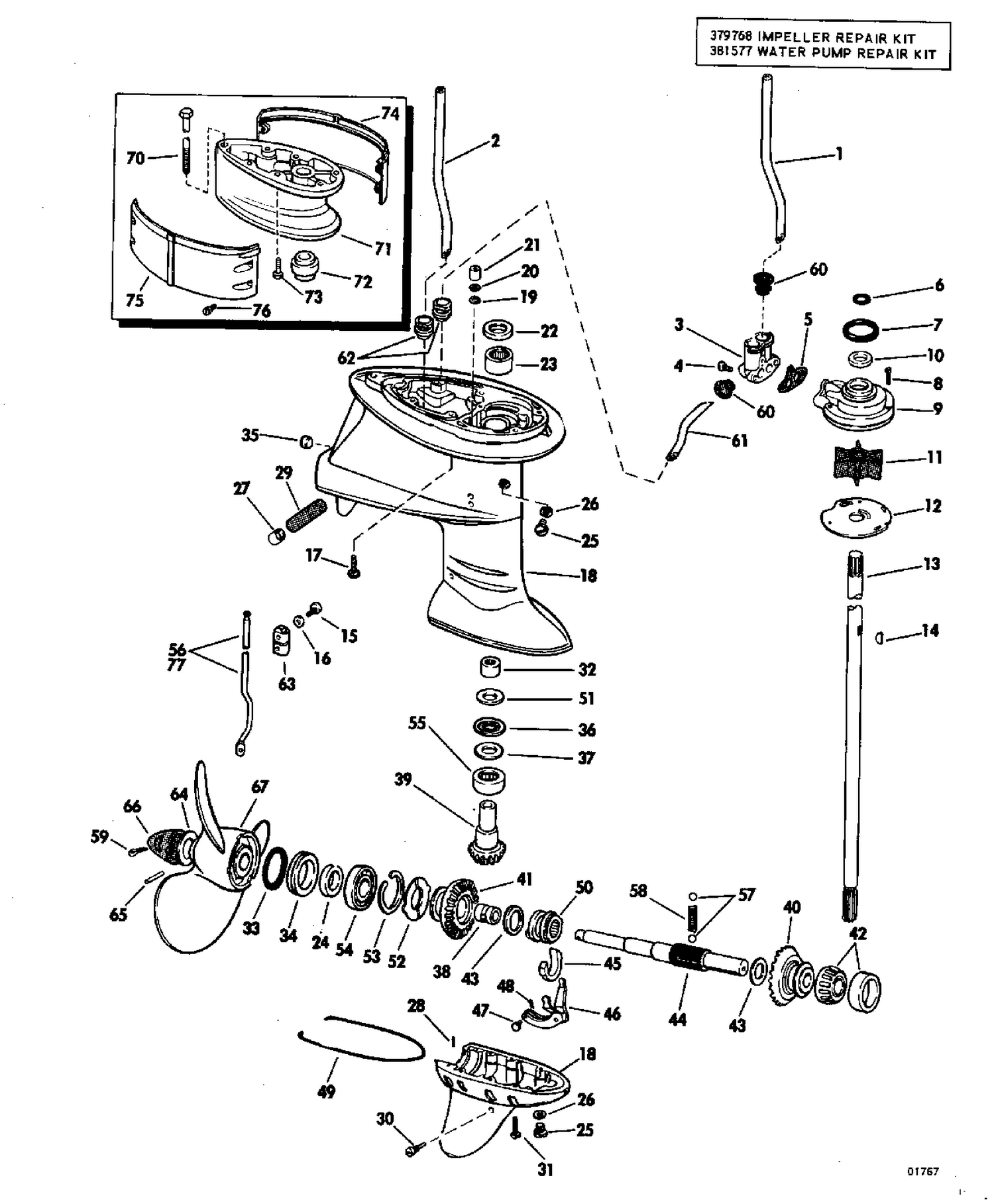

GEARCASE GROUP

GEARCASE GROUP

Parts (59)

RefPart NumberDescription
1 0305492 TUBE, Water, in
1 0305493 TUBE WATER, Long, out 5 INCH LONGER PARTS
2 0314332 TUBE, Water, out
2 0314333 TUBE, Water long out 5 INCH LONGER PARTS
3 0314335 CAP, Impeller housing
4 0302319 SCREW, Impeller cap
5 0312614 GASKET, Impeller cap
7 0202591 O RING
8 0303714 SCREW
9 0381576 IMPELLER HOUSING ASSY
10 0321459 OIL RETAINER, Housing This part replaces 0305306.
11 0377230 IMPEELER ASSEMBLY
12 0312613 PLATE, Impeller housing
13 0379875 DRIVE SHAFT ASSEMBLY STANDARD
13 0379876 DRIVE SHAFT ASSY 5 INCH LONGER PARTS
17 0309244 SCREW
18 0382920 GEARCASE & BEARING ASSEMBLY
20 0301877 O RING SHIFT ROD
28 0300611 AXE, turbine vers arbre d'entraînement
31 0330562 SCREW, Gearcase This part replaces 0304070.
34 0397186 HOUSING, Oil retainer This part replaces 0303050.
36 0376857 BEARING, Thrust
37 0304796 PINION WASHER , Lower
39 0322605 PINION This part replaces 0308692.
42 0375761 BEARING, Roller
43 0302565 WASHER, Thrust
44 0312867 SHAFT, Propeller
45 0305286 CRADLE, Clutch dog
46 0305288 LEVER ,Shifter
49 SEAL, Gearcase
50 0312866 DOG, Shifter clutch
51 0304795 PINION WASHER, Upper
52 0302743 WASHER, Thrust
53 0302528 RING, Retaining, gearcase
54 0307545 BEARING, Ball, prop. shaft
55 0376858 BEARIN, Pinion
56 0305287 ROD, Shif, lower, standard
60 0304026 GROMMET
61 0314334 TUBE, Water, intake gearcase, upper
62 0314331 GROMMET, Water tube
63 0304081 CONNECTOR 5 " EXTENSION KIT
64 0304576 THRUST WASHER
65 0304575 DRIVE PIN, Propeller
66 0305294 NUT, Propeller
67 0376738 PROPELLER, 11 x 9
67 0378571 PROPELLER, 10-3/8 x 14
67 0380637 PROPELLER 10-1 2 X 12
67 0384460 PROPELLER, 10-1 2 x 13
67 0385955 PROPELLER, 10-3/4 x 11 This part replaces 0378581.
71 0308334 EXTENSION 5 INCH LONGER PARTS
72 0305571 ADAPATER 5 INCH LONGER PARTS
73 0308429 SCREW
74 0309038 EXTENSION, Exh cover port 5 INCH LONGER PARTS
75 0309039 EXTENSION, Eshaust cover, starboard 5 INCH LONGER PARTS
76 0305745 SCR., Lwr. mtr. cover frt. and rear
0305642 0305642 SPIRNG, Reverse lock 5 INCH LONGER PARTS
0378726 0378726 SET OF GEARS
0382921 0382921 GEARCASE & BEARING ASSEMBLY
0383063 0383063 EXTENSIN KIT 5 INCH LONGER PARTS
