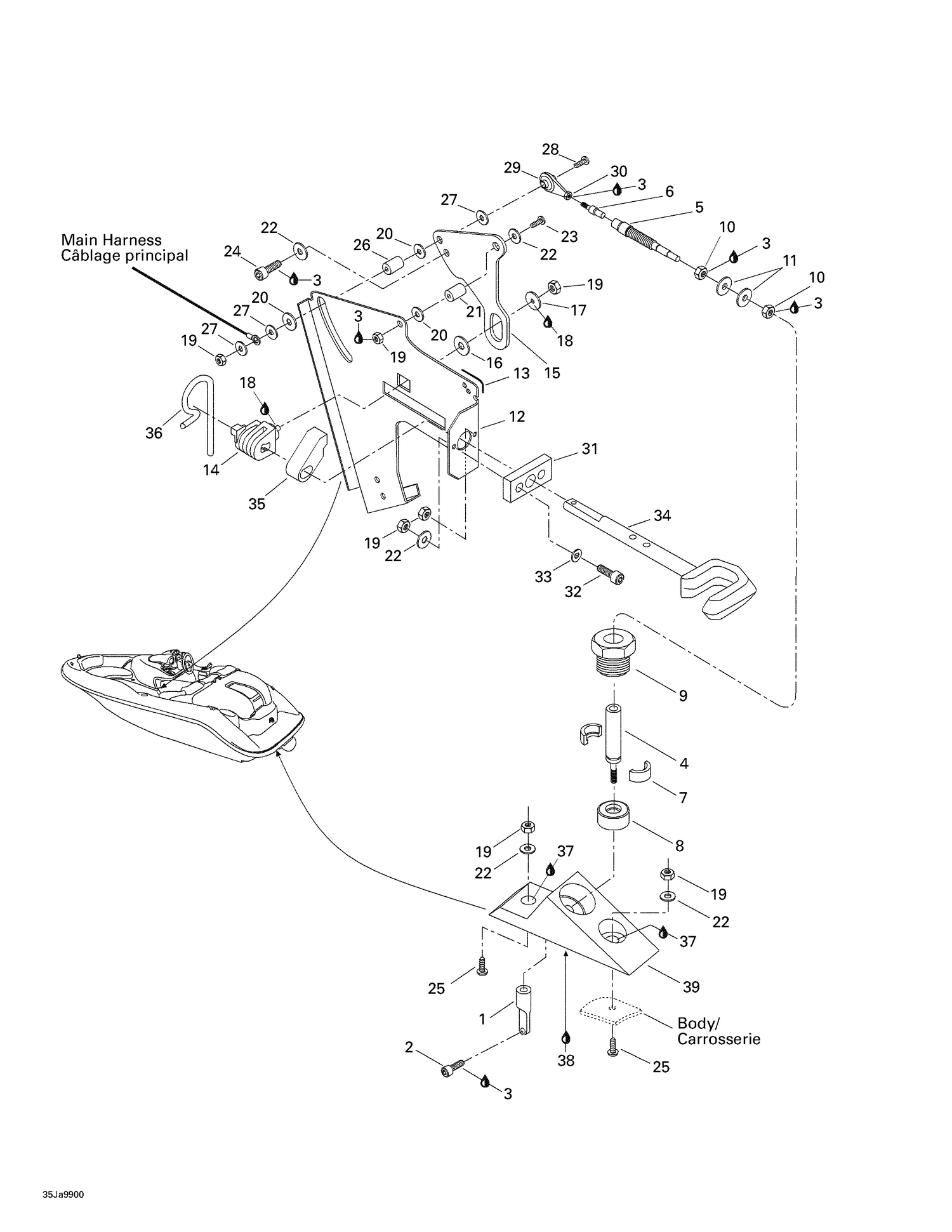

05- Weedless System
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204200006 | Joint |
| 2 | 211000103 | Pivot Screw |
| 3 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 4 | 204200026 | Weedless Cable |
| 5 | 277000473 | Boot, Large |
| 6 | 277000466 | Boot, Small |
| 7 | 204200009 | HALF RING - Call your local BRP dealership |
| 8 | 204200010 | Rubber Washer |
| 9 | 277001729 | Steering Cable Lock This part replaces 277000052. |
| 10 | 212100006 | Hex. Jam Nut |
| 11 | 213200017 | Flat Washer |
| 12 | 204200014 | Weedless Support |
| 13 | 219704353 | Was 271000110 Protection Trim |
| 14 | 271000269 | Sliding Block |
| 15 | 204200018 | Triangular Lever |
| 16 | 211200012 | Flat Washer 20 mm |
| 17 | 271000061 | Washer |
| 18 | 293550010 | Synthetic Grease, 400 G |
| 19 | 232561600 | Hex. Elastic Stop Nut M6 |
| 20 | 217001000 | Flat Washer 10 mm |
| 21 | 271000293 | Bushing |
| 22 | 234061600 | Stainless Flat Washer M6 |
| 23 | 207162560 | Hex. Screw M6 X 25 |
| 24 | 205060860 | SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership |
| 25 | 208563060 | OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 26 | 271000293 | Bushing |
| 27 | 234062600 | Flat Washer M6, Stainless |
| 28 | 207064060 | Hex. Screw M6 X 40 |
| 29 | 277000153 | BALL JOINT - Call your local BRP dealership |
| 30 | 212100005 | Hex. Nut |
| 31 | 271000057 | Guide Plate |
| 32 | 205462560 | SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 33 | 234060600 | FLAT WASHER 6 MM - Call your local BRP dealership |
| 34 | 204200015 | Weedless Handle |
| 35 | 271000268 | Catch |
| 36 | 271000270 | Spring |
| 37 | 296000309 | Silicone Sealant 51388, 300 ml |
| 38 | 219701421 | Instant Gasket This part replaces 293800053. |
