| Ref | Part Number | Description |
|---|
| 1 |
0384608 |
HOUSING & PIN, Left half |
| 3 |
0308514 |
SPRING, Throttle friction detent |
| 4 |
0308515 |
DETENT, Throttle friction |
| 6 |
0310699 |
SPRING, Idle lever |
| 7 |
0310700 |
LEVER, Idle adjustment |
| 8 |
0309072 |
SCREW, Detent spring, up. throt. cable anchr |
| 9 |
0308517 |
ROLLER, Lever to box |
| 10 |
0308513 |
SPRING, Roller |
| 10 |
516010651 |
BRP Logo 20 MM x 2 MM |
| 11 |
0311622 |
LEVER, Control housing |
| 12 |
0311617 |
KNOB, Lever |
| 13 |
0313776 |
SCREW, Knob to link |
| 14 |
0310745 |
CAM, Lever |
| 15 |
0310747 |
SCREW, Cam to lever |
| 15 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 16 |
0308530 |
SPACER, Control housing |
| 17 |
0310691 |
BUSHING, Lever |
| 18 |
0311016 |
HOUSING, Cable hald |
| 21 |
0308518 |
SCREW, Control housing |
| 22 |
0907947 |
TRANSFER, Idle adjustment |
| 23 |
0907943 |
TRANSFER, Shift housing |
| 24 |
0308511 |
PIN, Lock, cable to link |
| 25 |
0311017 |
LINK, Idle adjustment |
| 29 |
0173506 |
SCREW This part replaces 0308037. |
| 30 |
0173506 |
SCREW This part replaces 0308036. |
| 30 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 31 |
0308034 |
GUIDE, Casing |
| 32 |
0308035 |
INSERT, Casing guide |
| 33 |
0379650 |
LINK |
| 34 |
0310689 |
WASHER, Casing guide link |
| 36 |
0310690 |
WASHER, Link |
| 37 |
0310692 |
SCREW, Link to housing |
| 38 |
0311618 |
CAP |
| 39 |
0311619 |
LEVER |
| 40 |
0311621 |
SCREW, Housing to housing |
| 42 |
0383375 |
SWITCH & CABLE ASSY |
| 44 |
0311741 |
CONECTOR |
| 46 |
0907945 |
TRANSFER |
| 47 |
0315602 |
SCREW |
| 48 |
0315011 |
PAN HEAD SCREW |
| 50 |
0303887 |
WASHEER, Pin to swivel bracket |
| 52 |
0307063 |
O RING |
| 54 |
0385958 |
CLAMP & SC R.,Casing guide |

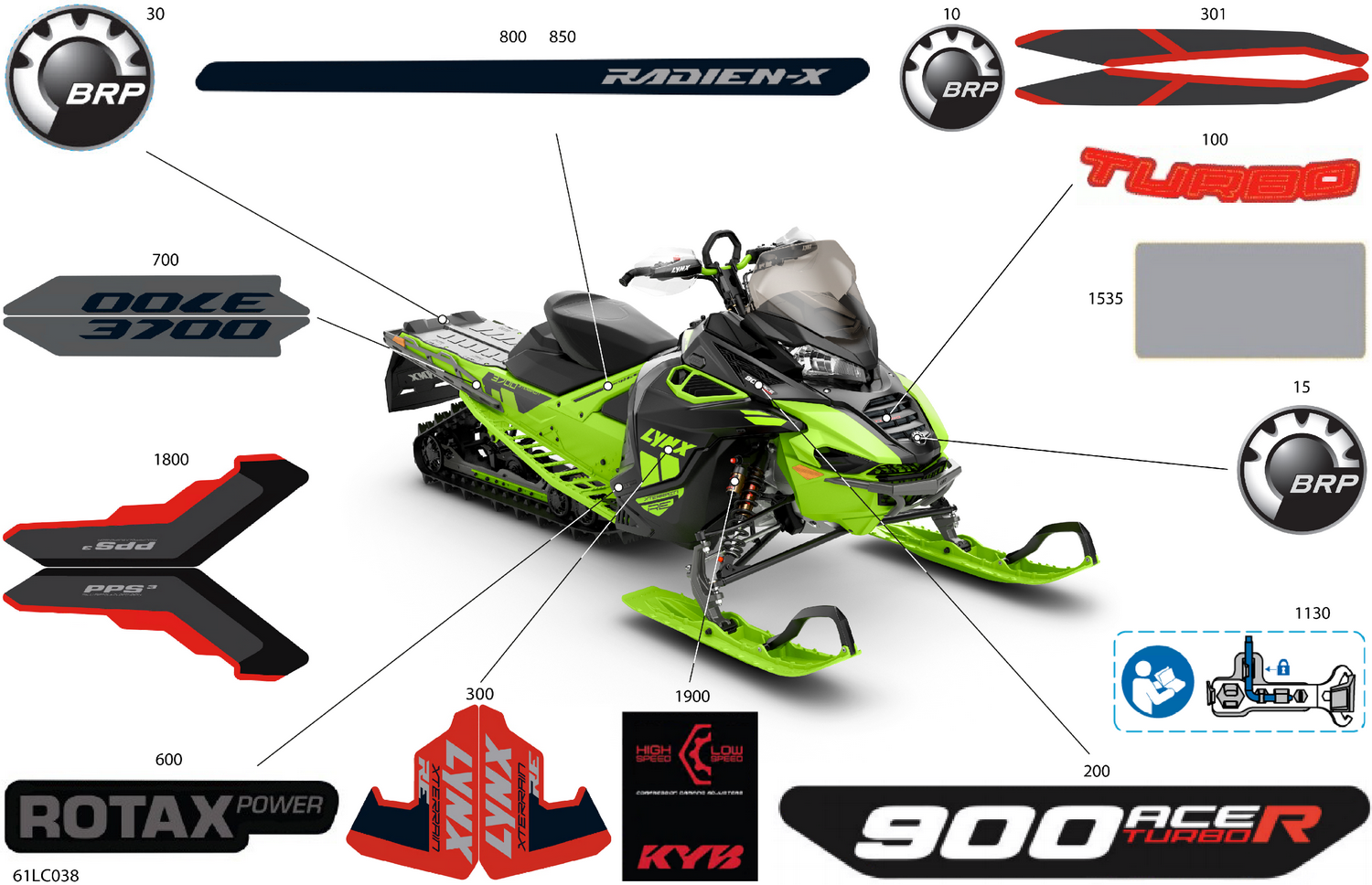

| 100 |
516009698 |
Hood Decal "Turbo" |
| 200 |
516011005 |
Upper Side Panel Decal |
| 300 |
516011102 |
LH/RH Panel Decal |
| 301 |
516011103 |
LH/RH Panel Decal |
| 600 |
516008760 |
Decal "Rotax Power" |
| 700 |
516011100 |
LH/RH Tunnel Decal |
| 800 |
516011110 |
LH Cross Member Decal |
| 850 |
516011111 |
RH Cross Member Decal |
| 1130 |
516011629 |
Tool Instruction Label |
| 1535 |
516009954 |
Protective Decal |
| 1800 |
516011589 |
Decal PPS3 |
| 0979898 |
0979898 |
REMOTE CONTROL ASSY, Black |
