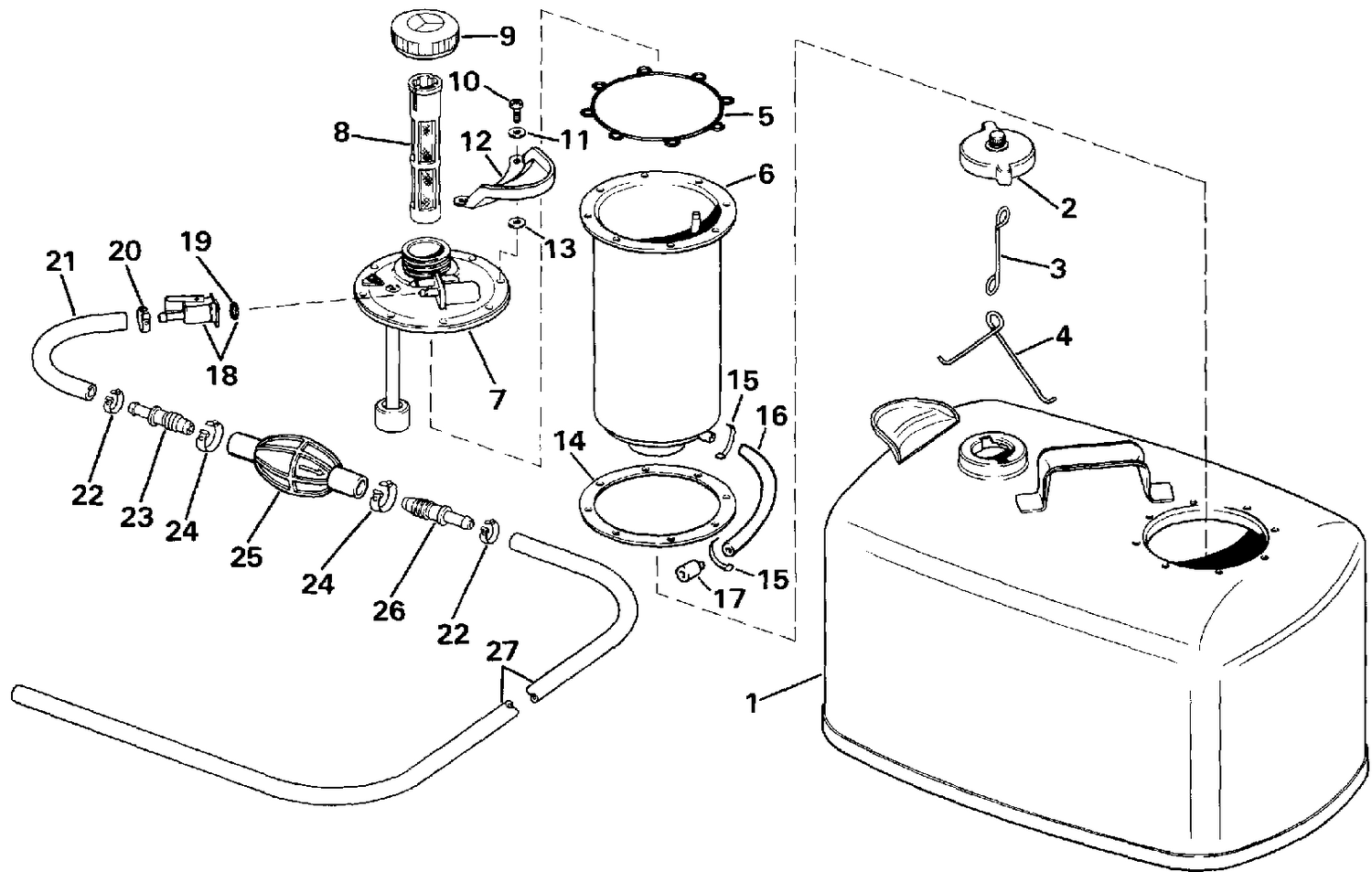

| Ref | Part Number | Description |
|---|
| 1 |
0174531 |
TANK & PUMP ASSY. |
| 1 |
0174532 |
TANK & PUMP ASSY. |
| 2 |
0388933 |
CAP ASSY., Fuel |
| 5 |
0124764 |
SEAL |
| 6 |
0174783 |
TANK, PUMP & FILTER ASSY. This part replaces 0174441. |
| 7 |
0174620 |
COVER ASSY. This part replaces 0174442. |
| 10 |
0174481 |
SCREW & SEAL ASSY. |
| 11 |
0125004 |
SEAL |
| 12 |
0124798 |
BRACKET |
| 13 |
0125004 |
SEAL |
| 14 |
0124955 |
GASKET |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
HOSE, |
Fuel pickup 292mm (11-1/2") |
| 17 |
0173637 |
FUEL PICKUP |
| 18 |
0396390 |
CONNECTOR ASSY., Fuel |
| 20 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 21 |
HOSE, |
Short, 406mm (16") long |
| 25 |
0328492 |
BULB, Primer |
| 27 |
HOSE, |
Long, 2515mm (99") long |
| 0174443 |
0174443 |
OIL RESERVOIR ASSY. |
| 0398549 |
5008609 |
FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0398549. |
