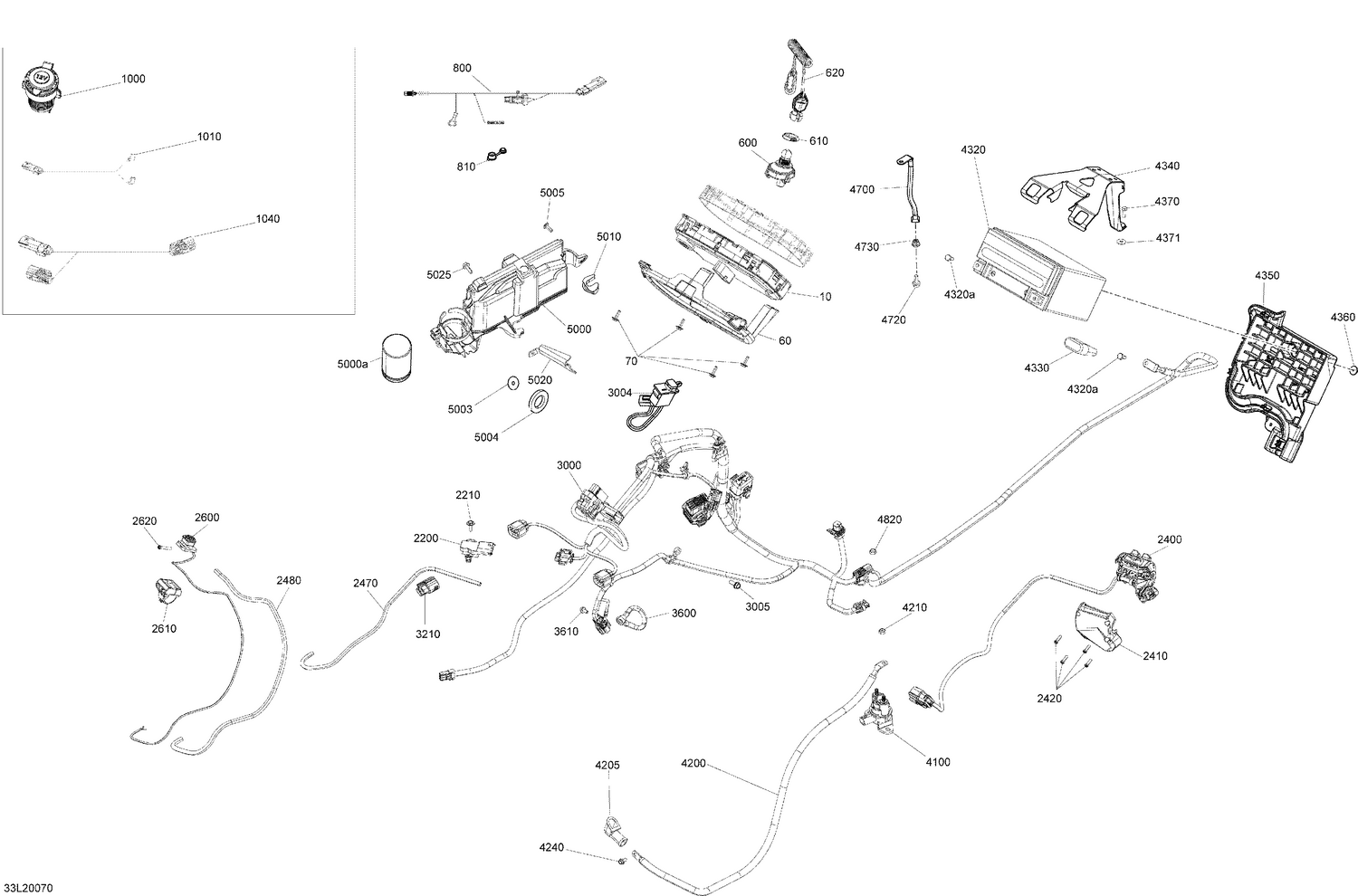

10- Electric - System - LTD
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 1040 | 515178153 | Extension Harness |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3000 | 515178933 | Chassis Wiring Harness |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3600 | 515178248 | Ground Wire |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4100 | 278003012 | Starter Relay |
| 4200 | 515178553 | Positive Wire |
| 4205 | 710000495 | Protector Cap |
| 4240 | 207551044 | Hex. Flange Screw M5 X 10 |
| 4320 | 415129898 | Battery YUASA YTX20HL |
| 4320a | 250000282 | Battery Bolt Kit |
| 4330 | 710001817 | Protector Cap |
| 4340 | 515178695 | Battery Strip |
| 4350 | 515178690 | Battery Support Under |
| 4360 | 293150103 | Pop Rivet 3/16 |
| 4370 | 250000793 | Hex. Flange Screw M6 X 25 |
| 4371 | 224061121 | Flat Washer |
| 4700 | 515178564 | Cable |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4730 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 5000a | 515177272 | Capacitor |
| 5003 | 250200140 | Washer |
| 5004 | 250200024 | Rubber Washer 5 mm |
| 5005 | 250000724 | Torx Screw M5 X 20 |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178930 | Support This part replaces 515178342. |
