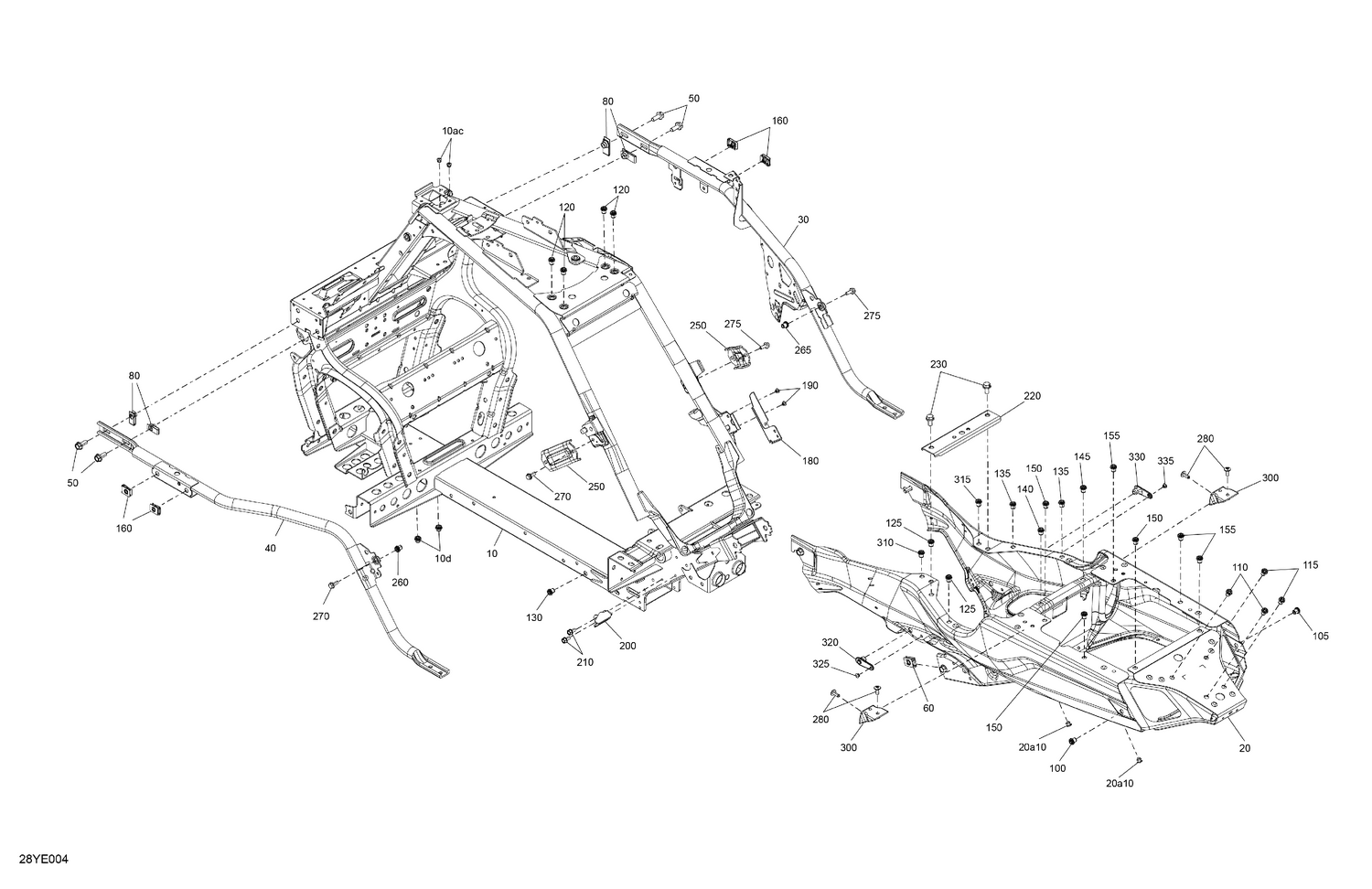

06- Frame - System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10ac | 293150293 | Pop Rivet 3/16 X ,425 |
| 10d | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 20a10 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 50 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 60 | 250100069 | Panel Nut M8 X 1.25 |
| 80 | 250100118 | Panel Nut M8 X 1.25 |
| 100 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 105 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 110 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 115 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 120 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 125 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 135 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 140 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 145 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 150 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 155 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 160 | 250100208 | Panel Nut M6 X 1.0 |
| 180 | 705212613 | RH Connector Support |
| 190 | 390402400 | Pop Rivet 3/16" |
| 200 | 705211305 | Suspension Stopper |
| 210 | 210261250 | Hex. Flange Screw M6 X 12 |
| 220 | 705211638 | Front Upper Cross Member Ass'y |
| 230 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 250 | 705018558 | Chassis Reinforcement |
| 260 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 265 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 270 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 275 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 280 | 250000717 | Torx Head Screw M6 X 16 |
| 300 | 705602275 | Machined Module Support |
| 310 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 315 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 320 | 705602322 | Machined Anchorage Support |
| 325 | 390402400 | Pop Rivet 3/16" |
| 330 | 705602322 | Machined Anchorage Support |
