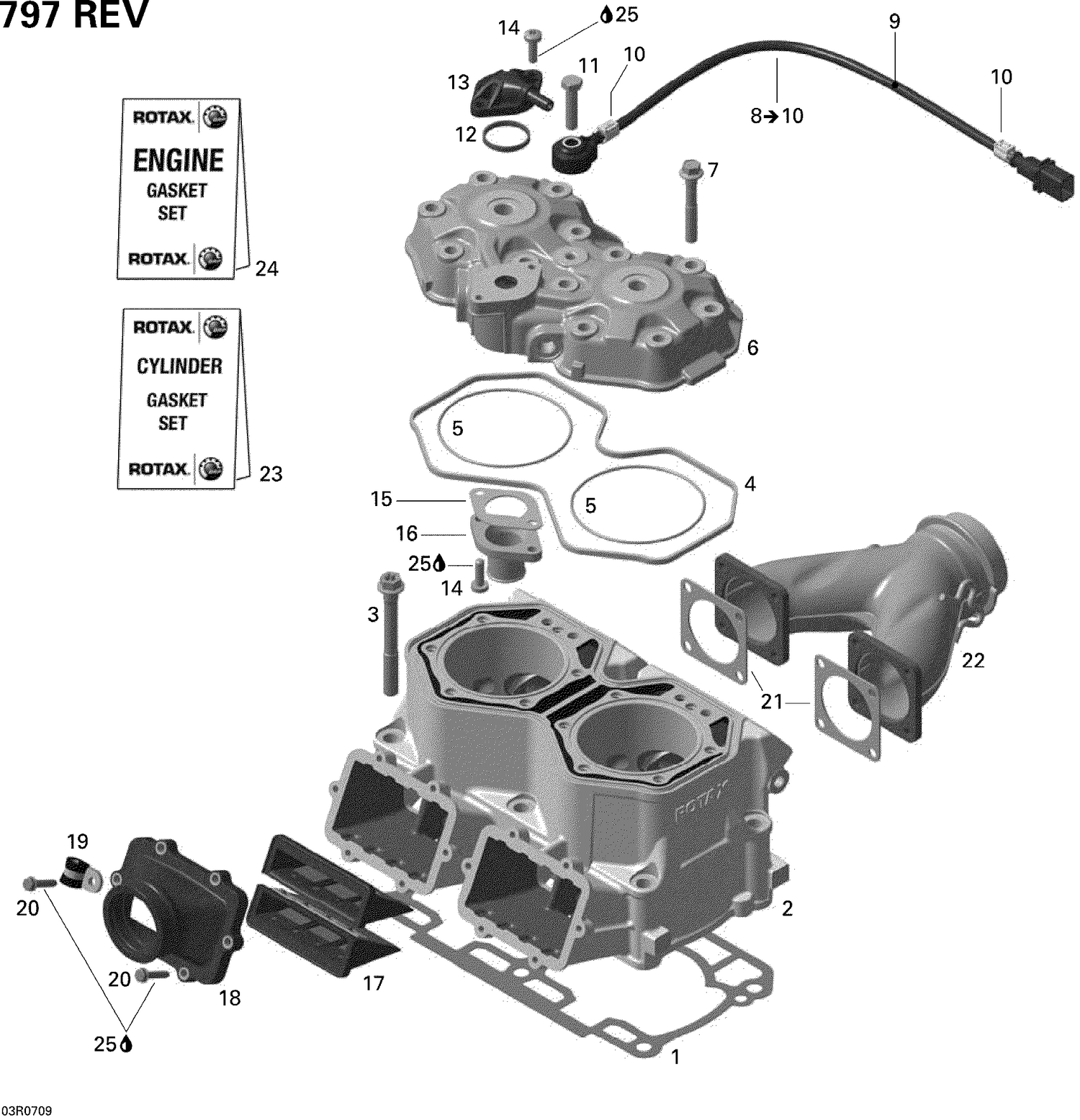

| Ref | Part Number | Description |
|---|
| 1 |
420430080 |
Double Gasket 0.5 mm |
| 1 |
420430081 |
Double Gasket 0.6 mm |
| 1 |
420430082 |
Double Gasket 0.7 mm |
| 1 |
420430083 |
Double Gasket 0.8 mm |
| 2 |
421000666 |
REBUILD-CYLINDER NICAS 797 07-09 - Call your local BRP dealership This part replaces 420623240. |
| 3 |
420441187 |
Torx Flange Screw M10 X 90 -SW 13/T50 |
| 4 |
420430040 |
O-Ring |
| 5 |
420931410 |
O-Ring |
| 6 |
420613925 |
Cylinder Head Cover |
| 7 |
420941627 |
Hex. Screw M8 X 56.5 |
| 9 |
420460010 |
TUBE - Call your local BRP dealership |
| 10 |
420960890 |
CLIP - Call your local BRP dealership |
| 11 |
207083544 |
Hex. Screw M8 X 35 |
| 12 |
420630780 |
Gasket |
| 13 |
420822370 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 14 |
420441386 |
Torx Flange Screw M6 X 20 This part replaces 420941256. |
| 15 |
420850339 |
Gasket This part replaces 420850338. |
| 16 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 17 |
420924798 |
Reed Valve Ass'y This part replaces 420924792. |
| 18 |
420667276 |
Intake Socket This part replaces 420667109. |
| 19 |
414176000 |
Open Clamp |
| 20 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 21 |
420430480 |
Gasket |
| 22 |
420673370 |
Exhaust Manifold |
| 23 |
420892477 |
Gasket Set, Cylinder This part replaces 420892475. |
| 24 |
420892472 |
Gasket Set, Engine This part replaces 420892470. |
