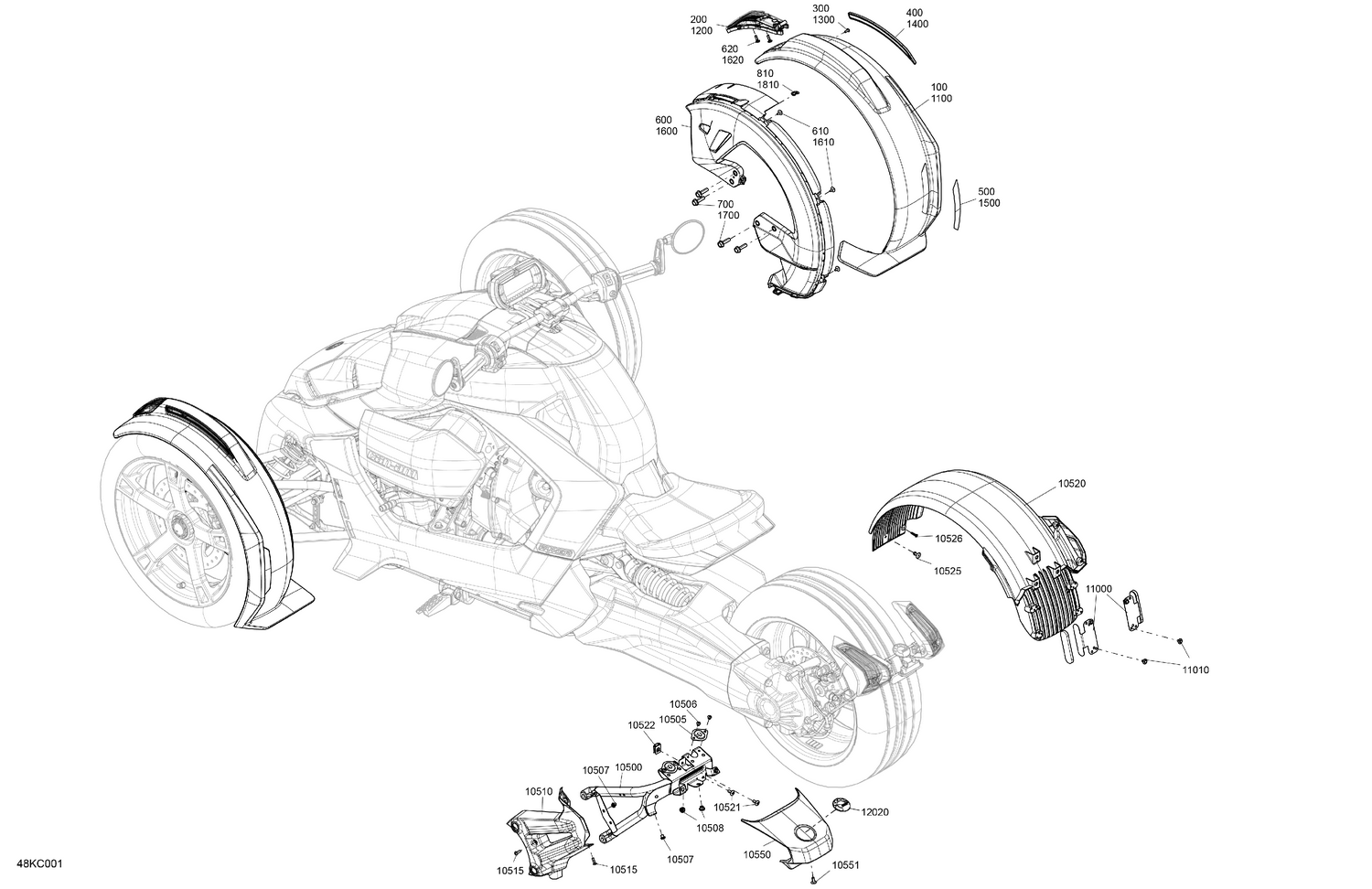

| Ref | Part Number | Description |
|---|
| 100 |
705010755 |
LH Front Fender |
| 200 |
710007008 |
LH Front Position Light |
| 300 |
250001131 |
Torx Truss PT K40 x 12 |
| 400 |
705012404 |
Yellow, LH Reflector |
| 500 |
705012406 |
Rear Reflector, Front Fender |
| 600 |
705011696 |
LH Fender Support |
| 610 |
250000805 |
Plastite Screw M4 X 10 |
| 620 |
250000720 |
Torx Screw K50 X 16 |
| 700 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 810 |
409210100 |
Clip Bracket Connector (edge) |
| 1100 |
705010756 |
RH Front Fender |
| 1200 |
710007009 |
RH Front Position Light |
| 1300 |
250001131 |
Torx Truss PT K40 x 12 |
| 1400 |
705012405 |
Yellow, RH Reflector |
| 1500 |
705012406 |
Rear Reflector, Front Fender |
| 1600 |
705017327 |
RH Front Fender Support This part replaces 705011697. |
| 1610 |
250000805 |
Plastite Screw M4 X 10 |
| 1620 |
250000720 |
Torx Screw K50 X 16 |
| 1700 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 10500 |
705013304 |
Rear Fender Support |
| 10505 |
705005055 |
Grommet Ass'y |
| 10506 |
293150102 |
Rivet 3/16" |
| 10507 |
293450267 |
Insert M5 - 0.8 |
| 10508 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 10510 |
705013305 |
LH Fender Trim Support |
| 10515 |
250000578 |
Torx Truss Screw M5 X 16, T25 |
| 10520 |
705011162 |
Deep Black, Rear Fender |
| 10521 |
250000789 |
Torx Truss M6X14 |
| 10522 |
250100208 |
Panel Nut M6 X 1.0 |
| 10525 |
293150104 |
Pop Rivet 3/16" |
| 10526 |
250001097 |
Screw 8-32 |
| 10550 |
706003151 |
Rear Fender Trim |
| 10551 |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 11000 |
706005433 |
License Plate Support Ass'y This part replaces 706004718. |
| 11010 |
250000725 |
Screw M4 X 16 |
| 12020 |
704909040 |
BRP Logo Emblem 48 MM UV |
