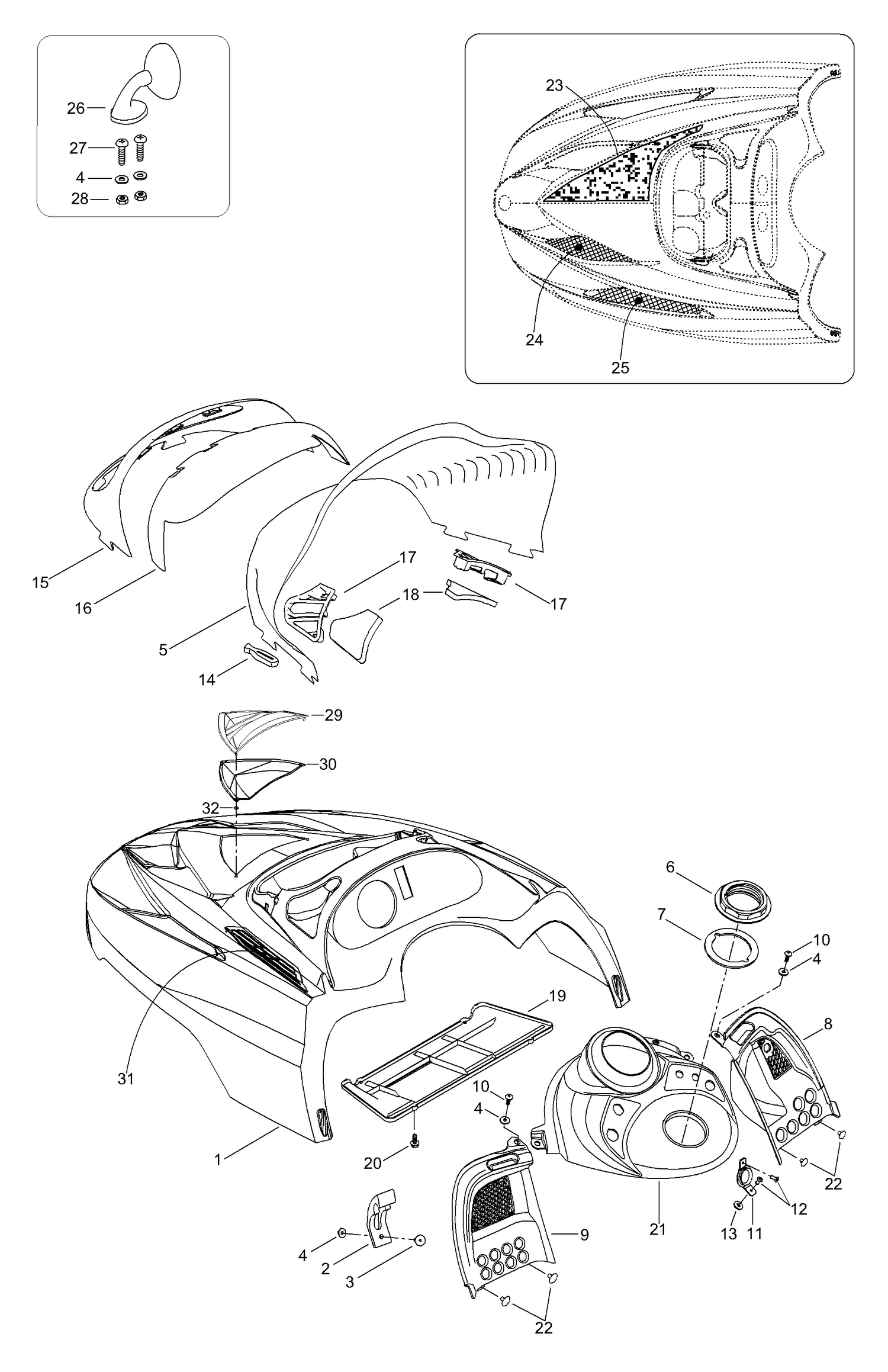

| Ref | Part Number | Description |
|---|
| 1 |
5147281 |
Hood, blue |
| 2 |
570027100 |
Hood latch |
| 3 |
36037 |
Rivet |
| 4 |
20008 |
Washer |
| 5 |
517302560 |
Windshield |
| 6 |
517302043 |
CONSOLE NUT - Call your local BRP dealership |
| 7 |
5447116 |
Gasket - Call your local BRP dealership |
| 8 |
517302027 |
RH CONSOLE - Call your local BRP dealership |
| 9 |
517302006 |
LH CONSOLE - Call your local BRP dealership |
| 10 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 11 |
517302129 |
Rope guide |
| 12 |
36002 |
Rivet |
| 13 |
517302286 |
Rubber stopper |
| 14 |
570023800 |
Windshield latch |
| 15 |
517302158 |
HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 16 |
517302003 |
WINDSHIELD SUPPORT - Call your local BRP dealership |
| 17 |
517302024 |
RH AIR INTAKE GRILL - Call your local BRP dealership |
| 17 |
517302025 |
LH AIR INTAKE GRILL - Call your local BRP dealership |
| 18 |
517302151 |
Air intake foam |
| 19 |
517302578 |
Air intake plate |
| 20 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 21 |
5248076 |
Center console |
| 22 |
36036 |
Rivet |
| 23 |
414631900 |
Foam-acoustic |
| 24 |
5346887 |
L.H. Grill |
| 24 |
5346888 |
R.H. Grill |
| 25 |
5346889 |
L.H. Grill |
| 25 |
5346890 |
R.H. Grill |
| 26 |
Not |
Available As Spare Part - L.H. mirror - DOES NOT APPLY TO THIS MODEL |
| 27 |
Not |
Available As Spare Part - Screw M4x20 - DOES NOT APPLY TO THIS MODEL |
| 28 |
Not |
Available As Spare Part - Nut elastic M4 - DOES NOT APPLY TO THIS MODEL |
| 29 |
5247486 |
Middle grill |
| 30 |
5247487 |
Inlet duct, middle |
| 31 |
5247488 |
L.H. outlet grill, side |
