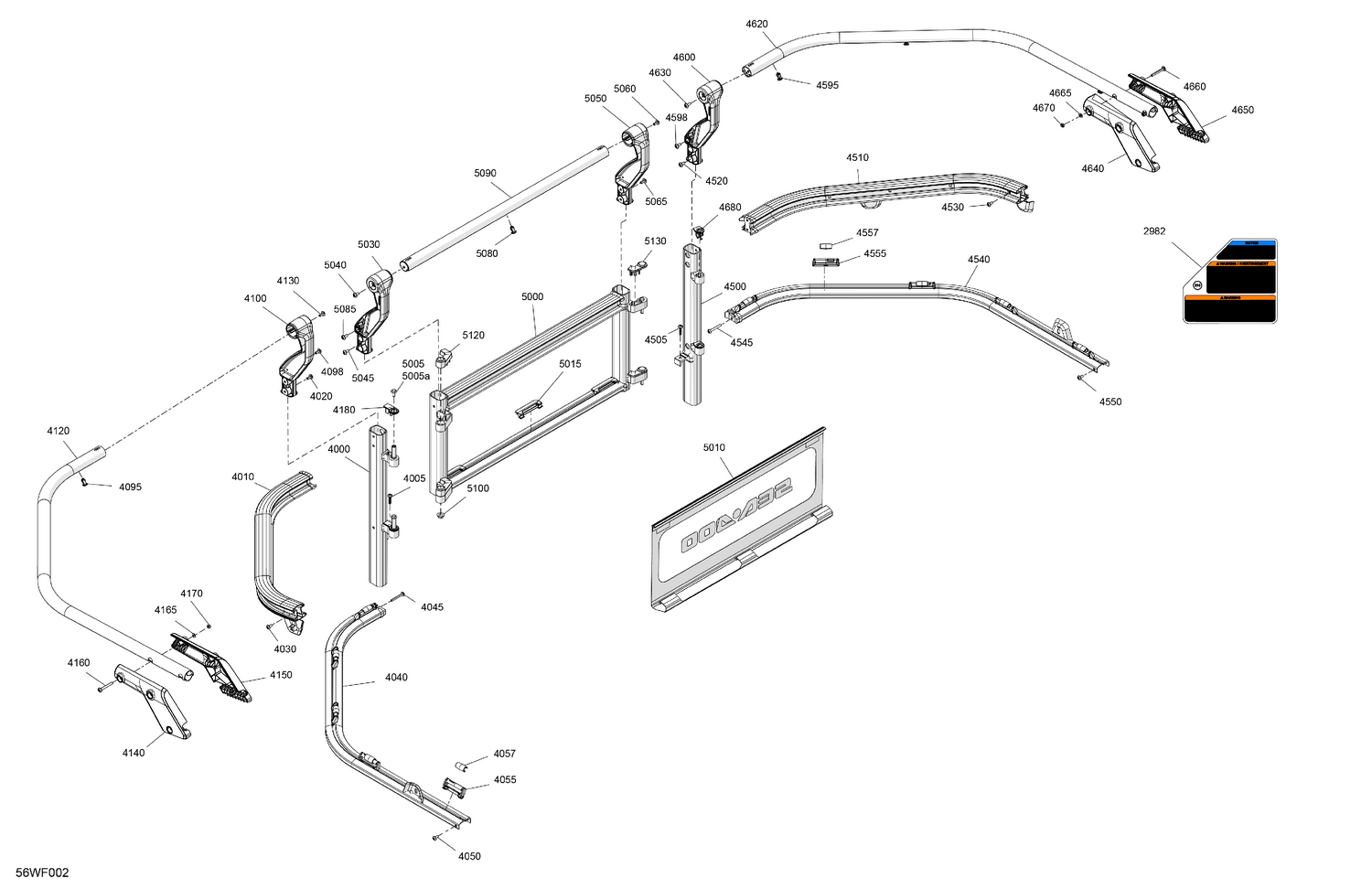

11- GUARD RAILS - Front
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 2982 | 219906632 | Warning Label. Petrol - Octane |
| 4000 | 281300714 | LH Front Profiled Tube |
| 4005 | 250000879 | Plastite Torx Screw M6.81X30 |
| 4010 | 281300350 | LH Front Hand Rail |
| 4020 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4030 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4040 | 281300349 | LH Lower Profile Tube |
| 4045 | 250001185 | Cone Torx Truss Screw HD.M6 X 51 |
| 4050 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4055 | 281300589 | Balustrade Anchor |
| 4057 | 281300597 | Balustrade Fastener |
| 4095 | 293150230 | Tuflok Plastic Rivet |
| 4098 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4100 | 281300294 | LH Front Trim Support |
| 4120 | 281300284 | LH Upper Lateral Tube |
| 4130 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4140 | 281300257 | Lava Gray, LH Upper Rail Support |
| 4150 | 281300256 | Lava Gray, RH Upper Rail Support |
| 4160 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 4165 | 234061600 | Stainless Flat Washer M6 |
| 4170 | 232561200 | Brass Elastic Stop Nut M6 |
| 4180 | 281300311 | LH Lower Cap |
| 4500 | 281300715 | RLH Front Profiled Tube |
| 4505 | 250000879 | Plastite Torx Screw M6.81X30 |
| 4510 | 281300355 | RH Front Hand Rail |
| 4520 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4530 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4540 | 281300356 | Rear Lower Profiled Tube |
| 4545 | 250001185 | Cone Torx Truss Screw HD.M6 X 51 |
| 4550 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4555 | 281300589 | Balustrade Anchor |
| 4557 | 281300597 | Balustrade Fastener |
| 4595 | 293150230 | Tuflok Plastic Rivet |
| 4598 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4600 | 281300297 | RH Front Trim Support |
| 4620 | 281300482 | RH Upper Laterak Tube |
| 4630 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4640 | 281300257 | Lava Gray, LH Upper Rail Support |
| 4650 | 281300256 | Lava Gray, RH Upper Rail Support |
| 4660 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 4665 | 234061600 | Stainless Flat Washer M6 |
| 4670 | 232561200 | Brass Elastic Stop Nut M6 |
| 4680 | 281300312 | RH Lower Cap |
| 5000 | 295101538 | Front Door Service Kit |
| 5005a | XXX | Not Available As Spare Parts |
| 5010 | 281300844 | Front Balustrade Ass'y |
| 5015 | 281300811 | Balustrade Anchor |
| 5030 | 281300297 | RH Front Trim Support |
| 5040 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 5045 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 5050 | 281300294 | LH Front Trim Support |
| 5060 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 5065 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 5080 | 293150230 | Tuflok Plastic Rivet |
| 5085 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 5090 | 281300281 | Upper Front Tube |
| 5100 | 293900007 | Venturi Bushing |
| 5120 | 281300309 | LH Upper Cap |
