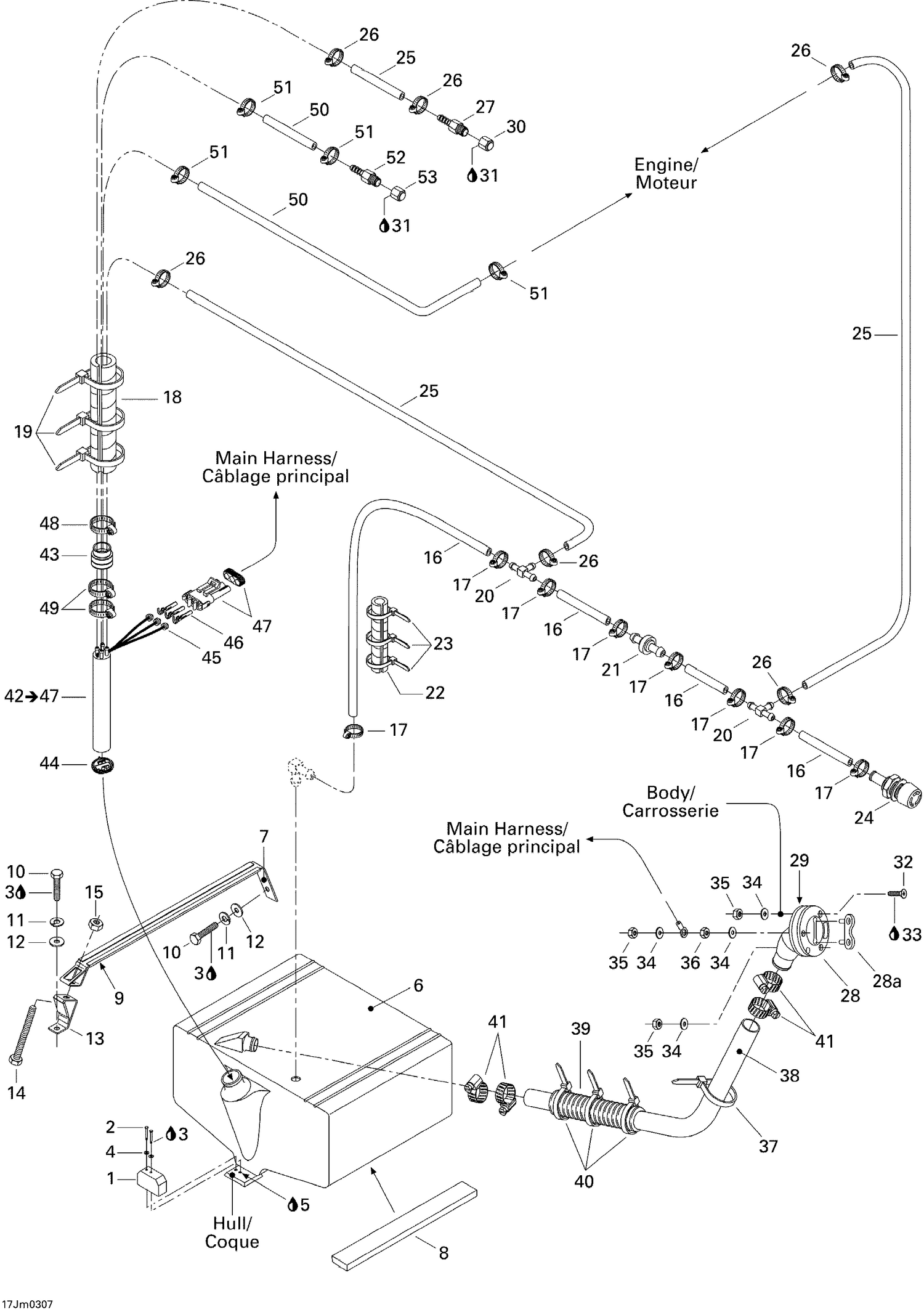

| Ref | Part Number | Description |
|---|
| 1 |
204390246 |
Bumper |
| 2 |
207086560 |
HEX. SCREW M8 X 65 - Call your local BRP dealership |
| 3 |
293800060 |
Loctite 243, 10 ml |
| 4 |
234081600 |
Stainless, Flat Washer 8 mm |
| 5 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 6 |
204560113 |
FUEL TANK, PLASTIC - Call your local BRP dealership |
| 7 |
204560114 |
FUEL TANK STRAP - Call your local BRP dealership |
| 8 |
204560115 |
PROTECTOR PAD - Call your local BRP dealership |
| 9 |
204560029 |
Protector Pad |
| 10 |
207183060 |
Hex. Screw M8 X 30 |
| 11 |
234181601 |
Lock Washer 8 mm, Stainless |
| 12 |
234082600 |
Flat Washer 8 mm, Stainless |
| 13 |
275500252 |
TANK BRACKET - Call your local BRP dealership |
| 14 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 15 |
232581600 |
Hex. Elastic Nut M8 |
| 16 |
204560358 |
HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 17 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 18 |
204560131 |
Slit Conduit, Meter |
| 19 |
293750008 |
Tie Wrap 368 mm |
| 20 |
204560038 |
T-Fitting |
| 21 |
204560101 |
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 22 |
204130176 |
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132. |
| 23 |
414115200 |
Tie-Rap 180 mm |
| 24 |
204560126 |
FUEL VENT - Call your local BRP dealership |
| 25 |
204560178 |
HOSE 1/4 - Call your local BRP dealership |
| 26 |
293650121 |
NORMA CLAMP - Call your local BRP dealership |
| 27 |
204560265 |
COUPLER - Call your local BRP dealership |
| 28a |
219700344 |
FUEL CAP KEY - Call your local BRP dealership |
| 29 |
204560119 |
GASKET - Call your local BRP dealership |
| 30 |
204560263 |
Pipe Cap |
| 31 |
219704454 |
Was 293800013 Loctite 56765 |
| 32 |
208553060 |
Phillips Screw M5 X 3 |
| 33 |
293800005 |
Loctite 271, 10 ml |
| 34 |
234051600 |
Flat Washer M5, Stainless |
| 35 |
232551600 |
Hex. Elastic Nut M5 |
| 36 |
232051600 |
Hex. Nut M5 |
| 37 |
293750008 |
Tie Wrap 368 mm |
| 38 |
204560134 |
Filler Neck Hose |
| 39 |
204560131 |
Slit Conduit, Meter |
| 40 |
293750008 |
Tie Wrap 368 mm |
| 41 |
293650077 |
Norma Clamp This part replaces 293650078. |
| 43 |
204560066 |
Fuel Tube Adaptor |
| 44 |
275500397 |
FUEL FILTER - Call your local BRP dealership |
| 45 |
278000218 |
Wire Seal |
| 46 |
278000223 |
Female Terminal |
| 47 |
278000273 |
Male Housing, 3 Circuits |
| 48 |
293650077 |
Norma Clamp This part replaces 293650078. |
| 49 |
293650081 |
Norma Clamp |
| 50 |
204560177 |
Hose 5/16”, Meter |
| 51 |
293650070 |
NORMA CLAMP - Call your local BRP dealership |
| 52 |
204560264 |
Hose Fitting |
