Home / BRP / 2008 / MX Z / MX Z 550X, 2008 000BN8A00 000BN8B00 000BN8C00 / GEARCASE - STANDARD ROTATION

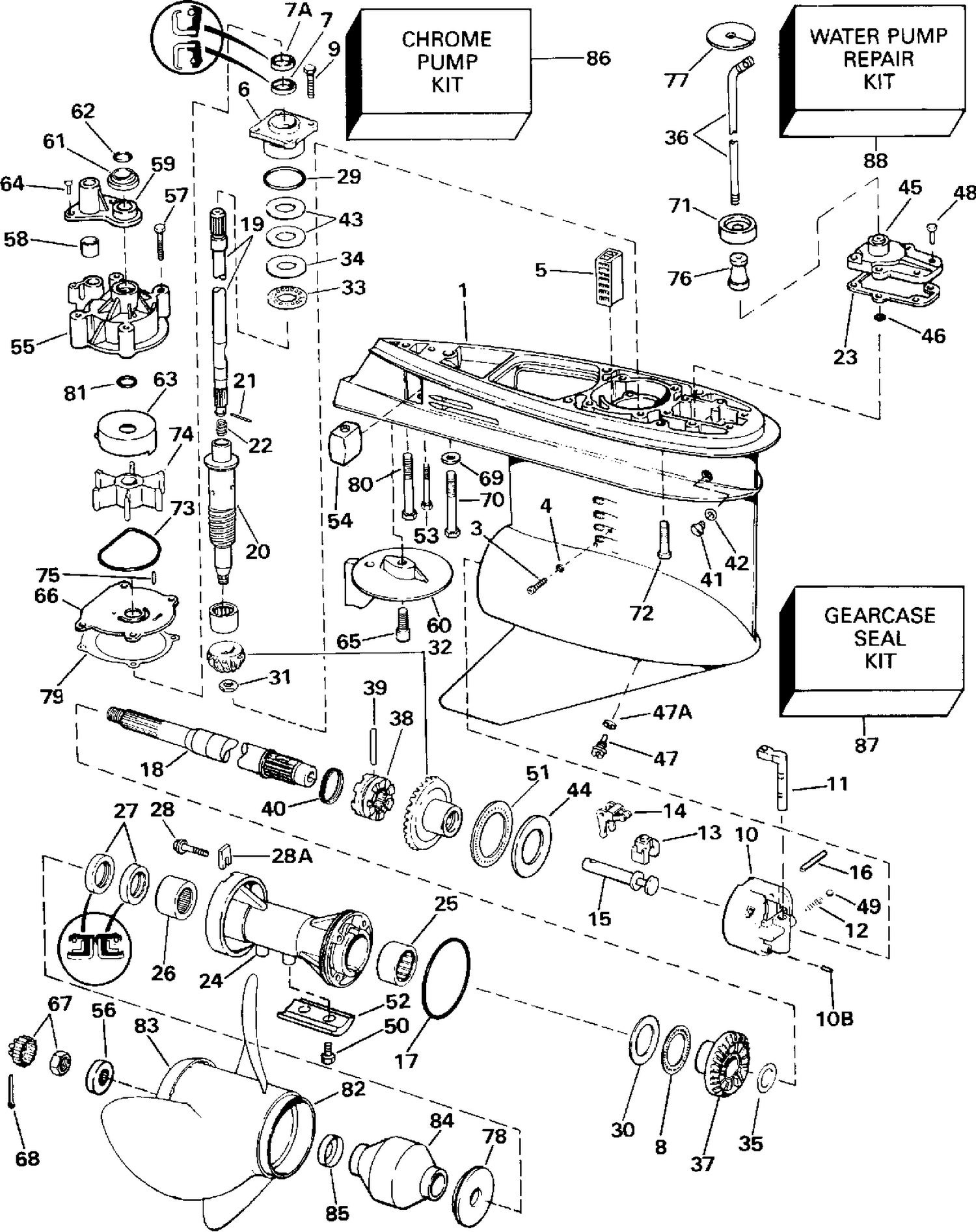

GEARCASE - STANDARD ROTATION

GEARCASE - STANDARD ROTATION

Parts (56)

RefPart NumberDescription
17 0305123 O RING This part replaces 0321119.
19 5000618 Kit This part replaces 0335900.
19 5000626 Kit This part replaces 0335678.
22 0335684 DRIVESHAFT SPRING
26 0434467 NEEDLE BEARING ASSY.
36 0324407 SHIFT ROD
36 0324408 SHAFT ROD.
55 0435485 IMPELLER HOUSING ASSY. This part replaces 0395040.
57 0335221 SCREW, Throttle body to reed plate This part replaces 0328715.
60 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0327640.
63 0435027 CUP & PLATE This part replaces 0330379.
63 0435526 CHROME CUP & PLATE KIT This part replaces 0330384.
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
66 0435027 CUP & PLATE This part replaces 0330380.
66 0435526 CHROME CUP & PLATE KIT This part replaces 0330383.
70 0331998 SCREW, Gearcase to housing
72 0331999 SCREW, Gearcase housing
73 0331353 Seal, Impeller Housing Plate.
77 0322302 SEAL, Adapter to frame
80 0330263 SCREW, Mounting, 3/8 in. X 3.50 in.
81 0332000 SEAL RING
82 0174821 PROP, 4 blade 13 1/4 X 29
82 0174926 PROPELLER, 15 X 15 SST
82 0387163 PROP,14-1/2x23
82 0387995 PROP, 14-1/2 x 24 sstr
82 0387996 PROP, 14-1/2 x 26 sstr
82 0389019 PROP, 14-1/2 x 23 SST
82 0389923 PROP, 14-1/2 x 21 SST
82 0389924 PROP, 14-1/2 x 19 SST
82 0389925 PROP, 15 x 16 SST
82 0390725 PROP, 14 x 25 SST
82 0390831 PROP, 14-1/2 x 14 SST
82 0391201 PROP, 14-1/2 x 19
82 0391202 PROP, 14-1/2 x 21
82 0391290 PROP, 15 x 17 SST
82 0391535 PROP, 15-1/2 x 15
82 0391536 PROP, 15-1/2 x 13
82 0391863 PROPELLER, 14 1/2 X 27 OMC SRX
82 0391864 PROPELLER, 14 1/2 x 29 OMC SRX
82 0394752 PROPELLER, 14 1/2 x 18 OMC Raker
82 0394753 PROPELLER, 14 1/2 x 20 OMC Raker
82 0394754 PROPELLER, 14 1/2 x 22 OMC Raker
82 0394755 PROPELLER, 13 1/2 X 24 OMC RAKER
82 0394756 PROPELLER, 14 1/2 x 26 OMC Raker
82 0394757 PROPELLER, 14 1/2 x 28 OMC Raker
82 0431717 PROP, 4 blade, 13 1/2 x 23
82 0431718 PROP, 4 blade, 13 1/4 x 25
82 0431719 PROP, 4 blade, 13 1/4 x 27
82 0765187 PROPELLER, WDEX Models This part replaces 0391200.
86 0435526 CHROME CUP & PLATE KIT This part replaces 0395059.
87 5006373 GEARCASE SEAL KIT This part replaces 0434516.
88 5001594 WATER PUMP REPAIR KIT This part replaces 0395060.
0433632 5000776 Kit Ay This part replaces 0433632.
0434013 5000775 Kit Ayd/Shaft-20 This part replaces 0434013.
0434417 0434417 GEARCASE ASSY., Complete
0434418 0434418 GEARCASE ASSY., Complete
