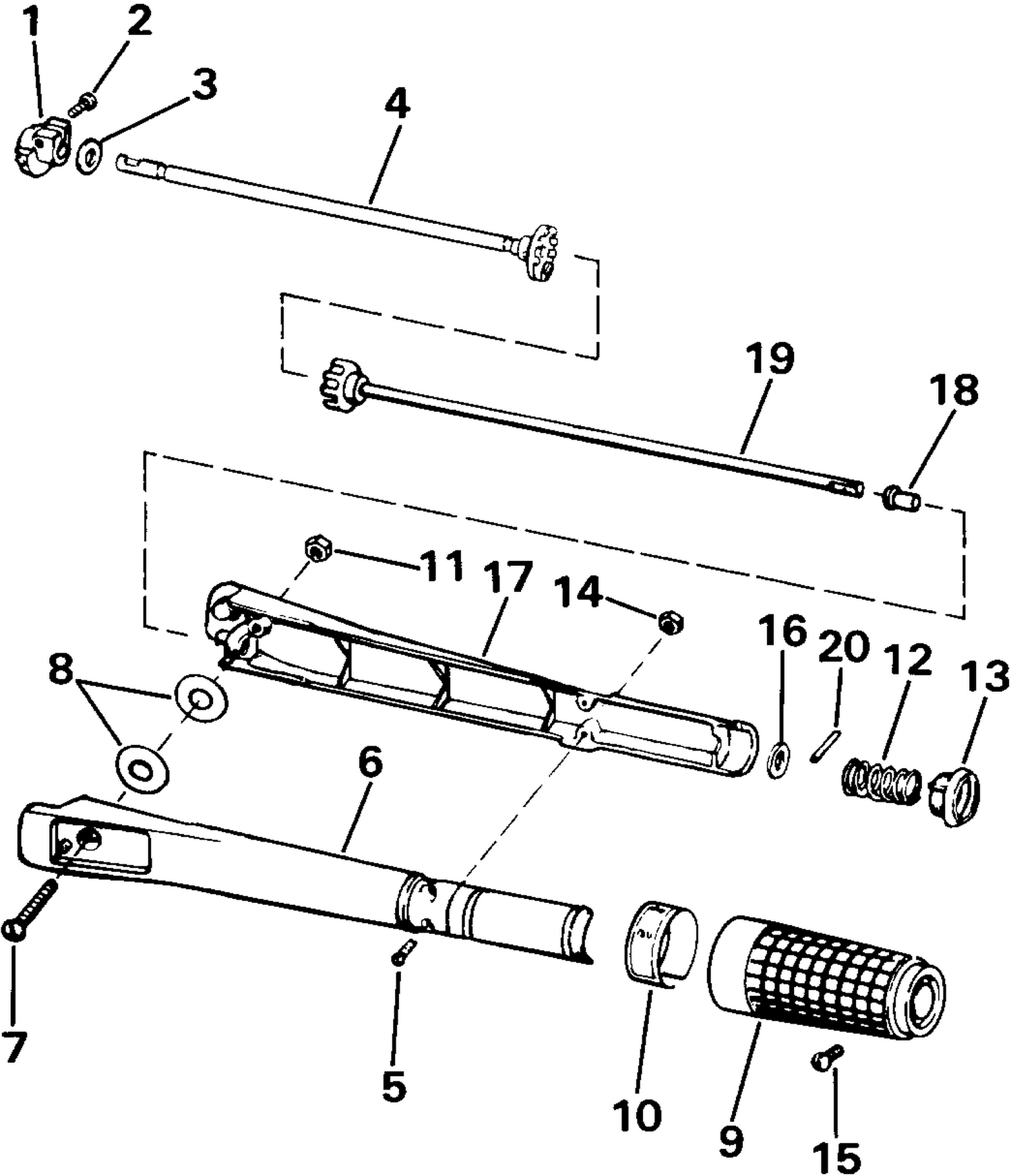

STEERING HANDLE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0303142 | PINION, Control throttle |
| 2 | 0312491 | SCREW, Clamp to bracket |
| 3 | 0305347 | BUSHING, Throttle shaft |
| 4 | 0387057 | GEAR & SHAFT, Short |
| 5 | 0330977 | SCREW, Handle halves |
| 6 | 0322933 | HANDLE ,Sterring,inner half |
| 7 | 0330976 | SCREW, Handle halves |
| 8 | 0303079 | WASHER |
| 9 | 0393556 | GRIP & SLEEVE ASSY. |
| 10 | 0327943 | PLATE |
| 11 | 0328742 | NUT This part replaces 0306338. |
| 12 | 0301656 | SPRING |
| 13 | 0303282 | BLOCK |
| 16 | 0303252 | WAHSER, Grip spring |
| 17 | 0322932 | HANDLE, Outer half |
| 18 | 0325074 | BUSHING |
| 19 | 0390676 | GEAR & SHAFT, Long |
| 0391273 | 0391273 | STEERING HANDLE ASSY. |
