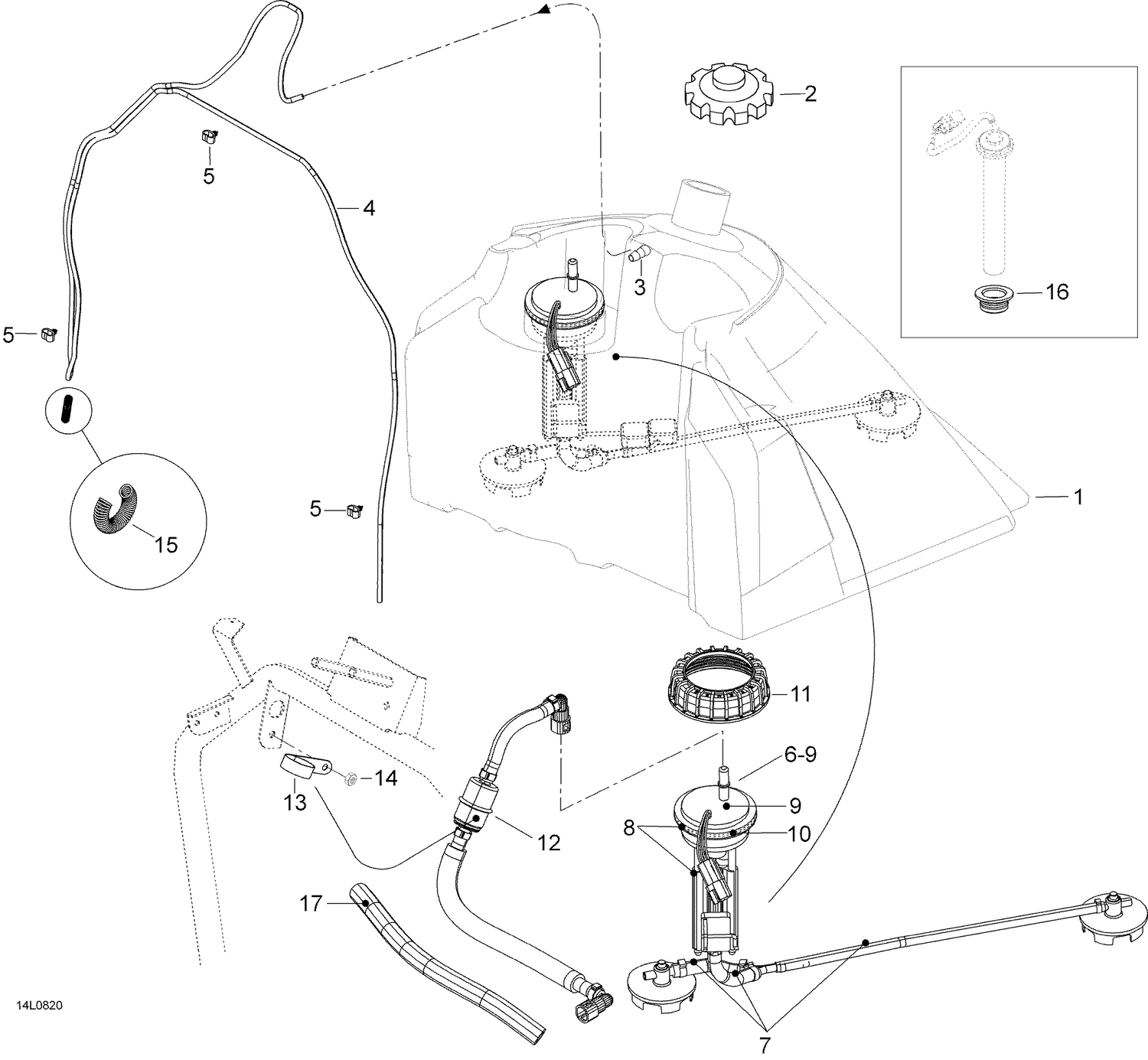

| Ref | Part Number | Description |
|---|
| 1 |
605153637 |
FUEL TANK - Call your local BRP dealership |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 3 |
19051 |
Nippel |
| 4 |
39035 |
Hose |
| 5 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 7 |
19183 |
Fuel hose kit - Call your local BRP dealership |
| 8 |
861302600 |
PUMP HOSE KIT - Call your local BRP dealership |
| 9 |
861302100 |
REGULATOR KIT - Call your local BRP dealership |
| 10 |
19186 |
Gasket |
| 11 |
513033040 |
Nut |
| 12 |
605356277 |
Boyau Assy *Fuel Line Assy This part replaces 605352618. |
| 13 |
513033047 |
Bracket |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 15 |
25003 |
Spring |
| 16 |
293600087 |
Grommet |
