| Ref | Part Number | Description |
|---|
| 1 |
0384285 |

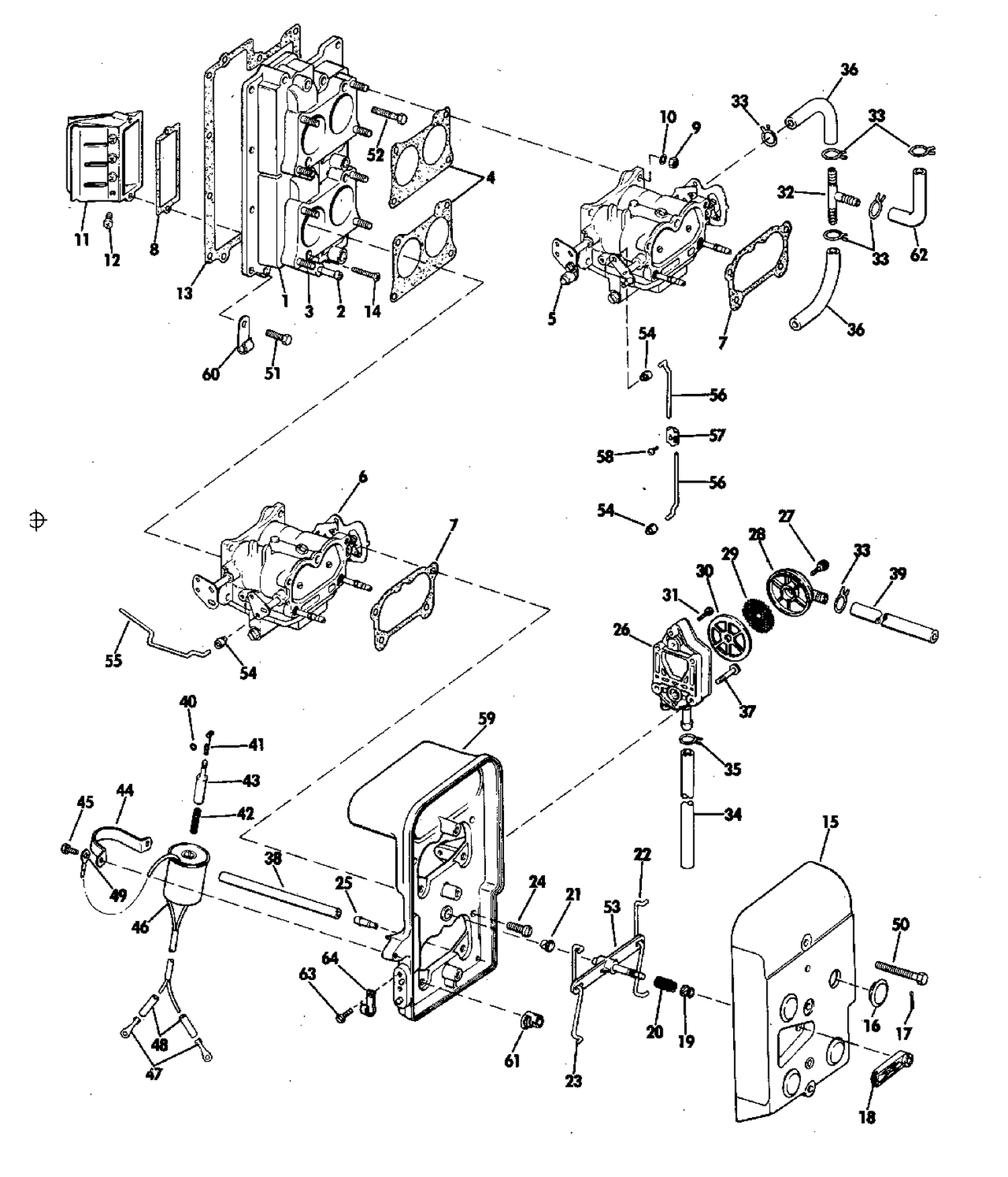

INTAKE MANIFOLD ASSEMBLY |
| 3 |
0314956 |
STUD |
| 4 |
0315052 |
GASKET CARB. TO MANIFOLD |
| 5 |
0384257 |
CARBURETOR ASSEMBLY COMPLETE, Upper |
| 6 |
0384258 |
CARBURETOR ASSEMBLY |
| 7 |
0315093 |
GASKET, Air silencer |
| 8 |
0314962 |
GASKET, Leaf plate |
| 9 |
0306397 |
NUT |
| 11 |
0383986 |
LEAF PLATE ASSEMBLY |
| 13 |
0319174 |
GASKET, Exhaust cover, 85, 100, 115 hp This part replaces 0316129. |
| 14 |
0316116 |
SCREW |
| 15 |
0384343 |
COVER ASSEMBLY |
| 16 |
0316074 |
BOUCHON, couvercle de volant-moteur |
| 18 |
0315102 |
ARM, Slow speed adj outer |
| 19 |
0315094 |
BUSHING |
| 20 |
0315198 |
SPRING |
| 22 |
0315095 |
LING, Slow speed, port |
| 23 |
0315096 |
LINK, Slow speed adjust, starboard |
| 24 |
0315092 |
SCREW, Air silencer base |
| 26 |
0438559 |
FUEL PUMP ASSY., Lower This part replaces 0383765. |
| 30 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0312679. |
| 31 |
0310302 |
SCREW PUMP ASSY |
| 32 |
0319741 |
TEE This part replaces 0315228. |
| 35 |
0309523 |
CLAMP |
| 36 |
0303617 |
HOSE This part replaces 0315599. |
| 37 |
0328717 |
NUT, Ground lead This part replaces 0308777. |
| 38 |
0203909 |
HOSE, Oil return This part replaces 0203287. |
| 39 |
0303617 |
HOSE This part replaces 0554331. |
| 40 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 41 |
0387788 |
LINK & PLUNGER ASSY, 85 HP This part replaces 0314025. |
| 42 |
0314026 |
SPRING |
| 43 |
0313636 |
PLUNGER |
| 44 |
0315060 |
YOKE, Choke soleniod, 85 HP only |
| 46 |
0580755 |
SOLENOID ASSEMBLY, Choke |
| 49 |
0510827 |
RING TERMINAL |
| 50 |
0981185 |
SCREW, Cover to base This part replaces 0308686. |
| 51 |
0302288 |
BOLT |
| 52 |
0306493 |
SCREW, Regulator mounting |
| 53 |
0383638 |
BELLCRANK ASSEMBLY, Slow speed |
| 54 |
0313329 |
LOCKWASHER, Carburetor link |
| 55 |
0384148 |
LINK ASS |
| 56 |
0314897 |
HOSE, Air silencer |
| 57 |
0318974 |
FASTENER, Cable clamp This part replaces 0314886. |
| 58 |
0303686 |
SCREW, Fastener |
| 59 |
0316192 |
BASE, Air silencer |
| 60 |
0310441 |
CLAMP, CPS lead |
| 61 |
0313792 |
ARM, Slow spd adj., upper & lower |
| 62 |
0332845 |
HOSE This part replaces 0315227. |
| 63 |
0303791 |
SCREW |
