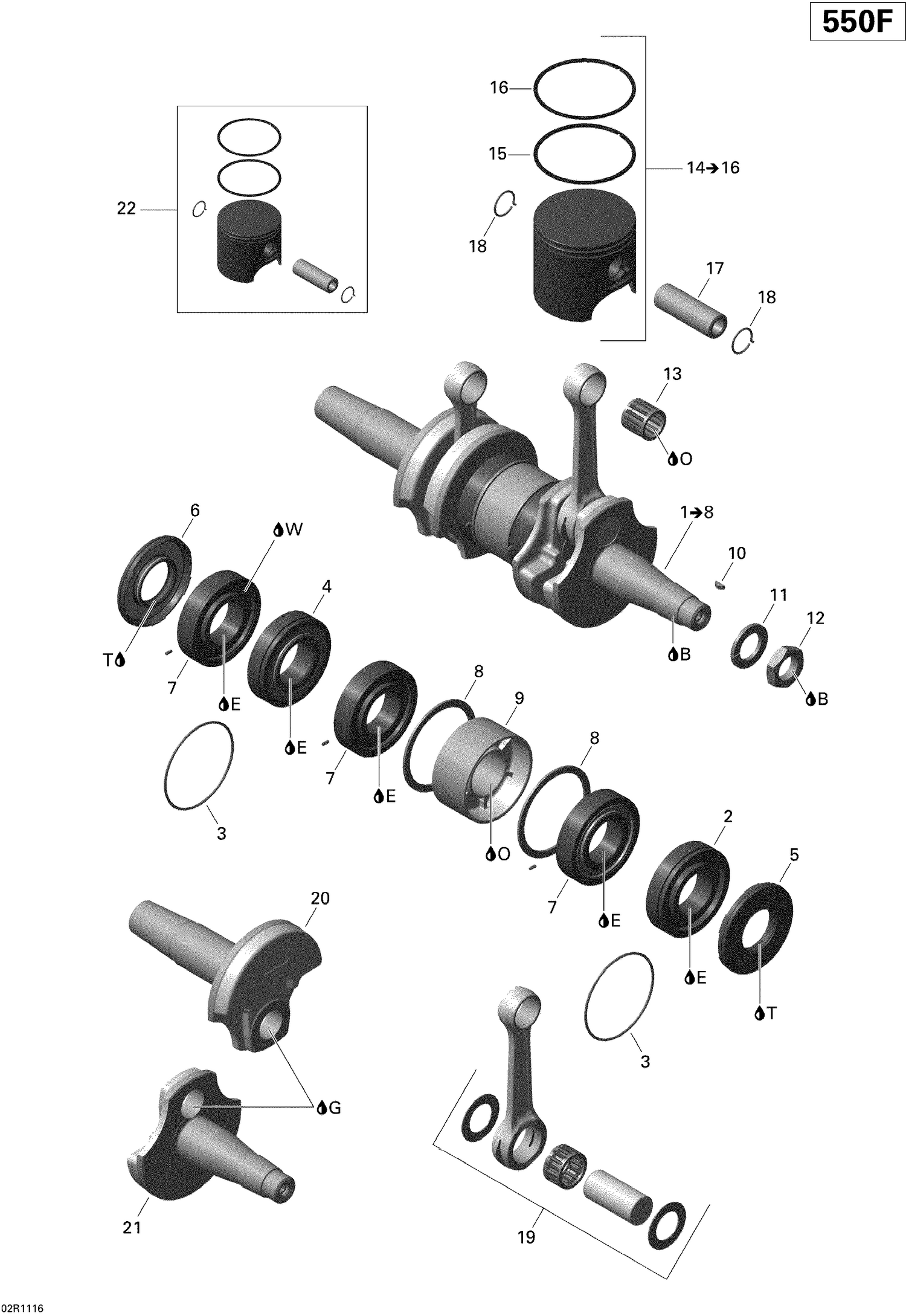

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| E |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| G |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| O |
Not |
Available As Spare Part - Engine Oil |
| T |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 2 |
420832571 |
Ball Bearing |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm |
| 4 |
420832632 |
Ball Bearing |
| 5 |
420831952 |
Oil Seal |
| 6 |
420831955 |
Oil Seal |
| 7 |
420832573 |
Ball Bearing |
| 8 |
420927710 |
Retaining Disk |
| 9 |
420850149 |
Labyrinth Sleeve |
| 10 |
420246055 |
Woodruff Key |
| 11 |
420945759 |
Lock Washer, 22 mm |
| 12 |
420842239 |
Hex. Nut, M22 X 1.5 |
| 13 |
420832445 |
Needle Bearing |
| 15 |
420815300 |
Rectangular Ring, Standard |
| 15 |
420815301 |
Rectangular Ring, 1st |
| 15 |
420815302 |
Rectangular Ring, 2nd |
| 16 |
420815155 |
Semi-Trapez Ring, Standard |
| 16 |
420815156 |
Semi-Trapez Ring, 1st |
| 16 |
420815157 |
Semi-Trapez Ring, 2nd |
| 17 |
420916407 |
Piston Pin |
| 18 |
420845106 |
Piston Circlip |
| 19 |
420889068 |
Rod Repair Kit |
| 20 |
Not |
Available As Spare Part - Crankshaft PTO Side |
| 21 |
420819213 |
Crankshaft, MAG Side This part replaces 420819210. |
| 22 |
415129542 |
Piston Kit |
