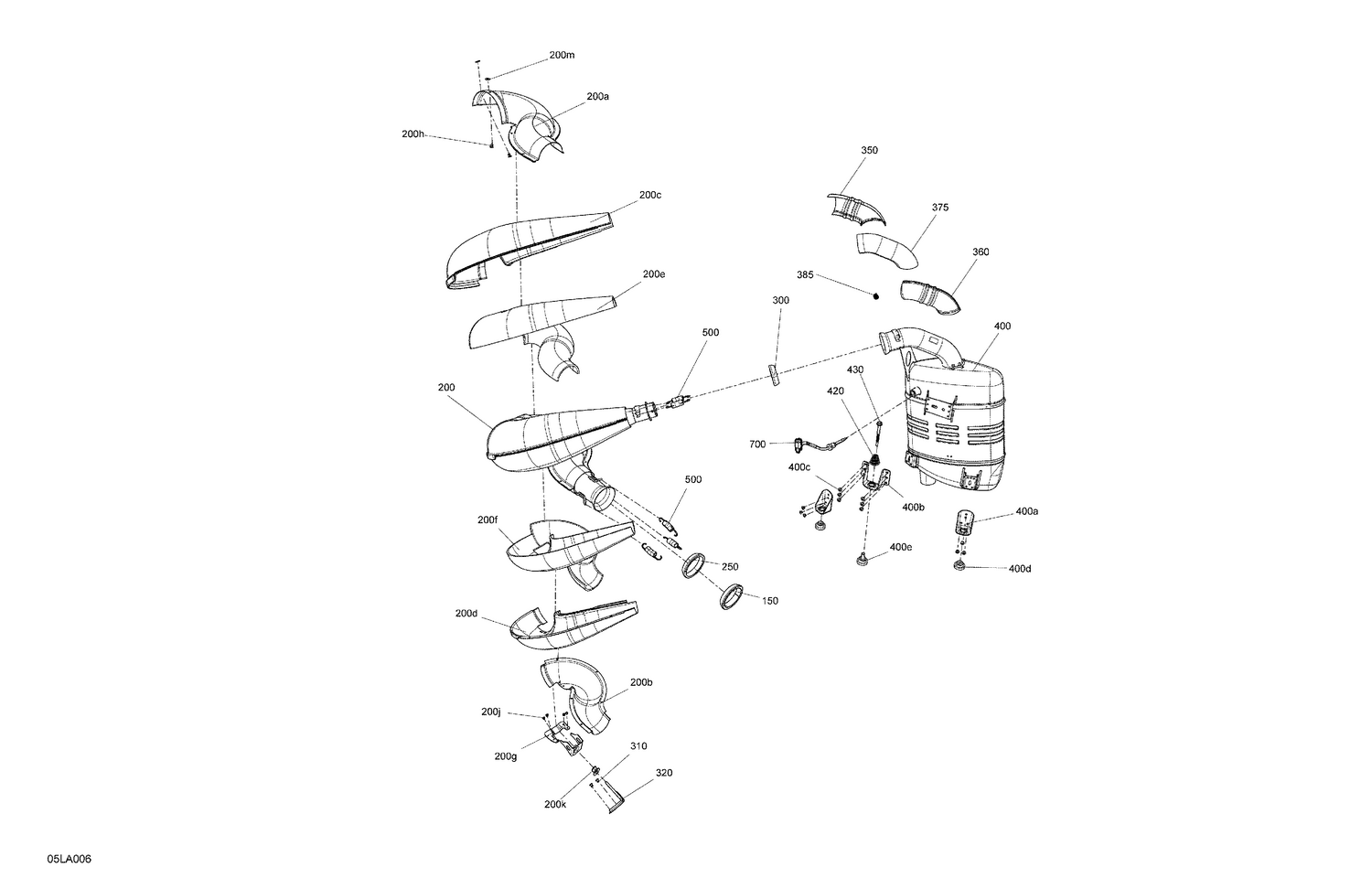

02- Engine - Exhaust
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 200a | 514055222 | Upper Front Aluminium Shell |
| 200b | 514056282 | Shell This part replaces 514055822. |
| 200c | 514055859 | Rear Upper Aluminum Shell |
| 200d | 514056141 | Rear Lower Aluminum Shell |
| 200e | 514056351 | Glass Wool This part replaces 514055220. |
| 200f | 514056352 | Glass Wool This part replaces 514056143. |
| 200g | 514055844 | Plate |
| 200h | 390909200 | Avex Rivet |
| 200j | 390909200 | Avex Rivet |
| 200k | 514055632 | Rubber |
| 200m | 514055537 | Washer 3/16 |
| 250 | 514055965 | Seal |
| 300 | 514055294 | Exhaust Gasket |
| 310 | 293150119 | Hemlock Rivet, 6.5 mm |
| 320 | 514055214 | Support |
| 350 | 514056191 | Front Shield |
| 360 | 514056192 | Rear Shield |
| 375 | 514055285 | Wool |
| 385 | 514053643 | Spring |
| 400a | 514056054 | Support |
| 400b | 514056055 | Support |
| 400c | 390402200 | Pop Rivet 3/16 |
| 400d | 514055203 | Stopper |
| 400e | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flanged Screw M6 |
| 500 | 514055198 | Spring |
