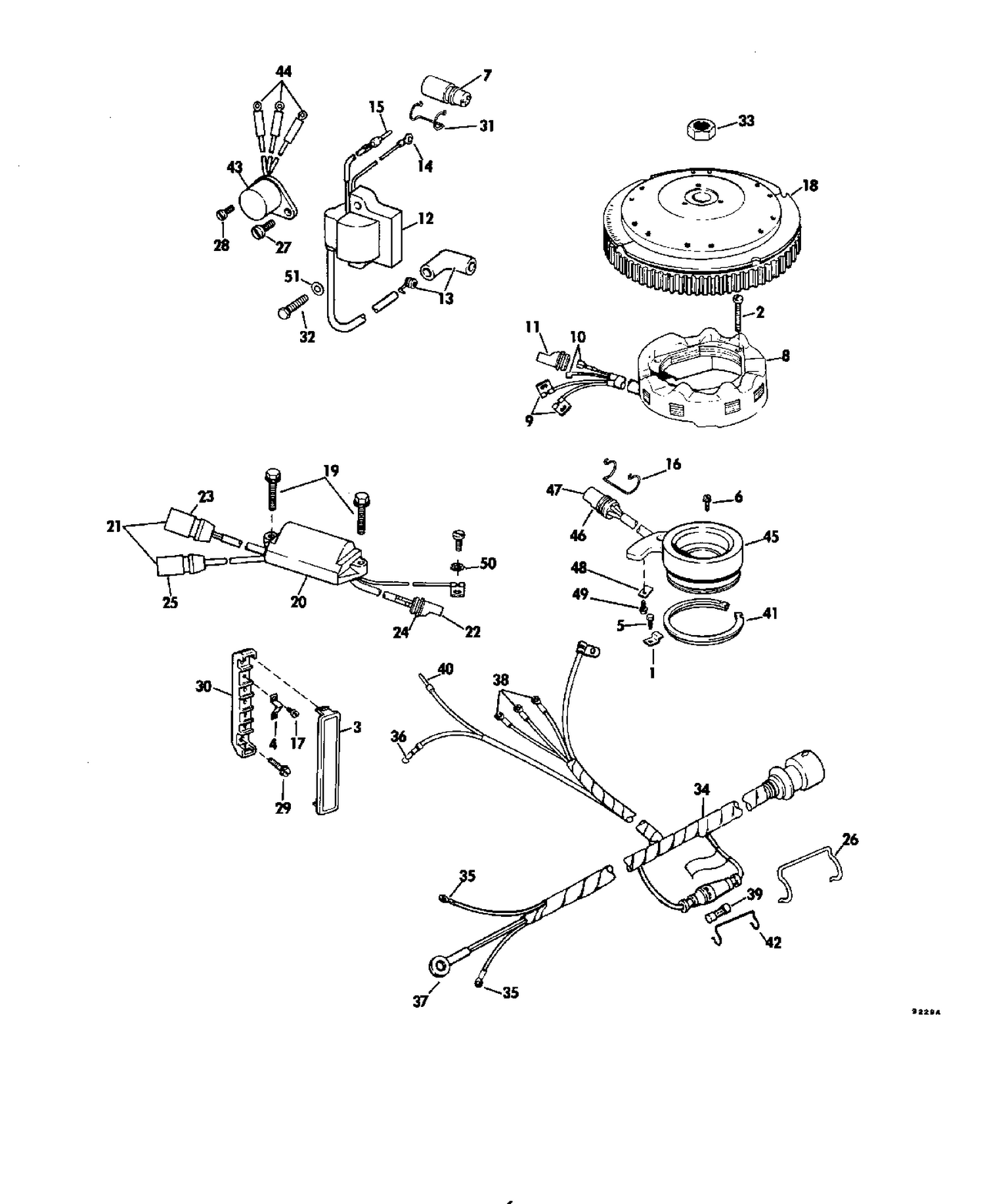

| Ref | Part Number | Description |
|---|
| 1 |
0314495 |
CLAMP, Distributor base |
| 2 |
0325042 |
SCREW, Starter mounting |
| 3 |
0323729 |
COVER, Terminal block This part replaces 0389503. |
| 4 |
0315004 |
FIL DE LIAISON, bornier |
| 7 |
0511449 |
COMMECTOR, Coil to power pack |
| 8 |
0583724 |
STATOR ASSY. This part replaces 0581957. |
| 11 |
0511989 |
CONNECTOR This part replaces 0511617. |
| 12 |
0581998 |
COIL ASSY |
| 14 |
0510767 |
RING TERMINAL |
| 16 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 18 |
0583222 |
FLYWHEEL ASSY. This part replaces 0581995. |
| 19 |
0328726 |
SCREW (Use existing coil screw) This part replaces 0323796. |
| 20 |
0582556 |
POWER PACK This part replaces 0581933. |
| 23 |
0511449 |
COMMECTOR, Coil to power pack |
| 25 |
0511616 |
CLAMP, Cable |
| 27 |
0318468 |
SCRAEW, Latch to handle |
| 28 |
0314576 |
SCREW |
| 30 |
0326255 |
LEVER, Choke knob This part replaces 0323730. |
| 33 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 34 |
0394508 |
MOTOR CABLE ASSY. This part replaces 0389254. |
| 41 |
0313666 |
RET., Distributor base 1 |
| 45 |
0583378 |
TIME BASE ASSY. This part replaces 0581949. |
| 48 |
0511387 |
CLAMP |
