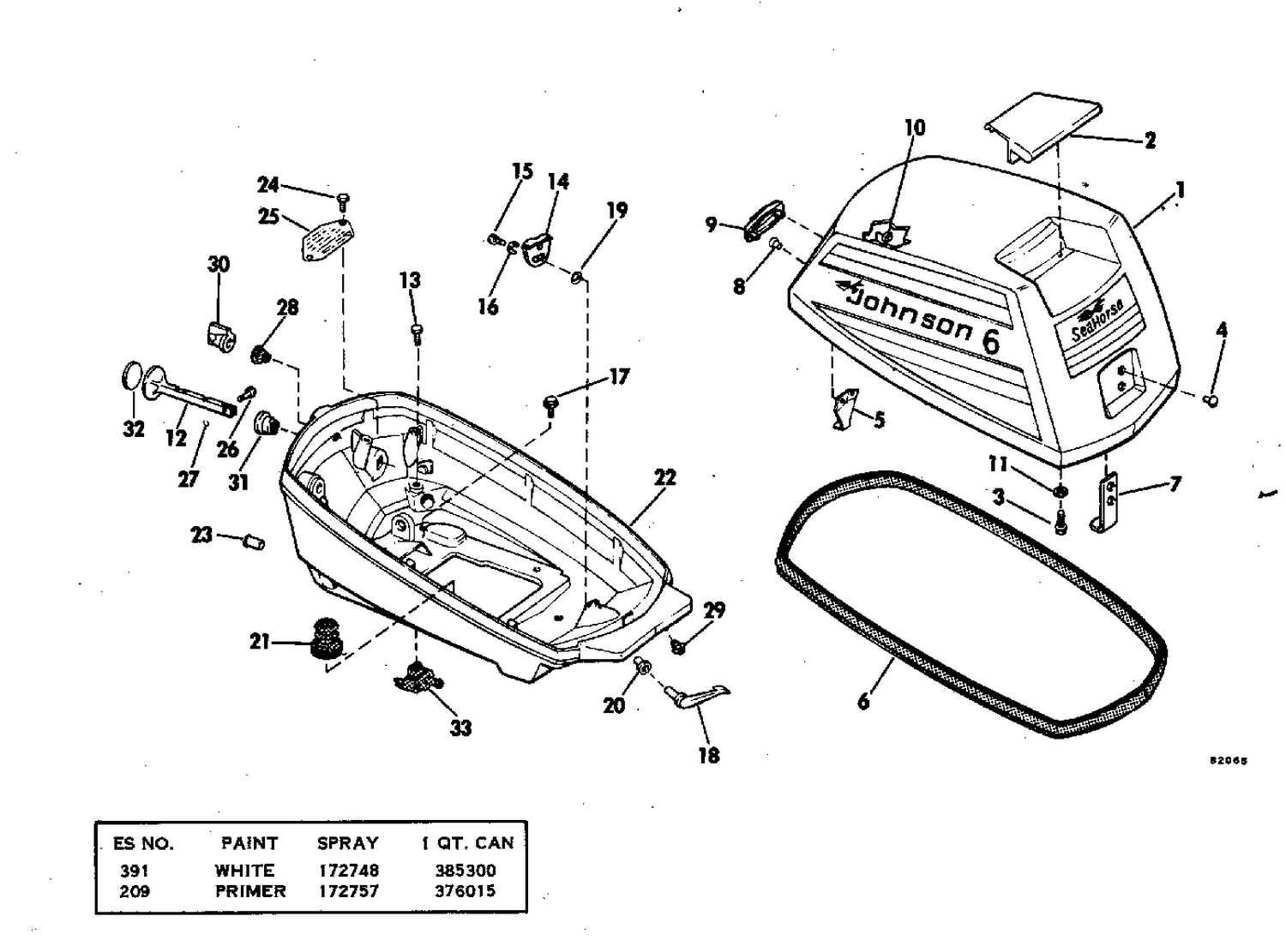

MOTOR COVER
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0388707 | MOTOR COVER ASSEMBLY |
| 4 | 0315705 | RIVERT,Rear hook |
| 5 | 0311324 | HOOK, Front |
| 6 | 0311383 | SEAL |
| 7 | 0323383 | HOOK, Rear |
| 8 | 0315705 | RIVERT,Rear hook |
| 9 | 0317086 | APPLIQUE |
| 12 | 0315520 | KNOB, Choke |
| 13 | 0313117 | SCR,Clamp,eng cable |
| 15 | 0306487 | SCREW |
| 16 | 0306407 | LOCCKWASHER,Cover latch |
| 17 | 0309526 | SCREW |
| 18 | 0321318 | HANDLE, Latch |
| 20 | 0553769 | BUSHING |
| 21 | 0306119 | GROMMET |
| 22 | 0389496 | MOTOR COVER, Lower |
| 23 | 0312979 | EYELET |
| 24 | 0316195 | SCREW |
| 25 | 0320023 | PLATE, Safety warning |
| 26 | 0322340 | HINGE PIN, Knob |
| 27 | 0307529 | JOINT TORIQUE, galet vers contre-came |
| 28 | 0311439 | GROMET, Knob slow speed |
| 29 | 0321885 | NIPPLE |
| 30 | 0314615 | ADJUSTING KNOB |
| 31 | 0320731 | BUSHING, Choke knob |
| 32 | 0323043 | INSERT |
| 33 | 0393334 | CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 0388712 | 0388712 | DECAL SET |
