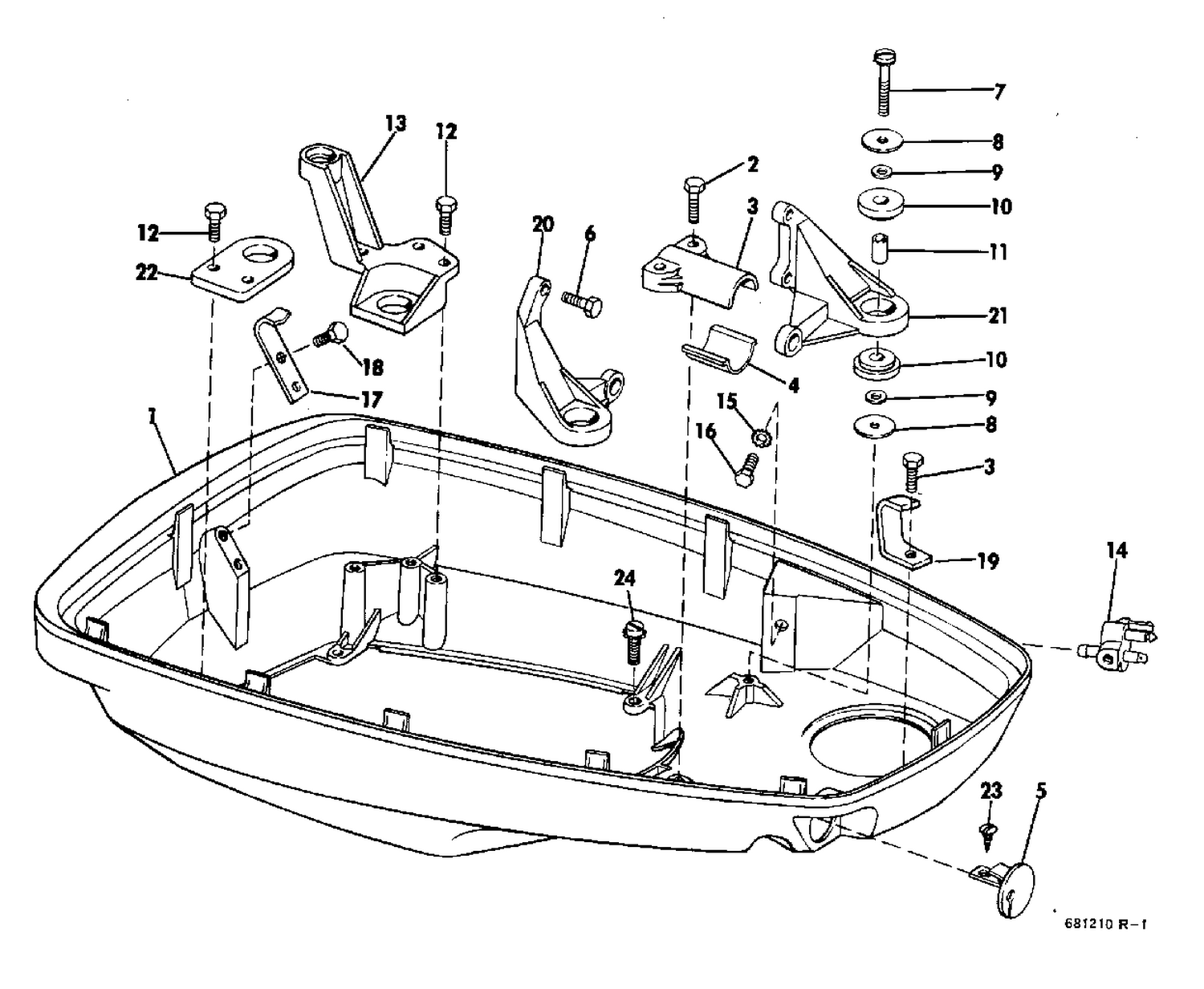

| Ref | Part Number | Description |
|---|
| 1 |
0383487 |
MOTOR COVER, Lower |
| 3 |
0314940 |
CLAMP, Cable |
| 4 |
0314939 |
GUIDE |
| 5 |
0313888 |
RETAINER, Throttle cable |
| 6 |
0306418 |
VIS, ancrage |
| 7 |
0308995 |
SCREW, Front mount |
| 9 |
0329241 |
RONDELLE This part replaces 0306482. |
| 10 |
0316354 |
ENGINE COVER SUPPORT GROMMET This part replaces 0302405. |
| 11 |
0302406 |
SLEEVE |
| 12 |
0300646 |
VIS, ancrage |
| 13 |
0314129 |
SUPPORT, Port, rear |
| 14 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 16 |
0306419 |
SCREW |
| 17 |
0313638 |
HOOK, Rear motor cover |
| 18 |
0306487 |
SCREW |
| 19 |
0314006 |
HOOK, Front motor cover |
| 20 |
0313840 |
BRACKET, Cover, starboard |
| 21 |
0313839 |
BRACKET, Cover, port |
| 22 |
0314130 |
SUPPORT , Stbd., rear |
| 23 |
0551706 |
SCREW |
