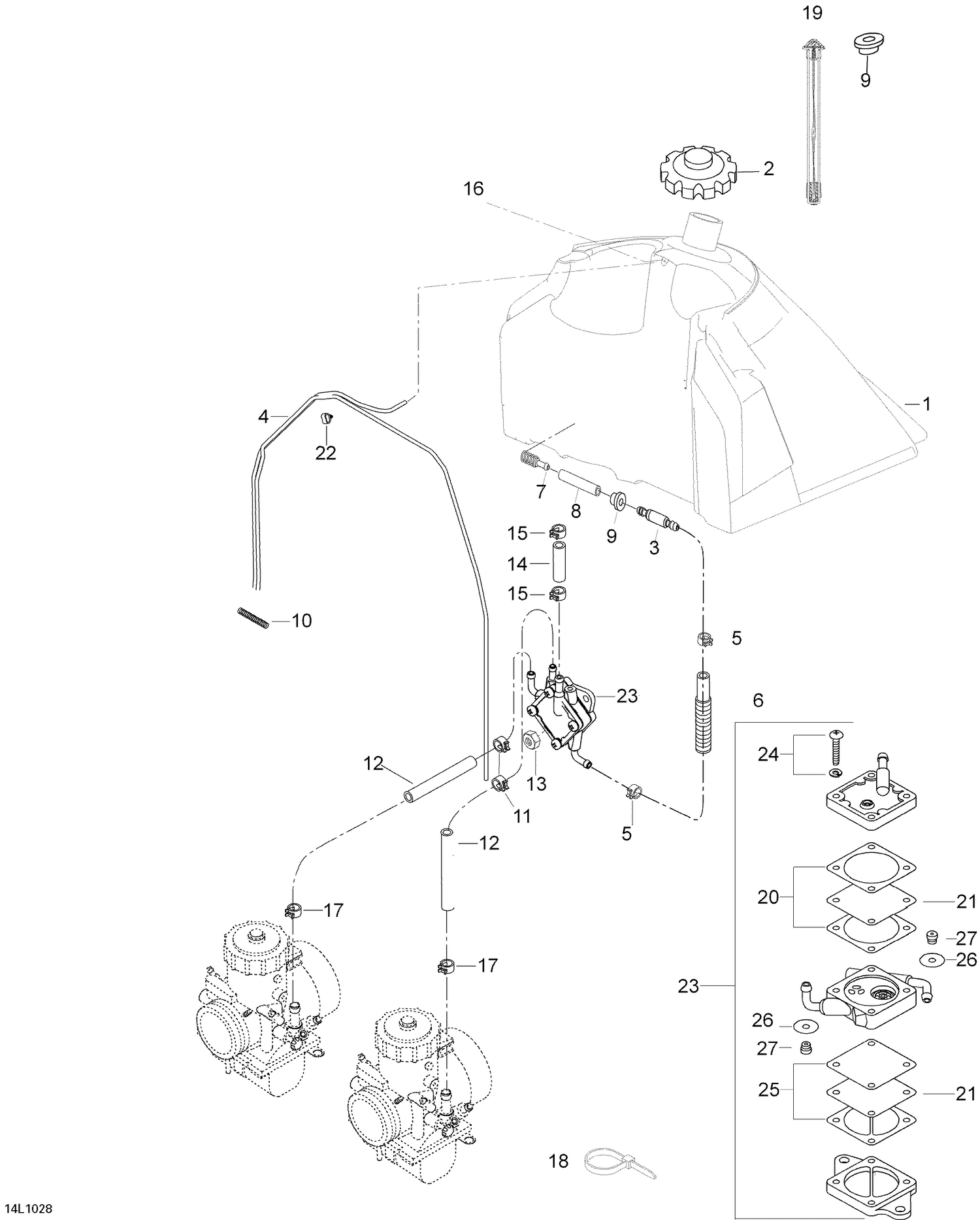

| Ref | Part Number | Description |
|---|
| 1 |
605154804 |
FUEL TANK - Call your local BRP dealership |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 3 |
414872700 |
Male Connector |
| 4 |
M39035 |
HOSE - Call your local BRP dealership |
| 5 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 6 |
219704355 |
TUBING 1000MM LONG - Call your local BRP dealership |
| 7 |
414872100 |
Fuel Filter Strainer |
| 8 |
219704391 |
Polyurethane Hose 1000mm Long This part replaces 513033332. |
| 9 |
707800347 |
Grommet This part replaces 570273900. |
| 10 |
M25003 |
SPRING - Call your local BRP dealership |
| 11 |
513033029 |
Universal Spring Clamp |
| 12 |
513033035 |
HOSE - Call your local BRP dealership |
| 13 |
232561414 |
Elastic Stop Nut M6 |
| 14 |
605355647 |
Hose 1/4, 350 mm |
| 15 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 16 |
404127600 |
NIPPLE - Call your local BRP dealership |
| 17 |
414415200 |
Spring Clamp |
| 18 |
414115200 |
Tie-Rap 180 mm |
| 19 |
605351982 |
FUEL GAUGE - Call your local BRP dealership |
| 20 |
Not |
Available As Spare Part - Gasket |
| 21 |
Not |
Available As Spare Part - Diaphragm |
| 22 |
707800347 |
Grommet This part replaces 570273900. |
| 23 |
M19113 |
Fuel Pump |
| 24 |
Not |
Available As Spare Part - Screw |
| 25 |
Not |
Available As Spare Part - Gasket |
| 26 |
Not |
Available As Spare Part - Grommet |
