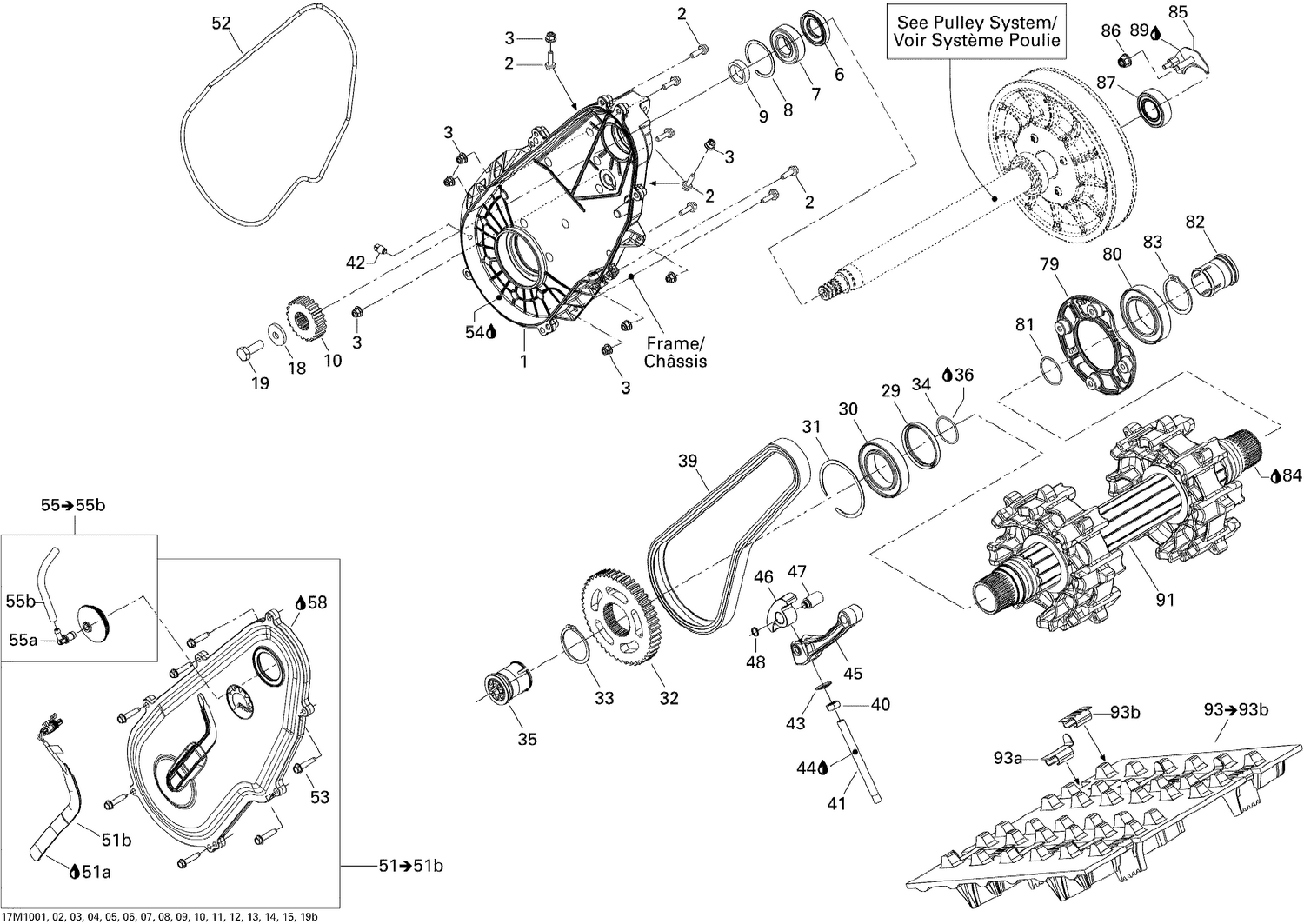

05- Drive System 600HO ETEC
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504152942 | Chaincase |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 3 | 233261434 | Flange Elastic Nut M6 |
| 6 | 293200158 | Oil Seal This part replaces 415049300. |
| 7 | 293350115 | Ball Bearing This part replaces 293350055. |
| 8 | 504152576 | Circlip |
| 9 | 504152628 | Shim |
| 18 | 504152784 | Spring Washer M10 |
| 19 | 207103044 | Hex. Screw M10 X 30 |
| 29 | 293200159 | Oil Seal This part replaces 504152571. |
| 30 | 293350059 | Ball Bearing This part replaces 504152573. |
| 31 | 504152582 | Circlip |
| 32 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 33 | 504152572 | Circlip |
| 34 | 293300122 | O-Ring |
| 35 | 504152619 | Magnetic Cap |
| 36 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 40 | 232006414 | Hex. Nut M10 X 1.5 |
| 41 | 504152602 | Adjustment Screw |
| 42 | 504152636 | Magnetic Plug 1/8 - 27 NPTF |
| 43 | 250200100 | Bonded Washer |
| 44 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 45 | 504153429 | Tensioner chain This part replaces 504152685. |
| 46 | 504152739 | Slider Chain |
| 47 | 504152841 | Tensioner Axle |
| 48 | 504152282 | Circlip |
| 51 | 504153147 | Chaincase Cover Ass'y This part replaces 504152922. |
| 51a | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml |
| 51b | 504152896 | Rotation Sensor |
| 52 | 293300130 | Tight Seal |
| 53 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 |
| 54 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 55 | 504152860 | Cap |
| 55a | 414580700 | Male Connector |
| 55b | 219704410 | Polyurethane Hose 10000Mm Long |
| 58 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 79 | 504153886 | Retaining Ring This part replaces 504152949. |
| 80 | 293350059 | Ball Bearing |
| 81 | 293300122 | O-Ring |
| 82 | 504152619 | Magnetic Cap |
| 83 | 504152572 | Circlip |
| 84 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 85 | 504153418 | Bearing Housing Ass'y This part replaces 504152974. |
| 86 | 233281414 | Hex. Flange Elastic Nut M8 |
| 87 | 293350074 | Ball Bearing |
| 89 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 91 | 504154054 | Drive Axle Ass'y This part replaces 415129446. |
| 93 | 504152606 | Track Ass'y 15"X120"X1.2RS" |
| 93a | 415129528 | Track Guide This part replaces 504152410. |
